A tool to design networks in entertainment venues
Andrew Barron
2024
Computer networks are increasingly used in entertainment
venues such as theatres, concert halls, and arenas as the main way to
distribute lighting control data, sound, and video around the space. Compared
to traditional approaches, networks allow for greater redundancy, higher data
throughput with smaller and lighter cables, and less equipment being toured
around the country.
However, these networks are a drastically different way of
thinking compared to what the industry has been used to for the last many
decades where point-to-point links were the only option.
This project developed a design tool for planning IP
networks to be used in this context. The tool includes data about specific
hardware products and software protocols from the industry and allows the user
to put these entities together to create a system. Using information from
specification documents and real-world measurements, the tool validates the
configuration giving the technician confidence that their plan will work when
deployed. The target users for this tool are experienced event technicians and
designers who are unfamiliar with computer networking concepts, so the tool
presents information in a way which is accessible to these people, enabling
them to learn while they work. The requirement specification and project evaluation
included input from real users, who reported that the project made them feel
more positive about using networks in their work.
I declare that the material submitted for assessment is my
own work except where credit is explicitly given to others by citation or
acknowledgement. This work was performed during the current academic year
except where otherwise stated.
The main text of this project report is 18,729 words long.
In submitting this project report to the University of St
Andrews, I give permission for it to be made available for use in accordance
with the regulations of the University Library. I also give permission for the
title and abstract to be published and for copies of the report to be made and
supplied at cost to any bona fide library or research worker, and to be made
available on the World Wide Web. I retain the copyright in this work.
A tool to design networks in entertainment venues by Andrew Barron is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International
.
1 Abstract 2
2 Declaration. 3
3 Contents. 4
4 Introduction. 6
5 Context
survey. 8
5.1 Common protocols and hardware. 8
5.1.1 Lighting control 8
5.1.2 Sound. 10
5.1.3 Video. 12
5.1.4 Other control data. 12
5.2 Why change to IP?. 12
5.3 The transition to IP. 13
5.4 Protocols 14
5.4.1 Unreliable networks in a mission-critical application. 15
5.5 Current tools 16
6 Ethics. 17
7 Software
engineering process. 18
8 Requirements. 20
8.1 Project objectives 20
8.2 Stakeholders 20
8.3 Functional and non-functional
requirements 20
8.3.1 Functional requirements 21
8.3.2 Non-functional requirements 21
8.4 Requirements survey. 21
8.5 Personas 26
9 Measurement
and data collection. 29
9.1 Methodology. 29
9.2 Results and analysis 32
9.2.1 Art-Net 32
9.2.2 sACN. 34
9.2.3 Dante. 35
9.2.4 NDI and NDI-HX. 38
9.3 Measurement conclusion. 40
10 Design. 41
10.1 Nielsen’s usability heuristics 41
10.2 Health and safety consequences 45
10.3 Database 45
10.4 Data management 48
10.5 Homepage. 49
10.6 Network design interface 51
10.7 User onboarding. 55
10.8 Design wizard. 56
10.9 File management 58
11 Implementation. 59
11.1 Libraries and frameworks 59
11.2 Database: data layer 60
11.3 Frontend: application and
presentation layers 61
12 Evaluation
and critical appraisal 64
12.1 Meeting project requirements 64
12.1.1 Primary objectives 64
12.1.2 Secondary objectives 65
12.1.3 Functional requirements 66
12.1.4 Non-functional requirements 66
12.2 User evaluation. 67
12.2.1 Respondent demographics 67
12.2.2 Sentiment and confidence 67
12.2.3 Qualitative responses 68
13 Future
work. 71
14 Conclusion. 72
15 Bibliography. 73
16 Appendix:
Ethics approval 76
17 Appendix:
Requirements survey. 78
18 Appendix:
Evaluation questionnaire. 80
19 Appendix:
Application tour. 82
20 Appendix:
Screenshots of application. 86
21 Appendix:
Database schema. 96
22 Appendix:
Testing summary. 98
22.1 Map and reports 98
22.2 Design validation. 105
23 Appendix:
Conformance to ISO 9241-210:2019. 109
23.1 Table B.10[31] —
Checklist for assessing applicability and conformity with
ISO 9241-210:2019. 109
Across the live events industry – theatres, concert halls,
night clubs, installations, and even corporate AV – a shift is happening. For
years, lighting control data, audio feeds, and video content have moved around
venues using basic analogue signals or point-to-point digital data transmission.
Now, though, to support the ever-increasing scale of events and the need for
greater flexibility in systems, IP networks are replacing these simple signals
and becoming a critical part of venue infrastructure. This transition comes
with a range of benefits: old analogue solutions tend to require one cable for
every data channel and some existing point-to-point digital systems meet their
limit around 48 channels, whereas computer networks are theoretically unlimited
in their scale. Computer networks can be built atop widely available commodity
hardware, offering flexible solutions and helping to reduce cost and increase
accessibility. Because of the large bandwidth available, different departments
can share infrastructure, again reducing cost and setup time.
To achieve these benefits though, you first need to set up a
computer network – which for users unfamiliar with networking concepts, is
easier said than done. Ask on a discussion forum about technicians’ experience
with networks, and while you will find a fair number of evangelists, you will
also hear horror stories where incorrect network configuration caused big
problems for someone’s event and they have felt uneasy about networking ever
since. As computer science concepts become more and more integrated into
everyday life, computer scientists are faced with new user experience design
challenges in order to make these technologies accessible to a broader
audience, and entertainment network design is no different. This project aims
to address this challenge.
The objectives of this project are to compile an extendible
data set of entertainment equipment which relies of computer networks by
measuring device performance in representative configurations. This data will
be used to produce a tool aimed at technicians who are experienced in their
field but new to computer networking. The tool will support them in planning
networks through helping them identify requirements and start their design
using a wizard, and validate their configuration is functional through a set of
automated checks. The tool will also allow them to save and share plans with
others. Since the target audience is networking novices, careful design is
required to ensure the tool helps these users and inspires confidence.
To meet these objectives, a human-centred design approach
was used. The author of this project works and volunteers in the entertainment
industry, so using this experience along with formal consultation with colleagues
within the University, a requirement specification was drawn up to inform the
work. From here, a software tool was designed and developed, then these same
technicians were asked to evaluate the artefact. The evaluation showed the
project objectives were met and forms a strong foundation for future work and
interaction with users.
This report is quite extensive due to the broad range of
activities which made up the project, including measurement, interaction with
real users, and software development. It is written with enough detail to be
understandable by a computer science undergraduate without entertainment
industry experience, and for another future project to carry the work on based
on the evaluation and feedback received. We first explore the history of
lighting control, sound transmission, and video transmission in venues, assessing
protocol specification documents and the (somewhat limited) existing literature
in the field about the transition to network-based approaches (section 5).
After explaining the ethical implications of the project (section 6),
we more formally define the software engineering process used and explain how
user feedback informs the system design by complying with ISO 9241-210:2019
(section 7). Following the guidance in the standard, the project requirements
are defined (section 8) including analysing the results of the requirements
elicitation questionnaire completed by real users. Next, a measurement
procedure is carried out where the network usage of different entertainment
equipment is characterised (section 9) before the tool is designed (section 10) and implemented (section 11). Through another questionnaire shared with real
users, the tool is evaluated against the project objectives (section 12), before suggestions of future work are made based on the findings of this project
and the results of the evaluation (section 13).
The traditional approach to moving data around venues
usually involves digital serial connections or plain analogue signals. This
context survey briefly summarises the kinds of data which needs to be moved
around a venue, highlighting the traditional non-networked approach and an
IP-based replacement. We then assess why it is worth making the change to an
IP-based approach, and explore some of the challenges of the transition. Next,
some of the IP protocols discussed in this project are explored in more detail,
followed by a look at some current tools in the industry similar to the one we
aim to develop.
DMX-512 (usually abbreviated to DMX) is a standard for
sending digital data and is primarily used for controlling lights[18].
It is an eight-bit serial protocol where each packet contains 513 slots. The
first slot is a start code. The other 512 slots are data: each slot is known as
an address to which some value is sent. Fixtures are ‘daisy-chained’ together
using 5-pin XLR cable (known as DMX cable) to form a line, and each fixture
responds to instructions at one or more addresses in the packet. Each group of
512 addresses is known as a universe; one universe is transmitted along each
DMX cable.

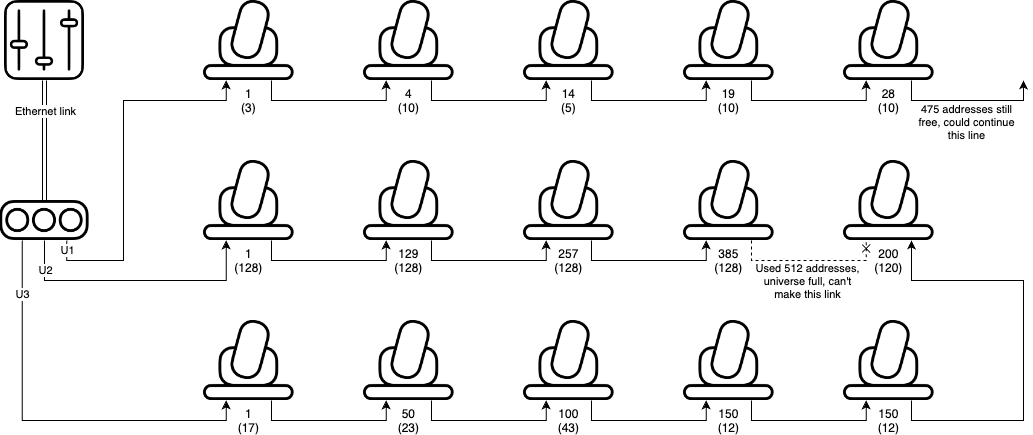

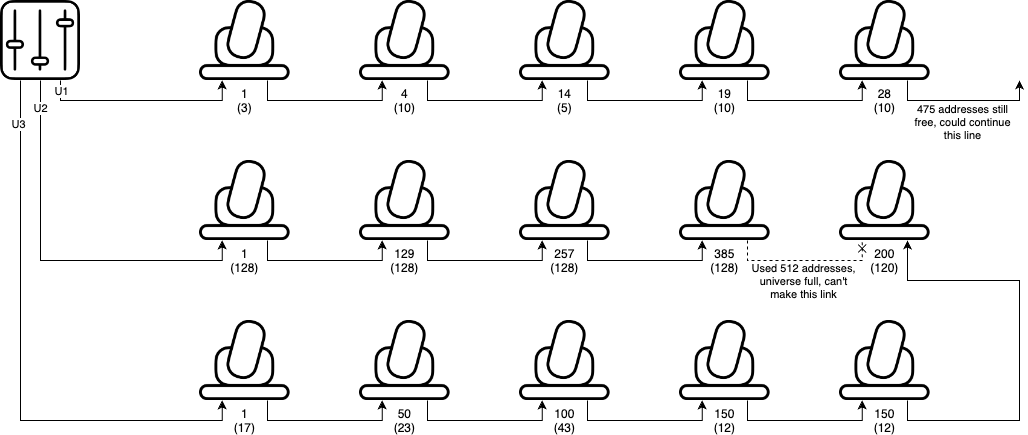

In Figure 1, we see an example configuration of traditional
lighting control. Three cables run from the controller, each carrying one
universe of data (U1, U2, and U3). Underneath each fixture, the device’s start
address is listed followed by its footprint in brackets. The top left fixture
has start address 1 and a footprint of 3, which means it is controlled by three
sequential addresses starting from 1. For example, DMX address 1 could
represent red light intensity, address 2 as the green light intensity, and address
3 as the blue light intensity, allowing colour mixing. The next fixture in the
line starts reading from address 4 and has a footprint of 10 (perhaps using
additional parameters for motor movements or other effects), and so on down the
line.
The second row of fixtures have much larger footprints, so
we fill the 512 available addresses with only four fixtures (compared to
universe 1, where after 5 fixtures there were still a further 475 addresses
available). With modern fixtures which have a wide variety of effects, it is
not uncommon for a single fixture to require hundreds of addresses.
Start addresses do not have to be sequential nor unique: we
see this in universe 3 where each start address starts at a round number. This
leaves gaps in the address space, but makes remembering addresses easier. We
also see the two fixtures in the bottom right of the figure share an address,
so they cannot be controlled individually.
Figure 1: An example lighting
control configuration using traditional DMX-512 only. The desk sends three
universes of data on three cables. Each fixture's start address is written
below the fixture and the footprint in brackets.
DMX was borne out of a time where each fixture used exactly
1 address — light intensity — so one universe would control up to 512 lights.
As shown, this is no longer true with modern fixtures, so large events will
need multiple universes.
It would be unwieldy to require a cable for every universe
from the desk to each group of lights across the venue, and most control desks
don’t have enough 5-pin outputs to send data for every universe which needs to
be controlled. IP offers a solution. Art-Net[3]
and sACN[8]
are the two leading standards in this area, and both serve to transmit DMX data
over a network from controller to fixtures. Some very modern fixtures can take
Art-Net and sACN signals in directly, but generally devices known as “nodes”
act as breakout boxes to convert the IP data into traditional DMX-512.
Figure 2: An example lighting
control configuration where the control desk sends lighting data over IP to a
node, which can be located closer to the fixtures and result in fewer long
cables needing to be run across the room.
In Figure 2, we add a DMX node between the control desk and
the first fixture in each universe. This node can be located physically near
the fixtures – perhaps near the stage power supplies – so the three DMX cables
to the first fixture of each universe can be short, and a single long Ethernet
cable can run from the control desk to the node. It also allows us more 5-pin
DMX outputs than may be built into the control desk.
Analogue audio is usually transmitted as a balanced signal
over a 3-pin XLR cable. The main limitation here is that each cable can only
carry one audio signal. There can often be more than thirty microphones on
stage and eight or more audio mixes being made at the control position at the
back of the auditorium, meaning lots of cables needing to be laid between the
stage and control desk.

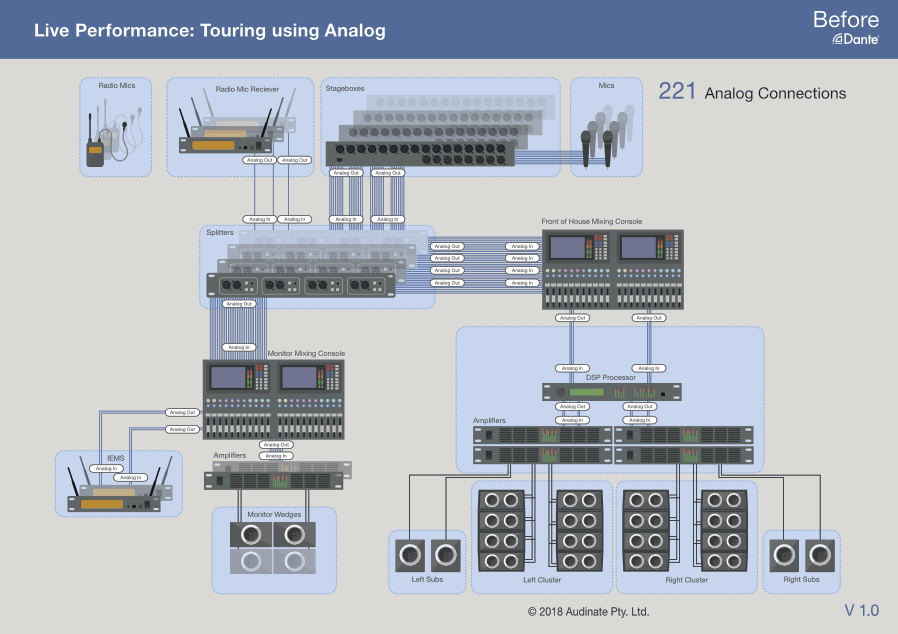

Figure 3: From [4],
an example analogue audio configuration for a touring band including wireless
and wired inputs, monitoring, and front of house sound.
Figure 3 shows an example sound configuration for a touring
band. It shows a
plan including a variety of microphones being split between a front of house
mixing console (for the audience to hear) and a monitor mixing console (for the
artists on stage to hear themselves) plus the various speakers and outputs
required, coming to a total of 221 analogue connections to be made.
Figure 4: A 32-channel (24
inputs, 8 outputs) multicore cable. The box would be placed on the stage, the
'tails' are plugged into the mixing desk.
It is unlikely this configuration would be realised using
221 XLR cables: instead, you would use multicore cables or “snakes” (Figure 4), which enclose multiple XLR cables in a single jacket. While this may
reduce the number of long cable runs, multicore cable can weigh more than a
kilo per metre so could be just as annoying and time-consuming to lay out.

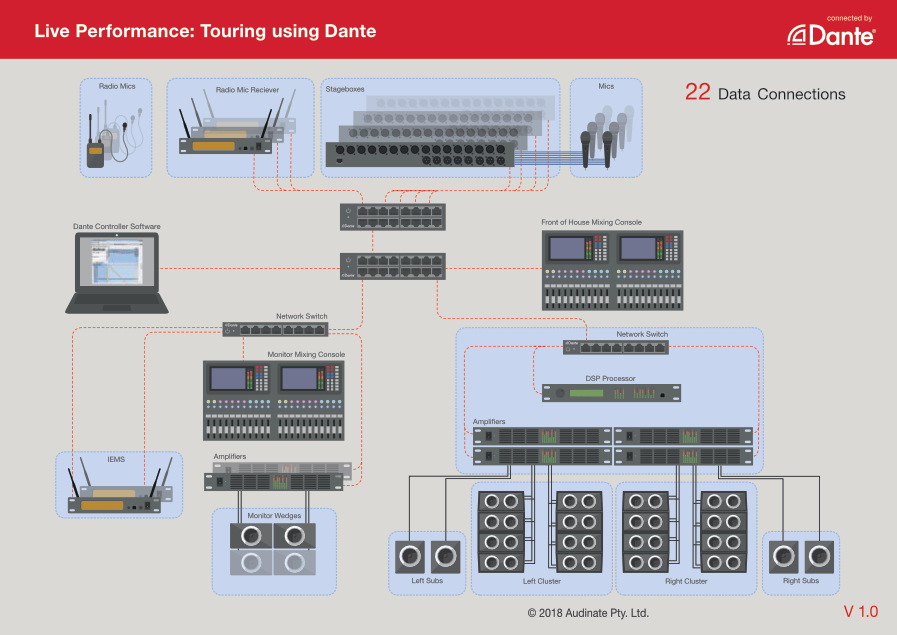

Figure 5: Using Dante, the
number of analogue link cables is reduced compared to Figure 3. From [4].
Figure 5 goes on to show an IP-based configuration using
Dante[24].
Dante is a proprietary audio-over-IP solution by Audinate, which has expanded
to also support video. Dante is installed in devices by manufacturers who
licence the appropriate hardware from Audinate. Offering up to 512 channels of
audio in each direction on a single gigabit Ethernet link[20],
the example tour would require only 22 data connections compared to 221. When
you also consider how much more lightweight a Category 6 cable is compared to a
multicore, the difference becomes clear.
Like audio, the traditional approaches for production video
use one cable for one feed. SDI (serial digital interface, using BNC cables) or
HDMI are two common options.
NDI is an IP-based solution currently on the market[23].
Like Dante, it is a proprietary solution which can be licensed by manufacturers
to add NDI functionality to their hardware. The system offers one-to-many video
distribution with latency of less than 100ms, making it suitable for many
broadcast and live scenarios.
Many control consoles offer a remote control functionality
through the use of an app[1]
or programmable API[19].
These are popular as a convenience: where your control desk may need to be in a
poor location for practical reasons, you can use the remote control from a
tablet computer to move around and fine-tune designs and programming from other
vantage points. Some ultra-compact equipment takes this further, omitting the
screen and control functionality from the hardware and requiring the use of a
tablet to remote control the unit[13].
APIs allow consoles to be included as part of automated procedures – for
example, a sequence of events could run across all lighting, sound, and video
systems in the event of an evacuation.
The two leading standards for this are MIDI Show Control[25]
and OSC[21].
MIDI (Musical Instrument Digital Interface) was initially designed for things
like electronic keyboards to communicate with computers for recording and
playback. Now, it has been adapted for use in a variety of remote control
interfaces over the original MIDI cable, or more commonly USB or the network.
OSC (Open Sound Control) uses URI-style commands to send instructions to a
receiver, making it more flexible and easier for humans to understand compared
to MIDI notes, but requiring more processing on embedded hardware.
“Converged networking” is the popular term for all technical
departments in the theatre sharing a single network for their infrastructure,
but other than sales material, there is not a single list of benefits to this
approach. Based on industry experience and the work done during this project, the
key benefits of switching from traditional approaches to converged networking
include:
·
Fewer, smaller, easier-to-manage cable runs. Enormous
multicores or tens of cables running to the same location can be replaced by a
single Ethernet cable. In many cases, even running two Ethernet cables to form
a redundant link is still significantly lighter than the alternative. These
cable runs also have a much larger bandwidth than analogue alternatives,
allowing (for example) multiple high-definition video feeds to be sent over a
single small connection.
·
Shared infrastructure reduces setup time and project cost.
Traditionally, most departments would need dedicated cabling between the
control area at the back of the auditorium and key locations around the venue
(the stage, flying areas above the stage, etc). With IP, departments can share
a single Ethernet cable between switches at each end, and each department can
still have some level of isolation from the others using VLANs.
·
More flexible topology. Devices can be added to the
network anywhere you deploy a switch, instead of always requiring another
direct point-to-point cable run, and the flow of data is controlled in
software. It becomes practical to move control desks into the centre of the
auditorium during rehearsals to improve visibility to the stage and then move
them to the back of the room for the shows, since you only need a single
Ethernet cable to connect to everything in the venue. There is also the
opportunity to send data in a one-to-many fashion without dedicated splitter
hardware.
·
Wireless connectivity. While usually not recommended for
show-critical applications, having wireless access to video feeds or control
systems can help with troubleshooting and system tuning.
Event technicians tend not to be computer scientists, and
thus do not usually have a strong background in designing, deploying, and
managing computer networks.
Networks are often built piecemeal: an Ethernet cable is run
between the lighting console and an sACN node, because more DMX addresses were
needed. A second-hand broadband hub is connected to the sound console when
someone wants to remote control it over Wi-Fi, and later a laptop is plugged in
to record a show using Dante. A bigger switch is found in a cupboard and added
to the setup, to make it easier to connect a stage box on stage. This approach
is fine, but results in multiple isolated networks, issues with allocating
addresses correctly, use of equipment which isn’t an appropriate specification
for the purpose, and misses out on a lot of the convenience and benefits of
true converged networking.
There is limited existing academic research on this topic
since it is somewhat niche to the industry and often revolves around
proprietary technologies. There is also a lack of comprehensive training to
help technicians gain a better understanding of core networking concepts. Some
courses – such as the Dante certification programme – include modules on IP
addressing, VLANs, TCP, and similar concepts[26],
but really are an introduction to the company’s own proprietary tooling and
product-specific terminology. Some books have been written on the topic[10,
17], but may still be too complex for technicians to understand. Attending
dedicated training takes time, which is often in short supply: 90% of workers
in the industry are freelancers[22],
so if these people are not working, they’re not making money. This can make it
hard to dedicate time to training, so on-the-job education can be preferable.
Particularly in the sound department, there are a variety of
data transfer systems which happen to use Ethernet cabling, but not IP. AES50[6]
sits at layer 1 in the OSI model, using Ethernet cabling due to its ubiquity,
but not the Ethernet frame structure or media access control features. Audio
Video Bridging (AVB)[16]
comprises a collection of IEEE standards and sits at layer 2, transporting data
in standard Ethernet packets and therefore can use standard Ethernet hubs and
switches.
We, however, are primarily interested in standards which sit
at layer 3 or higher. Just like on the Internet, most layer 3 traffic uses IP
combined with layer 4 protocols like UDP or RTP. AVB can be configured to work
in this way instead of at layer 2. Other layer 3 standards include AES67[7],
Dante[24],
Art-Net[3],
sACN[8],
and NDI[23].
The diversity of protocols at layer 3 – encompassing the
transport of lighting control data, sound, and video – is what enables
converged networking and is why we focus on layer 3 and higher in this project.
Because these systems share many core technologies with standard computer
networks, we can create entertainment networks with off-the-shelf switches and
cabling: the hardware is readily available so easy to get started with.
However, this introduces one of the challenges of venues’ transition to IP: commodity
hardware varies widely in its feature set, quality, age, and reliability, and
usually in ways subtle enough that it is not obvious why a problem is
happening. One of the aims of the tool we build in this project is to indicate
these subtle issues early.
Some protocols, like Art-Net, perform much of their core
functionality by acting as as a wrapper around the original serial protocol (Figure 6). Others, like those focussed on audio and video, are technically much
different to their traditional analogue counterparts: for example, Dante
requires an analogue signal from a microphone to be digitised, then it packages
up four audio channels into one packet for transmission and uses PTP to
synchronise audio playback across the many potential devices in a system. Dante
also uses the differentiated services code point in its packets to ensure that
real-time audio and clocking data are appropriately prioritised across the
network.
0 1 2 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| ID | OpCode | ProtVerHi |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| ProtVerLo | Sequence | Physical | SubUni |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Net | LengthHi | Length | |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ +
| |
… Data …
| |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
Figure 6: The packet structure
for the ArtDmx packet in Art-Net is an array of serial DMX data preceded by
some protocol management information and the universe number the DMX data
refers to.
While there is a diversity of protocols available, there
tends to only be one or two options for each type of data transfer. Those few
options though tend to be well-supported – it is generally assumed that every
digital lighting control console will support both sACN and Art-Net, and
Dante’s website boasts its availability in “over 3,800 products from more than
550 manufacturers”[24].
This means there is a wide variety of hardware ready to be included in these
converged networks, so finding suitable and compatible equipment for most
applications should be possible.
Converged networking makes the network a single point of
failure for a venue’s operation. It is therefore interesting that UDP is a
common choice of transport layer protocol, given it (and IP below it) are
unreliable technologies.
When choosing a transport layer protocol, deciding between
TCP and UDP usually comes down to whether reliable transfer or fast transfer is
more important.
In lighting, because of the serial origins of the DMX
protocol, each DMX packet contains a complete universe of data and is
rebroadcast regularly (at least once per second, but usually much more often
than that). This would suggest that a dropped packet every so often does not
matter so much, since the same data will be sent again very soon and probably
arrive before a negotiated retransmitted packet would. In this case, the
overhead of TCP is probably not worth it, so UDP is a natural choice.
In sound and video, it is difficult at first glance to
prioritise reliable transfer or low latency. Dropped packets would result in
broken-up playback, which would be incredibly disruptive to a live performance.
High latency would result in out-of-sync playback of sound effects and video,
or out-of-sync action on stage and amplification – possibly equally disruptive
to the show. These protocols’ use of UDP and clocking systems like PTP suggests
that they prioritise low latency, and that they assume the network they run on
is reliable. Ensuring this reliability (particularly when using heterogeneous
commodity networking hardware as mentioned previously) is a challenge, and
one which this tool aims to help with.
Audio-over-IP protocol Dante includes an interesting feature
when exploring the use of unreliable networks. The Dante Controller software
shows a histogram of packet delivery time for all transmitters, which highlights
how it relies on PTP to synchronise packet delivery when the network can add
such variability and unreliability to delivery time.
Outside the entertainment industry, various major equipment
manufacturers offer network design and modelling tools[27].
These are simply far too complicated for the average theatre technician without
a computer science background to understand, and are not tailored to the
industry — they are for enterprise system administrators.
Luminex manufacture a line of entertainment-specific network
switches called GigaCore[28],
and offer a design tool targeted at the industry named Araneo[29].
You can add switches and other equipment to a project, and the tool will
perform some basic checks for configuration consistency and allow you to push
your planned configuration to their devices. A primary limitation of this tool
is the fact it is maintained by a manufacturer, so is not particularly
compatible with heterogeneous environments comprising a variety of network
switches and other equipment from lots of manufacturers. Additionally, the tool
assumes a basic knowledge of networking concepts, which is not always the case.
CAD applications like Vectorworks have entertainment add ons[30]
which add industry-specific features like load calculations, lighting fixture
address management, and so on, but none have strong features for planning
networks configurations or even IP addresses.
A design tool which truly supports the heterogeneity of many
small-to-medium scale or piecemeal entertainment networks (such as the one we
propose here) would best be built in an academic or community setting, because
there is little commercial benefit to its production for any single equipment
manufacturer.
Ethical approval was initially sought for a single
questionnaire, which comprised a user requirements survey followed by an
evaluation of the developed tool. This structure was used to simplify the
ethical approval process, due to the tight timescales of this project. This
questionnaire was approved.
As the project progressed, the focus shifted away from
system design and more towards how people interact with the system. This led to
an amendment being requested to split the single questionnaire into two: first
asking about user requirements, then later asking for users to evaluate the
project. This would provide some real user requirement information earlier in the
development cycle so it could feed into the design and implementation process,
instead of only the evaluation. This amendment was also approved.

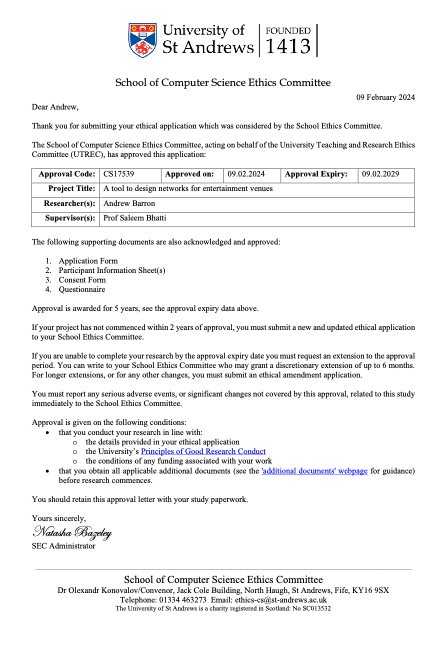

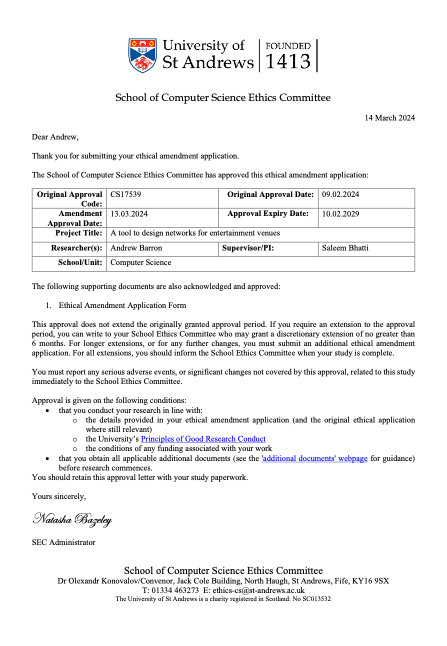

The ethical approval document and amendment are included in section
16.
A human-centred (or user-centred) approach as described in ISO
9241-210:2019[31]
drove this project, because its benefits map closely our objectives – namely,
improving accessibility of information and supporting technicians to use
networks to their fullest potential. The standard suggests the following
benefits can be found:
“Systems designed using human-centred methods improve overall
quality, for example, by:
a) increasing the
productivity of users and the operational efficiency of organizations;
b) being easier to
understand and use, thus reducing training and support costs;
c) increasing
usability (effectiveness, efficiency and satisfaction)
d) increasing
accessibility (for people from a population with the widest range of user
needs, characteristics and capabilities);
e) improving user
experience;
f) reducing
discomfort and stress;
g) providing a
competitive advantage, for example by improving brand image;
h) contributing
towards sustainability objectives.”[31]
Points (a), (e) and (f) form the motivation for starting
this project, while points (b) and (c) are part of the project objectives and
non-functional requirements outlined in section 8 below. The remaining points,
while perhaps not explicitly in scope, are certainly not bad outcomes to pursue
and can only help to improve the quality of software produced. Indeed, they would
probably be included in the objectives of a larger project.
Poor usability risks missing a key project objective and
mis-advising users, resulting in incorrect systems being installed. This would
result in disruption to events and may discourage people from using computer
networks at all in this application. A human-centred approach improves
usability, and thus reduces these risks. That said, the structure described in
the ISO document is not entirely applicable to this development environment:
this is an individual project where time is limited. Recognising this, some of
the standard requirements and recommendations are not applicable, as outlined in
section 23.
Human-centred design is built atop four activities, which
are outlined in Table 1, along with the methods used to carry out those
activities in this project. These activities are integrated with system
development by following an agile-inspired approach, tightly coupling design
and implementation so the output of the planning activities remained front of
mind and could feed into frequent iteration and improvement.
|
Activity
|
Methods
|
|
Understanding and specifying the context of use
|
·
Section 5, Context survey
·
Section 8.2, Stakeholders
·
Section 8.4, Requirements survey
·
Section 8.5, Personas
|
|
Specifying the user requirements
|
·
Section 8.1, Project objectives
·
Section 8.4, Requirements survey
·
Section 8.3, Functional and non-functional requirements
|
|
Producing design solutions
|
·
Section 10, Design
|
|
Evaluating the design
|
·
Section 12, Evaluation and critical appraisal
|
Table 1: Activities of
human-centred design and the methods used to do those activities in this
project.
Initially, a more traditional waterfall development approach
was trialled, but this was quickly scrapped as when working individually and on
a short timescale it became hard to follow the principles of human-centred
design – namely, trying to refine designs based on experience using the
application and understand how users would interact with the system as a whole.
The functional requirements in section 8.3.1
later are listed in a numerical order because they each build on top of each
other. So, after creating a basic application framework and structure, one
functional requirement was focussed on at a time in order, building on previous
work and leaving clear expansion points which would be required for future
development. This means a working version of the software was always available
– even if some methods or buttons would result in a logged message rather than
an action until a certain feature was implemented.
The application is sorted into components where appropriate,
allowing for code re-use throughout the backend of the application, and
consistency across its frontend UI elements.
A non-functional requirement of the system is that it is
web-based. This resulted in TypeScript being the programming language of choice,
with all dependencies supplying appropriate type signatures and the design tool
adding its own. TypeScript encouraged the use of type-driven development, where
the types act as a sort of test and ensure data passed around the application
is valid. It also allows IDEs to offer intelligent suggestion of different
object field names, which was very useful given the large and complex nature of
the data structures used to represent devices, protocols, and network designs.
The project objectives were specified at the project
proposal stage as part of the DOER and are the foundations of the work being
done. They are mostly described in terms of tasks a user may want to do within
the system. The primary objectives of the project were defined as:
· Database
construction: Create an extendible dataset showing how different hardware
products and software protocols use the network and what they require to work
efficiently.
· Design
tool: Backed by the dataset, create a network design tool. The user will
select their hardware and describe the kinds of data they are transporting, and
the tool will validate their configuration.
· Accessibility
of information: Through an evaluation process involving users in the target
audience, ensure the tool is useful in practice and meets the goal of inspiring
confidence in system design and enabling learning.
The secondary objectives of the project were defined as:
· Extendibility:
Provide mechanisms to add to the dataset of hardware and software, preventing
the tool from becoming outdated. Look at areas where other services could link
into the core tool or plugins could be added.
· Documentation
generation: Based on the user’s design, create deployment paperwork which
can be used in the field to install the system in a venue.

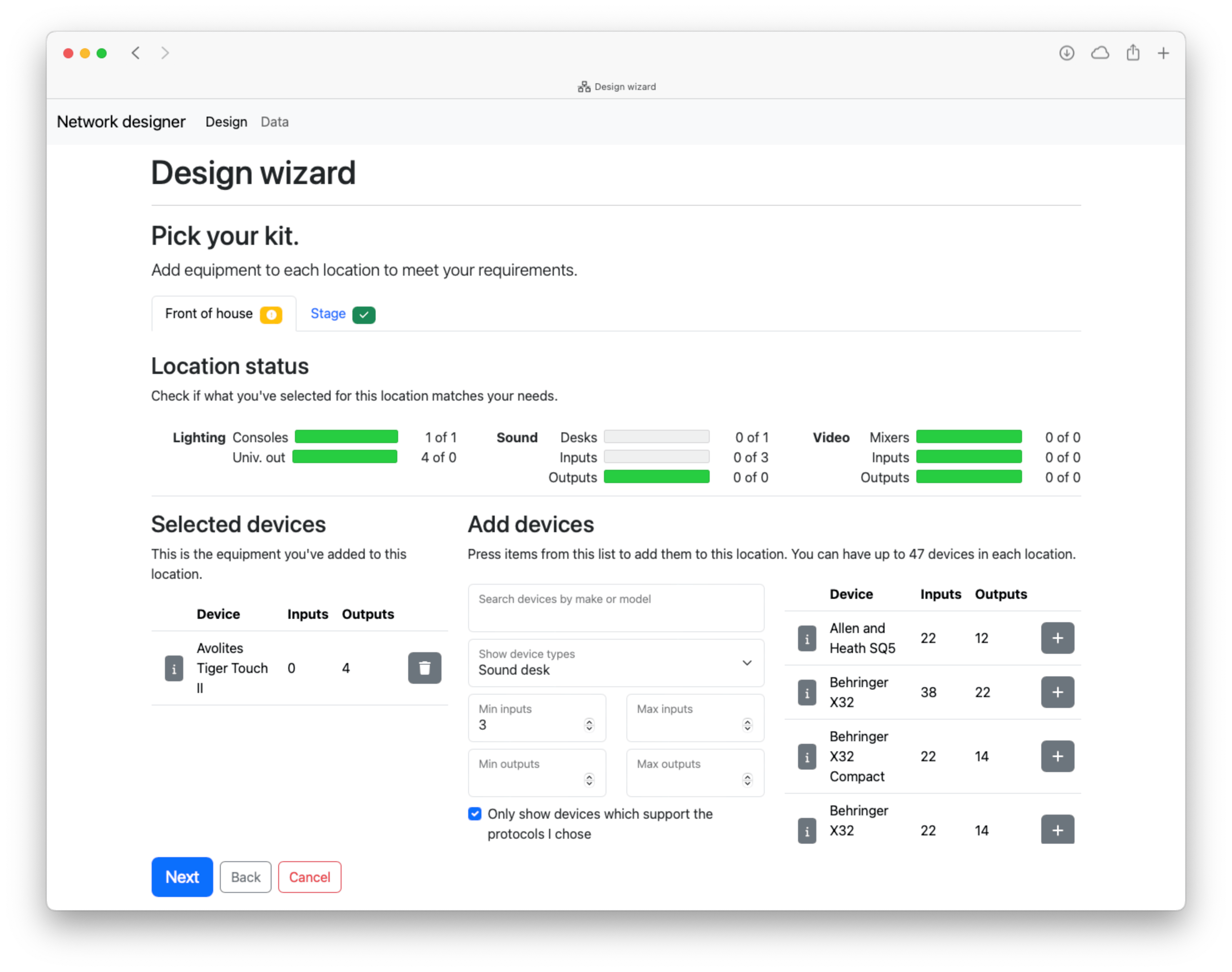

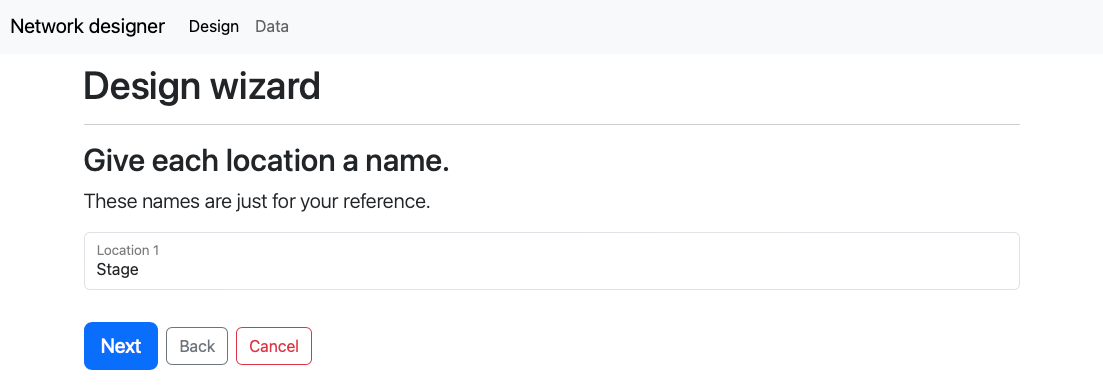

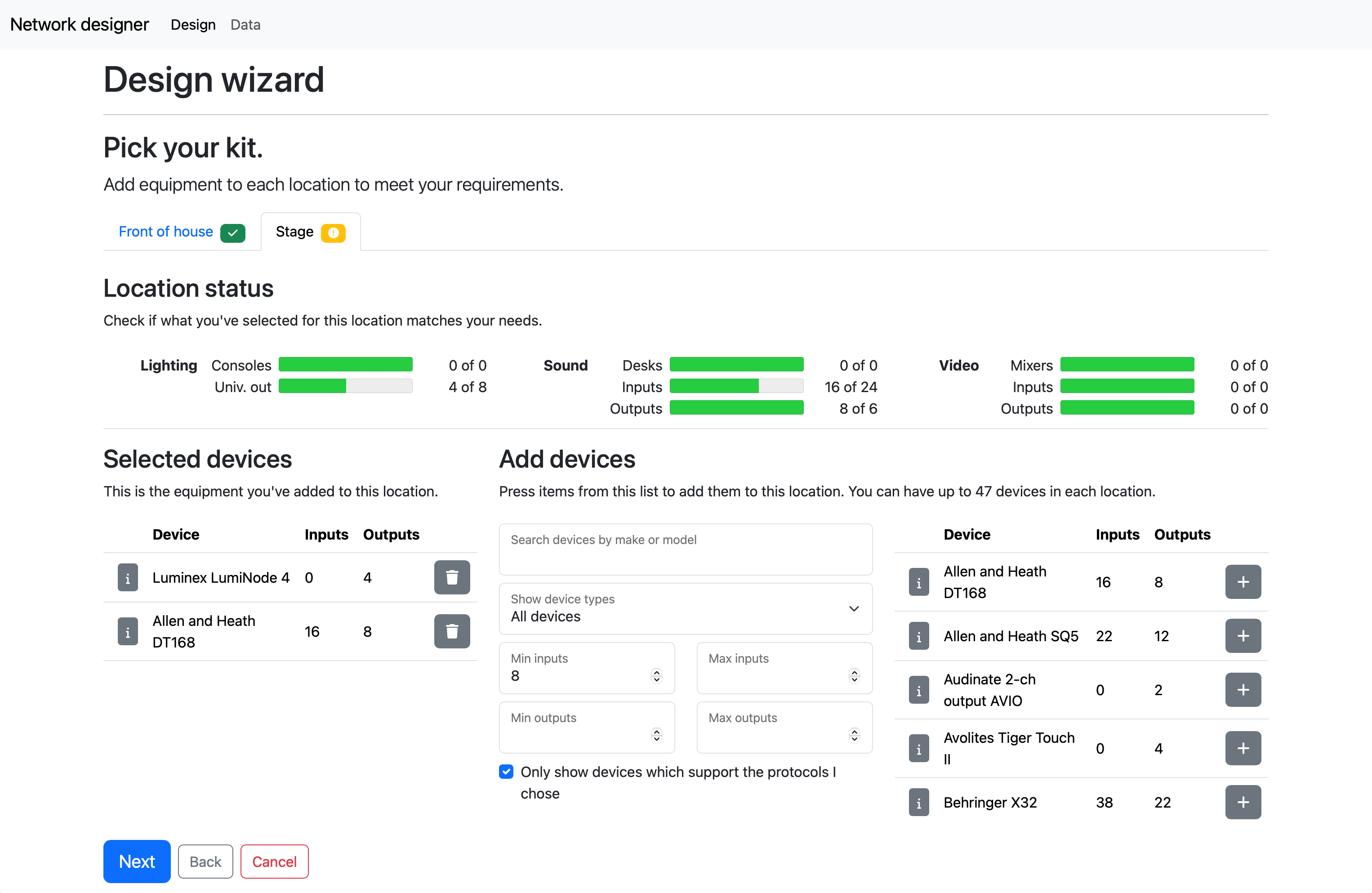

· Design
wizard: Allow the user to specify some broad system requirements, and make
the tool generate a valid network configuration indicating any missing parts.
Considering the project objectives, three stakeholders have
been identified for this platform.
1. Technicians
looking to design, maintain, and implement networks.
2. Manufacturers
and vendors who want their equipment and protocols included in the application.
3. The
administrative team who host and manage the application in production.
Our primary stakeholder is group 1, the technicians, as
these are the users we have access to for requirement elicitation and evaluation.
Future work could involve consulting with users in groups 2 and 3 to establish
their exact requirements for the platform and further develop the system.
After carrying out the context survey above
and getting an improved understanding of the gaps in existing work in the
field, the project objectives were translated into functional and
non-functional requirements. These are stated such that they can map directly
to tests when evaluating the project.
8.3.1
Functional requirements
1. A data
import process must allow metadata about arbitrary hardware and software to be
added to the system.
2. A user
must be able to select hardware and software from the system and add these
entities to a network.
3. A user
must be able to connect network ports on devices to each other to build a
system.
4. The system
must assign appropriate identifiers (addresses, hostnames, etc) to each entity
in the network, and allow the user to customise them so long as the chosen
customisations are valid within the system.
5. Using
entity metadata and the configuration of entities in a network, the system must
indicate potential errors to the user and recommend appropriate solutions (such
as inappropriate configuration settings, etc).
6. The system
must offer plugin hooks allowing it to be extended with additional
functionality created by other developers.
7. In
addition to the editor interface, the tool must generate printable
documentation suitable for distribution to a crew installing the network in a
venue.
8. A user
must be able to freely browse the hardware and software the system knows about,
with the database available as a ‘reference library’ of information.
1. The system
must be a web application, so it can be used across multiple platforms.
2. The system
must assume the user knows nothing about networks, IP, or related technologies.
(It can, however, assume a working knowledge of other venue or
performance-related technologies, for example DMX luminaires and audio
equipment).
3. Users must
be able to operate the system without separate training.
4. When
surveyed, users will report feeling more confident deploying a network in a
venue than they would have done without using the system.
A requirements survey was sent to a group of potential
users. The users were recruited anonymously from within the University of St
Andrews, invited through their work department (University or Students’ Union
technical production) or a relevant student society. This let us reach people
across a reasonable range of experience levels and backgrounds. There were 10
responses to the survey – a small sample size, but a reasonable turnout given
the size of the target audience to begin with. The questionnaire is included in
section 17.
The first part of the questionnaire aimed to enrich the
context of the project by recording technicians’ experience level and
confidence working with computer networks compared to their ‘bread and butter’
work. Responses were received from people with 2-8 years of experience in the
industry (median 5, mean 4.6). All respondents had experience with lighting
with most indicating it as their specialism. The majority of people had
experience with sound, and half had experience with video. Nobody indicated
that video was their specialism (Figure 7, Figure 8).
Figure 7: Respondents' areas of experience.
Figure 8: Respondents'
self-stated specialism.
Figure 9: How regularly
respondents work with computer networks.
Figure 10: The level of control
respondents have over the systems they work with.

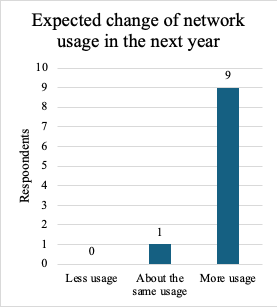

Figure 11: Whether respondents
think they will use networks more, the same amount, or less in the next year.
Half of respondents stated they work with computer networks
all the time (Figure 9), and half also stated they have at least some
responsibility over maintaining an installed system (Figure 10). Only one
respondent regularly sets up systems from scratch, which makes sense given the
survey was distributed to people who primarily work in one or a small number of
venues. Perhaps the tool will give people confidence to build from scratch more
regularly. In response to the question about how regularly the participant uses
networks, one person stated that the use of a network is often transparent to
them. This could be because they work in a venue with a reasonably static core
infrastructure, where the day-to-day operations do not require a lot of
hands-on network management.
The vast majority of respondents think their usage of
computer networks will increase in the next year; nobody expected to use
networks less (Figure 11). This reinforces a key motivation of this project:
that computer networking is becoming more and more important in the industry,
and it is therefore an area worth researching.
Participants were asked to rate their confidence working in
either their indicated specialism or general crew work (depending on whether
they indicated a specialism or not), followed by their confidence setting up
and using computer networks in their work. They rated their confidence on a
sliding scale from -2 to +2 (Figure 12).
|
-2
|
Not confident, I would need lots of help to do tasks in
this area.
|
|
-1
|
|
|
0
|
No experience or not sure.
|
|
+1
|
|
|
+2
|
Very confident, I could do most tasks in this area independently
and help others too.
|
Figure 12: Confidence scale used in requirements survey.
From this, we can take a general sentiment of confidence by
looking at the number of answers above and below 0, and more specific confidence
ratings by comparing the magnitude of the numbers.
Figure 13: Confidence level in
different tasks represented as a box plot. The whiskers are set to the minimum
and maximum values.
Respondents were generally very confident in their main
work, and this was consistent across the group (mean 1.7, median 2, IQR 0.25).
Confidence levels in networking were generally lower and more varied, but
people on average still felt more confident than not (mean 0.6, median 1, IQR
1.25). This is consistent with the other findings from the questionnaire, where
around half of respondents are only occasionally using networks and primarily
operate rather than manage and maintain systems.

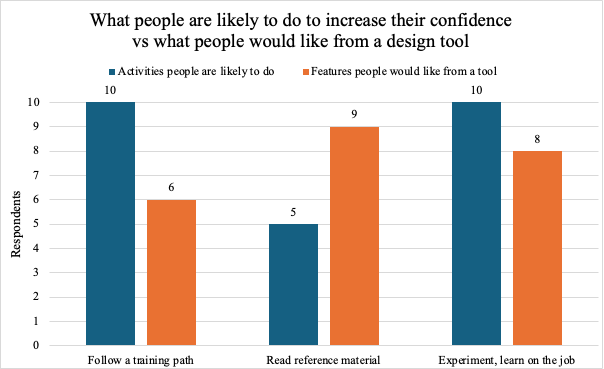

Figure 14: Activities people
reported they would be likely to do to increase their confidence with networks,
compared to the features they would like from a design tool. These were
presented to respondents as two separate questions.
Finally, participants were asked separately what activities
they would be likely to do to increase their confidence using computer networks
at work, and what features they would like from a design tool (Figure 14). These two questions had answers which correlated, so we can identify participants’
broader desires and how they think the tool fits into those desires.
Everyone said they would be likely to attend training and
that they would want to practise and learn on the job, while only half said
they would read reference material like books. This highlights a need for a
hands-on approach to learning. In the context survey, it was predicted that
appetite for training would be low due to the risk of lost income while not
working, but this did not transpire in this survey. This may be due to the
demographic of the survey: those in permanent work or part-time work while studying
do not risk loss of income while learning in the same way as freelancers do, as
training time would usually be paid by the employer.
It is interesting the reference material (in the form of a database
of device and protocol information) was the most popular feature request but reading
reference material was the least popular activity: this could be to do with the
wording of the options, or it may indicate the challenge of ensuring heterogenous
equipment from different manufacturers is compatible. It is also interesting
that only 60% of respondents said they would be likely to use a design tool to
learn more about networks, but 80% said they would like reassurance that plans
they make will work. Perhaps users think a design tool would be too complex as
a learning device, but still seek support in building systems.
With a longer project timescale, it would be beneficial to
do a second round of user evaluation – perhaps with an expanded questionnaire,
or a discussion with focus groups. This would enable a deeper understanding of
some of the trends observed: for example, we could clarify the two points of
uncertainty in the previous paragraph.
The main takeaways from this requirements survey are:
·
The sampled group are generally very confident in their
day-to-day work, but less confident in using networks, despite half of
respondents using networks all the time, 60% regularly designing or maintaining
networked systems, and 90% expecting to use networks more in the next year.
·
Technicians prefer learning-by-doing over reading, and want a
tool which provides access to data about their equipment, allowing them to
experiment with ideas and get reassurance that their designs will work in the
field.
From this survey, the 8th functional requirement was
added, to include a dedicated data browser inside the application rather than
only using the database to support design validation. This was based on the
strong user demand for reference material in the application. The survey
reinforced that the rest of the functional and non-functional requirements
specified are all features which users want from the application.
A persona is a fictional character designed to represent the
needs of a real user, incorporating information about a person’s background,
existing knowledge, personal preferences, needs, environment, and so on[9].
Compared to a list of user stories, personas highlight the ‘human’ element in
the design process. In a group setting, they can help to facilitate
communication, but even in this individual project they help to reason through
problems by considering how these different people would interact with the
application or talk about it between each other.
Personas are built from a combination of assumptions, the
designers’ prior knowledge and expertise in the field, and quantitative data. In
this project, with a reasonably small number of responses to the requirements
survey, assumptions and prior knowledge need to be relied on quite heavily when
making design decisions, and personas allow this to happen in a more structured
and describable manner.
Four personas were created to cover the different types of
users the application is made for. The functional and non-functional
requirements each persona encompasses are included for completeness.
|
Name
|
Lachlan
|
|
Age
|
23
|
|
Job title
|
Venue Technician
|
|
Education level
|
High school
|
|
Biography
|
Lachlan is new to the industry and works full-time in a
concert venue. He’s keen to update the venue systems so they’re more reliable
and simpler — he struggled to learn them when he arrived – and thinks the
computer networking he learnt in school would be well-applied here.
|
|
Personality traits
|
Enthusiastic about new things, keen to teach others,
enjoys video games in his spare time.
|
|
Frustrations
|
Resistance from older colleagues about trying new
equipment and configurations which deviate from what they’re used to.
|
|
Wants and needs
|
A way to express network designs to colleagues, showing
them that the new way is easier and reassuring them that the configuration he
has suggested will work.
|
|
Encompasses requirements
|
Functional: 2, 3, 4, 7
|
Figure 15: Lachlan’s persona.
|
Name
|
Fiona
|
|
Age
|
58
|
|
Job title
|
Production Manager
|
|
Education level
|
University degree
|
|
Biography
|
As a freelancer, Fiona works in a variety of venues
(both proper theatres and function halls), usually bringing her own equipment
and a small crew to set up and operate it. She has lots of experience,
starting as a lighting technician and now operating her own production and
hire company.
|
|
Personality traits
|
Approaching retirement and looking to keep work as
quiet and simple as possible so she can spend more time with her family.
|
|
Frustrations
|
Hauling lots of heavy cabling and equipment around,
wasting time while packing and during fit ups. Although she’s heard of
networked solutions being easier, she doesn’t want to rely on it for a show
because she doesn’t trust she’ll get it right.
|
|
Wants and needs
|
Guidance on how to set up networks with the equipment
she has, a way to find out what else she needs to buy, and how to plug it all
in when she gets to a venue. The ability to share setup plans easily with
crew on site.
|
|
Encompasses requirements
|
Functional: 2, 3, 4, 5, 7
Non-functional: 2, 4
|
Figure 16: Fiona’s persona.
|
Name
|
Isla
|
|
Age
|
38
|
|
Job title
|
Deputy Technical Manager
|
|
Education level
|
College
|
|
Biography
|
Isla works in a local theatre which produces its own
shows. The theatre is growing and starting to put on larger and larger
productions, so she is regularly hiring in extra equipment to support events
and looking to purchase some items so they have to hire less.
|
|
Personality traits
|
Cautious and thorough, very professional. Likes to
ensure that all plans are well-considered and clear so everyone’s on the same
page and there are minimal problems and delays during a show run.
|
|
Frustrations
|
It’s hard to find compatible equipment across
manufacturers and confirm what different devices and protocols require to
work effectively together.
|
|
Wants and needs
|
A way to explore devices by the protocols they use, an
easy reference for devices and protocols no matter the manufacturer so she
can make informed decisions about what she needs to hire or will eventually
invest in.
|
|
Encompasses requirements
|
Functional: 1, 7, 8
|
Figure 17: Isla's persona.
|
Name
|
Evan
|
|
Age
|
25
|
|
Job title
|
Part-Time Technician
|
|
Education level
|
In education while working
|
|
Biography
|
Evan has little experience in industry as he picked
this job up to support his studies, so he’s learning a lot from his
colleagues. Because he’s also in full-time education, he doesn’t work many
hours and doesn’t have much time outside of work to dedicate to learning, so
spends a lot of time learning on the job.
|
|
Personality traits
|
Hard-working, but focussed on his studies more than the
venue he’s working in so doesn’t really care much about work.
|
|
Frustrations
|
The venue system is changing regularly as they
transition to a more network-based approach, and since he’s not in very
often, he’s struggling to keep up to date with how things work and therefore
also struggling to fix problems he comes across.
|
|
Wants and needs
|
Access to the designs his full-time colleagues have
made, so he can see what things should be like when he’s troubleshooting, and
record any changes he makes.
|
|
Encompasses requirements
|
Functional: 7
Non-functional: 1, 2, 3
|
Figure 18: Evan's persona.
The set of personas covers users with varying experience
levels in both their primary work and computer networking, a variety of
motivations and levels of investment for why they want to use networks in their
work, and differing workplace remits. Intentionally excluded from these
personas is someone who has no interest in using network-based approaches to
their work. In many cases, analogue approaches are still a valid way to ‘get
the job done’ to this day, so people who are looking at networked solutions are
generally doing so because they already believe the benefits are worth the
transition or are working in a venue where a network-based approach is
prescribed for them. Someone who has no interest in networks would first need
to be convinced that this new approach is worth the effort to learn and
achieving that is probably a marketing or education task beyond objectives of
this project.
A primary objective of the project was to create an
extendible dataset of information about how different devices and protocols use
the network. In a way, this section is a ‘mini-project’ of its own, with its
results feeding into the later software engineering. With this in mind, we set
out a brief hypothesis and goals, explain the methodology, then present and
analyse the results.
From the research carried out in the context survey, we know
that despite there being a wide variety of hardware products from different
manufacturers, there are a comparatively small number of communication
protocols used across them (hence why they can be interoperable). These
protocols are either implemented by each device manufacturer according to a
specification, or the protocol vendor gives the hardware vendor an SDK or
hardware chipset to include in their device. This suggests that across
different hardware products, we can expect the same protocol to have roughly
the same network utilisation characteristics – minus any additional
functionality the device manufacturer adds on top.
The goals of this section are therefore:
·
To show – insofar as possible with the resources available to the
project – that different hardware products using the same communication
protocols use the network in a similar way.
·
To analyse how different devices and protocols use the network,
and therefore what sort of validation the design tool needs to do.
·
To centrally record appropriate data (based on the previous
analysis step) in an extendible format usable by the design tool software.
Thanks to the generosity of other University departments and
affiliates, a selection of professional-grade entertainment equipment was
available to the project for measurement (Table 2). We focus on measuring how
devices transmit data rather than receive it, and on measuring protocols which
are supported by devices from different manufacturers (as opposed to strictly vendor-specific
ones).
|
Device
|
Type
|
Protocols implemented
|
|
Avolites Tiger Touch II[5]
|
Lighting console
|
Art-Net, sACN
|
|
ETC Ion Classic[32]
|
Lighting console
|
Art-Net, sACN
|
|
Behringer X32[33]
with X-DANTE[34]
card
|
Sound desk
|
Dante
|
|
DiGiCo A168D STAGE[35]
|
Stage box
|
Dante
|
|
Audinate AVIO-DAI2[36]
|
Stage box (input only)
|
Dante
|
|
Resolume Arena 7[37]
|
Computer software
for video design
|
NDI
|
|
NDI HX Camera[38]
|
Mobile device software
for camera streaming
|
NDI-HX
|
Table
2: Devices available for measurement, including their type and the protocols
they implement.
As we have access to multiple devices which implement sACN,
Art-Net, and Dante, we will be able to check how their implementations differ
across device manufacturers. Unfortunately, we only have one implementation of
NDI and NDI-HX, so we cannot perform comparisons, but we take the measurements
anyway so the design tool has some information about networked video solutions.

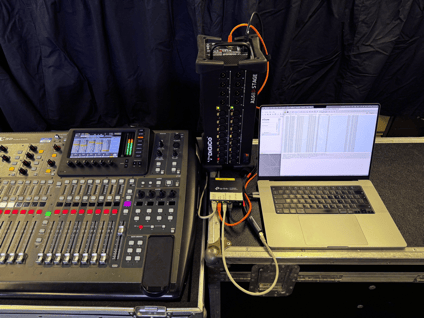

Figure 19: Behringer X32 and DiGiCo A168D STAGE connected
to the measurement setup.
A TP-Link TL-SG605E managed gigabit switch was used for
measuring. Port 1 was used to connect the device being measured (i.e. the
transmitter). Port 2 was used for any other AV device required for the measured
device to work correctly (i.e. a receiver for the transmitter to direct its
stream to). Port 3 was a mirror of port 1, used to take a packet capture of the
device working, and port 4 was used to connect a laptop for any administration
or setup tasks required to get the measured device to start transmitting. A
schematic of this system is provided in Figure 20. The packet capture and
analysis was carried out in Wireshark[39]
(Figure 21).

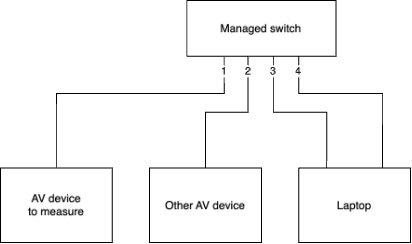

Figure 20: Schematic of the
device measurement setup.
This setup was transported to the equipment in its home
venue. The equipment was disconnected from its normal set up and connected to
the measurement switch, then transmission started. Where possible, a
‘data-intensive’ signal was sent – for example, constantly changing lighting
commands, random noise, and colourful complicated video. This was to record the
worst-case network utilisation, where compression or other optimisations may
not perform so well. Each configuration was recorded for 60 seconds, then the
packet capture was analysed qualitatively by hand and statistics stored
quantitatively in a spreadsheet.
File
Name: [file path]
Length: 59 MB
Format: Wireshark/tcpdump/... - pcap
Encapsulation: Ethernet
Snapshot length: 262144
Time
First packet: 2024-02-20 10:32:23
Last packet: 2024-02-20 10:33:24
Elapsed: 00:01:00
Capture
Hardware: Unknown
OS: Unknown
Application: Unknown
Interfaces
Interface Dropped packets Capture filter Link type Packet size limit
Unknown Unknown Unknown Ethernet 262144 bytes
Statistics
Measurement Captured Displayed Marked
Packets 364889 364889 (100.0%) —
Time span, s 60.585 60.585 —
Average pps 6022.8 6022.8 —
Average packet size, B 147.5 147.5 —
Bytes 53650346 53650346 (100.0%) 0
Average bytes/s 885 k 885 k —
Average bits/s 7084 k 7084 k —
Figure 21: Sample statistical
report from a packet capture.
We measure Art-Net transmission in broadcast mode, which is
not advised by the specification[3],
but is a widely implemented option for convenience when setting up a system. Art-Net
communicates entirely using UDP, using DHCP or static IP addresses. By default,
Art-Net devices are supposed to self-assign a class A address based on the
device MAC address. Traditional DMX retransmits data constantly, but Art-Net
should only transmit a packet when the DMX values change (or approximately
every 4 seconds if the values are not changing). So, to capture the worst-case
bandwidth usage, the transmitting lighting console was set to fade its channels
up and down constantly, thus changing the DMX values all the time. This was
done by patching 512 dimmer channels
at a time (since there are 512 addresses in a universe), then running an
intensity effect across them.
Two transmitters were measured: Avolites Tiger Touch II
(running Titan version 15.1), and ETC Ion Classic (running Eos version 3.1.5).
Tiger Touch was measured up to 32 universes transmitted and Ion up to 8
universes. Avolites do not recommend running more than 16 universes from one
Tiger Touch console to avoid overloading its processing engine, but they do not
enforce this limit – some sluggish UI performance was experienced on the
console in the last few tests but the data transmitted still seemed to be good.
The Ion console used had a hard limit of 6144 addresses in use at a time, which
is why testing on that console stopped at 8 universes.
|
Universes transmitted
|
Packets
|
Time (s)
|
Mean packets/sec
|
Mean packet size (B)
|
Total bytes
|
Mean Bytes/sec
|
Mean bits/sec
|
|
0
|
711
|
60.282
|
11.8
|
160.5
|
114129
|
1893
|
15 k
|
|
1
|
3107
|
60.477
|
51.4
|
481.5
|
1495149
|
24 k
|
197 k
|
|
2
|
5526
|
60.45
|
91.4
|
521.5
|
2879637
|
47 k
|
381 k
|
|
3
|
7944
|
60.449
|
131.4
|
536.5
|
4262507
|
70 k
|
564 k
|
|
4
|
10412
|
60.699
|
171.5
|
545.5
|
5674568
|
93 k
|
747 k
|
|
8
|
20061
|
60.528
|
331.4
|
558.5
|
11194751
|
184 k
|
1479 k
|
|
16
|
39617
|
60.798
|
651.6
|
564.5
|
22379400
|
368 k
|
2944 k
|
|
24
|
59017
|
60.827
|
970.2
|
567.5
|
33472242
|
550 k
|
4402 k
|
|
32
|
77380
|
60.859
|
1271.5
|
569.5
|
44038617
|
723 k
|
5788 k
|
Table 3: Packet capture
summary data for Avolites Tiger Touch II transmitting Art-Net.
|
Universes transmitted
|
Packets
|
Time (s)
|
Mean packets/sec
|
Mean packet size (B)
|
Total bytes
|
Mean Bytes/sec
|
Mean bits/sec
|
|
0
|
258
|
60.579
|
4.3
|
311.5
|
80401
|
1327
|
10 k
|
|
1
|
2785
|
60.736
|
45.9
|
547.5
|
1523775
|
25 k
|
200 k
|
|
2
|
5436
|
60.921
|
89.2
|
559.5
|
3043341
|
49 k
|
399 k
|
|
3
|
8056
|
60.626
|
132.9
|
563.5
|
4537356
|
74 k
|
598 k
|
|
4
|
10602
|
60.15
|
176.3
|
565.5
|
5996833
|
99 k
|
797 k
|
|
8
|
21200
|
60.58
|
349.9
|
568.5
|
12061585
|
199 k
|
1592 k
|
Table 4: Packet capture summary
data for ETC Ion Classic transmitting Art-Net.
The results (Table 3, Table 4) indicate that Art-Net does
behave the same way on different devices. The measurement when no DMX data
transmission was happening was negligible at 10 kbit/sec, and the overall
throughput remained modest throughout all tests, sitting at around 200 kbit/sec
when transmitting 1 universe and reaching 5.7 Mbit/sec when transmitting 32
universes. Each time another universe was added, there was an increase in
throughput of around 199 kbit/sec.
Selecting between Art-Net and sACN on a lighting console is a
simple configuration option in the console settings, so the setup for sACN
measurement is the same as Art-Net, with this protocol setting changed. The
same consoles were used for measurement, again measuring up to 32 universes on
Tiger Touch II and 8 universes on Ion Classic.
|
Universes transmitted
|
Packets
|
Time (s)
|
Mean packets/sec
|
Mean packet size (B)
|
Total bytes
|
Mean Bytes/sec
|
Mean bits/sec
|
|
0
|
361
|
60.681
|
5.9
|
238.5
|
86051
|
1418
|
11 k
|
|
1
|
2690
|
60.598
|
44.4
|
625.5
|
1682394
|
27 k
|
222 k
|
|
2
|
5086
|
60.628
|
83.9
|
653.5
|
3322106
|
54 k
|
438 k
|
|
3
|
7530
|
60.631
|
124.2
|
660.5
|
4975272
|
82 k
|
656 k
|
|
4
|
9956
|
60.747
|
163.9
|
666.5
|
6633866
|
109 k
|
873 k
|
|
8
|
19645
|
60.649
|
323.9
|
673.5
|
13223788
|
218 k
|
1744 k
|
|
16
|
38809
|
60.273
|
643.9
|
676.5
|
26245140
|
435 k
|
3483 k
|
|
24
|
58138
|
60.299
|
964.2
|
677.5
|
39400134
|
653 k
|
5227 k
|
|
32
|
78848
|
60.443
|
1304.5
|
668.5
|
52671912
|
871 k
|
6971 k
|
Table 5: Packet capture summary data for Avolites Tiger
Touch II transmitting sACN.
|
Universes transmitted
|
Packets
|
Time (s)
|
Mean packets/sec
|
Mean packet size (B)
|
Total bytes
|
Mean Bytes/sec
|
Mean bits/sec
|
|
0
|
500
|
60.657
|
8.2
|
507.5
|
253797
|
4184
|
33 k
|
|
1
|
2835
|
60.579
|
46.8
|
650.5
|
1843596
|
30 k
|
243 k
|
|
2
|
5538
|
60.63
|
91.3
|
664.5
|
3680597
|
60 k
|
485 k
|
|
3
|
8250
|
60.744
|
135.8
|
669.5
|
5524983
|
90 k
|
727 k
|
|
4
|
10940
|
60.671
|
180.3
|
672.5
|
7352905
|
121 k
|
969 k
|
|
8
|
21752
|
60.646
|
358.7
|
674.5
|
14681933
|
242 k
|
1936 k
|
Table 6: Packet capture summary data for ETC Ion Classic transmitting
sACN.
sACN throughput is again similar across different
manufacturers’ implementations, but slightly higher than the throughput of
Art-Net (Figure 22) as each universe adds around 240 kbit/sec of data transfer.
It is worth making clear though that this is only an increase of 40 kbit/sec, and
the data rate is still very modest, so it is probably not worth factoring this
difference into choosing between sACN and Art-Net. The mean packet size of sACN
is larger, which makes sense as the sACN data packet header is 124 octets long[8]
compared to Art-Net’s 11 octets[3].
The differing size comes from sACN being built atop the broader ACN
specification which has broader functionality, whereas Art-Net is first and
foremost a lighting control system.

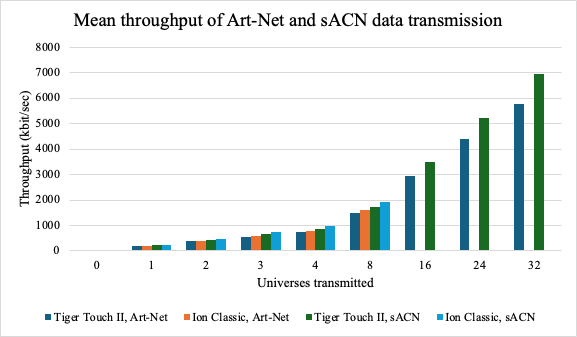

Figure 22: Mean throughput of
Art-Net and sACN data transmission measured from Avolites Tiger Touch II and
ETC Ion Classic.
A Dante flow contains four channels of audio[20],
so we would expect the network utilisation to increase for every four additional
channels of audio transmitted. Dante uses UDP for audio, so we would expect a
considerable volume of UDP traffic, with occasional PTP packets for clock sync
across the network. We focus on unicast Dante flows, not multicast, as multicast
is a reasonably advanced configuration and is not used often in small-to-medium
scale systems, based on experience in venues.
The first setup tested was the DiGiCo A168D transmitting to
X32. Firstly, a packet capture was taken of the device sitting on the network
without setting up any audio flows. This showed a low throughput of 14 kbit/s
and 14.1 packets per second, made up primarily of PTP clock messages and mDNS/ARP
device discovery. This figure is low enough that it is treated as negligible in
the rest of the Dante measurements, and the measured throughput is taken to be
the result of audio transmission only.
Measurements were then taken of the device transmitting 1
channel of audio, then 2, 4, 6, 8, 10, 12, 14, and 16 channels (Table 7).
|
Channels transmitted
|
Packets
|
Time (s)
|
Mean packets/sec
|
Mean packet size (B)
|
Total bytes
|
Mean Bytes/sec
|
Mean bits/sec
|
|
0
|
851
|
60.567
|
14.1
|
129.5
|
110284
|
1820
|
14 k
|
|
1
|
361542
|
60.033
|
6022.4
|
147.5
|
53152979
|
885 k
|
7083 k
|
|
2
|
370817
|
61.57
|
6022.6
|
147.5
|
54518566
|
885 k
|
7083 k
|
|
4
|
364889
|
60.585
|
6022.8
|
147.5
|
53650346
|
885 k
|
7084 k
|
|
6
|
969867
|
80.642
|
12026.8
|
146.5
|
142557690
|
1767 k
|
14 M
|
|
8
|
731112
|
60.791
|
12026.7
|
146.5
|
107461555
|
1767 k
|
14 M
|
|
10
|
1091978
|
60.559
|
18031.5
|
146.5
|
160488850
|
2650 k
|
21 M
|
|
12
|
1108837
|
61.494
|
18031.6
|
146.5
|
162965045
|
2650 k
|
21 M
|
|
14
|
1464937
|
60.948
|
24035.7
|
146.5
|
215287982
|
3532 k
|
28 M
|
|
16
|
1634774
|
68.015
|
24035.3
|
146.5
|
240272312
|
3532 k
|
28 M
|
Table 7: Packet capture summary
data for DiGiCo A168D transmitting Dante audio.
As hypothesised, the packet capture showed a lot of UDP
audio transfer (which could be identified by its DSCP value, since Dante
hardware tags audio and clocking packets differently), and a jump in throughput
every 4 channels when a new Dante flow was added. Since each flow has space for
4 channels, the increase in data rate for each flow was consistent at
approximately 7000 kbit/s, and the throughput figures within each ‘band’ of
four channels were remarkably consistent too (Figure 23).

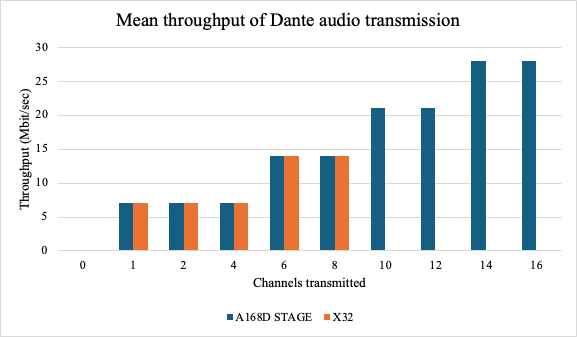

Figure 23: Mean throughput of
Dante audio transmission, measured from the transmission of DiGiCo A168D STAGE
and Behringer X32.
Next, the transmission of X32 was measured in a similar way
(Figure 24). On X32, there is a separate network port for the Dante
connectivity and the desk remote control feature. A common configuration is to
connect the secondary Dante port to the desk remote control port – since the
Dante secondary port acts as a switch, this means all networked functionality
of the desk is available over one cable to the primary Dante port. Only 8
channels of transmission were measured from X32, because the receiver (A168D
STAGE) can only receive 8 channels.
The throughput was slightly higher when there was no audio
transmission, likely due to the desk remote control functionality, but still
negligible. The rest of the audio transmission measurements were near
identical. This supports the original hypothesis that for Dante, the expected
throughput is the same no matter the specific device manufacturer.
|
Channels transmitted
|
Packets
|
Time (s)
|
Mean packets/sec
|
Mean packet size (B)
|
Total bytes
|
Mean Bytes/sec
|
Mean bits/sec
|
|
0
|
1398
|
70.327
|
19.9
|
185.5
|
259698
|
3692
|
29 k
|
|
1
|
365838
|
60.741
|
6023
|
147.5
|
53787275
|
885 k
|
7084 k
|
|
2
|
365070
|
60.613
|
6023
|
147.5
|
53674963
|
885 k
|
7084 k
|
|
4
|
364732
|
60.559
|
6022.7
|
147.5
|
53623700
|
885 k
|
7083 k
|
|
6
|
731203
|
60.796
|
12027.2
|
146.5
|
107470350
|
1767 k
|
14 M
|
|
8
|
753402
|
62.641
|
12027.2
|
146.5
|
110734046
|
1767 k
|
14 M
|
Figure 24: Packet capture
summary data for Behringer X32 transmitting Dante audio.
The project did not have access to any hardware which implements
the NDI protocol, so we instead measure software implementations. We measure an
implementation of the main NDI protocol from Resolume Arena 7 and the
high-efficiency NDI-HX protocol from NDI HX Camera on an Apple iPhone. In both
cases, the video transmitted was a colour-changing background with lines
sliding across it in random directions, to minimise the efficiency of video
compression. Resolume Arena ran this video as layered composition built in its
editor for its measurement, and for NDI HX Camera the video was played on a screen
which the camera recorded.
Measurements for Resolume Arena were taken at various video
resolutions and frame rates (Table 8).
|
Resolution
|
Frame rate (fps)
|
Packets
|
Time (s)
|
Mean packets/sec
|
Mean packet size (B)
|
Total bytes
|
Mean Bytes/sec
|
Mean bits/sec
|
|
Video output off
|
371
|
60.379
|
6.1
|
160.5
|
59433
|
984
|
7874
|
|
1080p
|
1
|
4823
|
60.521
|
79.7
|
10858.5
|
52372156
|
865 k
|
6922 k
|
|
1080p
|
15
|
50738
|
61.329
|
827.3
|
15232.5
|
772844575
|
12 M
|
100 M
|
|
1080p
|
30
|
45577
|
60.652
|
751.5
|
13717.5
|
625224028
|
10 M
|
82 M
|
|
1080p
|
60
|
89960
|
60.683
|
1482.5
|
13930.5
|
1253217428
|
20 M
|
165 M
|
|
1080p
|
120
|
232439
|
60.924
|
3815.2
|
13756.5
|
3197542241
|
52 M
|
419 M
|
|
4K
|
30
|
117505
|
60.892
|
1929.7
|
13879.5
|
1630899927
|
26 M
|
214 M
|
|
4K
|
60
|
241504
|
60.566
|
3987.4
|
13275.5
|
3206030211
|
52 M
|
423 M
|
|
8K
|
30
|
285847
|
60.928
|
4691.6
|
13042.5
|
3728097542
|
61 M
|
489 M
|
|
8K
|
60
|
360015
|
61.068
|
5895.3
|
13531.5
|
4871623005
|
79 M
|
638 M
|
Table 8: Packet capture summary
data for Resolume Arena 7 transmitting NDI video at various resolutions and
frame rates.
Like previous measurements, the background data rate when no
video transmission is enabled is negligible, but the rest of the throughput
values are much larger than other protocols – a 1080p 30 fps video has a data
rate almost 3x greater than 16 channels of Dante audio and 12x greater than 32
universes of sACN control data. It is interesting that NDI used TCP instead of
UDP for its data transfer, since every other protocol measured so far relied on
UDP and the network being inherently reliable. This may come from NDI’s origins
in studio usage, where every frame arriving for recording may be more important
than low latency.
The 1 fps measurement was intended to find out if NDI was
able to send a complete frame of video in each TCP packet or not: the mean
packets per second for this measurement was 79.7, so it would appear not.
There is a drop in throughput between 1080p 15 fps and 1080p
30 fps (Figure 25). The data rate approximately doubles between 30 fps and 60
fps, but increases by around 2.5x when comparing 60 fps and 120 fps. Similarly,
when comparing 1080p 30 fps to 4K 30 fps, the difference in throughout is
around 2.5x, despite a 4K image containing four times as many pixels as a 1080p
one. These observations suggest that NDI performs some optimisation at
different resolutions, but it is not clear from public specification documents
what that optimisation may be.

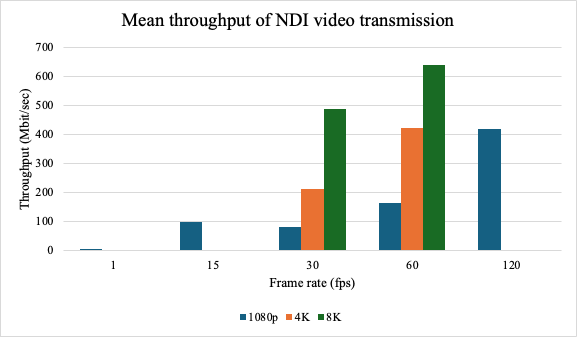

Figure 25: Mean throughput of
NDI video transmission at different resolutions and frame rates, measured from Resolume
Arena 7.
NDI HX Camera can operate in TCP or UDP mode, we measure
both streaming 1080p video at 30 fps (Table 9).
|
Type
|
Packets
|
Time (s)
|
Mean packets/sec
|
Mean packet size (B)
|
Total bytes
|
Mean Bytes/sec
|
Mean bits/sec
|
|
UDP
|
98337
|
60.446
|
1626.8
|
586.5
|
57675013
|
954 k
|
7633 k
|
|
TCP
|
47846
|
60.69
|
788.4
|
1104.5
|
52831977
|
870 k
|
6964 k
|
Table 9: Packet capture summary
data for NDI-HX transmission from the NDI HX Camera app.
UDP is the default mode and its mean throughput is slightly
lower than the TCP variant’s, which is probably why it is the default. The
increased overhead of TCP communication seems to be compensated for by sending
more data per packet across fewer packets, with almost half the mean packets
per second but double the packet size. In both cases though, the “high
efficiency” name appears to be accurate, as the mean bytes per second is about
a tenth of the equivalent standard NDI feed, comparable to the throughput of
1-4 channels of Dante audio. So, in bandwidth constrained applications – such
as portable cameras connected wirelessly to the network – selecting NDI-HX
instead of NDI would be a sensible decision.
From the measurements in this section, we conclude that different
implementations of the same software protocol across different hardware devices
use the network in a very similar – or even exactly the same – way. We can
therefore use the measurements of a protocol’s behaviour on one device to
represent the protocol’s behaviour across other devices, making it easier to
support a broader range of hardware in our tool. Protocol throughput increases
as more channels of data are added which makes intuitive sense, but for
protocols like Dante, the throughput increases per four additional channels of
data since each flow contains either four channels of data or fewer than four
channels plus padding. These findings will inform the database schema designed
in the next section.
The main design tool application application follows the
three-tier approach[2]
with the presentation layer running in the user’s web browser, the application layer
running on a web server and managing data access, and the data layer being the
database server (Figure 26). Due to the selection of technologies (explained
further in section 11), the application and presentation layers are
tightly-coupled, with the line occasionally blurred between them in the name of
improved application performance. Because of this coupling, after looking over
some guiding design principles, we explain the design of the data layer
followed by the application and presentation layer together in sections by
system functionality.

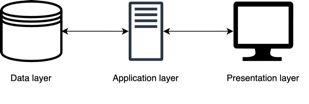

Figure 26: Three-tier software
architecture.
Jakob Nielsen’s 10 usability heuristics (Figure
27) [15]
were refined in 1994 and have not changed since, yet still are a reliable set
of principles for user interface and experience design. There is a considerable
amount of work based on these heuristics, either developing them further or
applying them to various problems, with Nielsen’s original papers on the topic
gaining thousands of citations and more all the time. For this reason, these
heuristics were selected as the main set of guidelines to follow when designing
the application.
These heuristics augment the requirement specification with
design guidance and expertise and are used to reason how best to fill gaps
where the project timeline meant further stakeholder involvement was
impractical.
Figure 27: Nielsen's usability
heuristics.
These heuristics are woven through the design and mentioned
throughout the remainder of the section, but in the interests of being
explicit, we list some specific examples of each heuristic at work in the
application.
1.
Visibility of system status: The currently-active navigation item
(within the application or tool pane) is clearly highlighted through to help
the user orient themselves. (Figure 28)

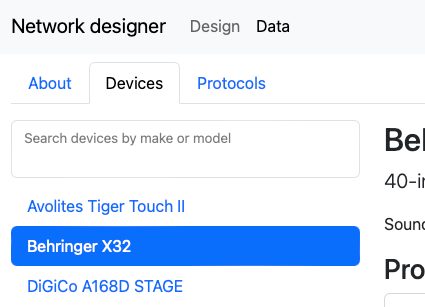

Figure 28: Partial screenshot
showing the navigation hierarchy of the Data section. The data page is
highlighted, as is the Devices tab and the Behringer X32 section.
2.
Match between system and the real world: The system talks mostly
about “devices” rather than “nodes” or another more technical term, matching
the way people would speak in the industry. The main UI is a map where the user
can lay out devices in a way which matches their mental model of their venue or
setup (Figure 29).

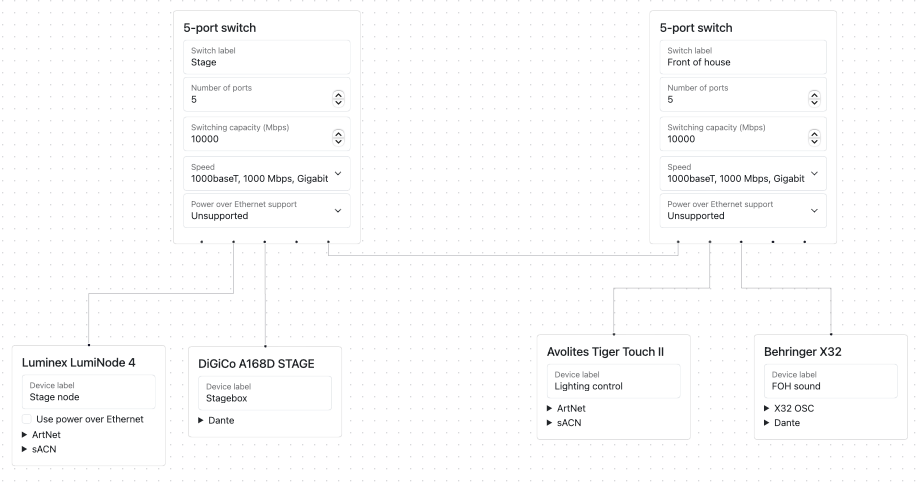

Figure 29: Partial screenshot
showing a network map, where devices which will be in different areas of the
venue are grouped together and separated from each other.
3.
User control and freedom: The design wizard includes a “back”
option which takes the user back a step and lets them fix any mistake they
made, and a “cancel” option to abort the entire process (Figure 30).
Figure 30: Screenshot of the
design wizard. Users have clear navigation options to go back or completely
cancel the operation.
4. Consistency
and standards: The componentised frontend architecture encourages re-use of
design elements across the system so everything looks familiar. When finding
information about a device, the same information pane is used in the data
explore tab, the info modal in the design tool, and the info modal in the
design wizard. The device filtering options are the same in the design tool and
wizard.
5.
Error prevention: Devices and protocols should be added to
the database with help text and sensible defaults so users can enter data
correctly first time, or not have to enter the data at all. The wizard prevents
errors by arranging much of the core infrastructure for you.
6.
Recognition rather than recall: When selecting devices to include
in the design during the design wizard, the current system status including
what the user said their requirements were and how well the currently-selected
devices meet those requirements is constantly displayed on screen (Figure 31).
Figure 31: Partial screenshot
of the device selection step of the design wizard. Each location's tab includes
an indicator to show whether its requirements are met, and within each tab
there are clear meters to show progress towards each requirement.
7. Flexibility
and efficiency of use: Using standard operating system option keys on the
keyboard, users can select multiple devices, switches, and connections on the
map to move them at once.
8.
Aesthetic and minimalist design: The design wizard shows each
step on the screen one at a time, avoiding overloading the user with the whole
procedure at once. The device picker list shows the device make and model and
its number of inputs and outputs, then hides all the rest of the details in a
modal dialogue to ensure the list remains easy to skim through.
9.
Recognise, diagnose, and recover from errors: Design validation
errors are written in plain English, include advice for fixing the problem, and
provide links so the user can quickly find the problematic option in the map (Figure 32). Error boundaries are included for each section of the application to
limit the ‘blast radius’ of a faulty component.

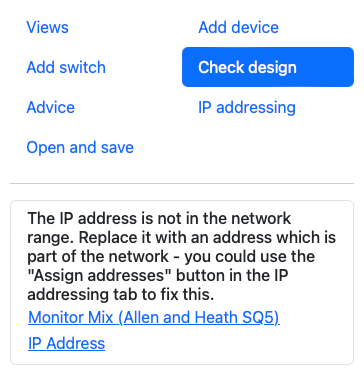

Figure 32: Partial screenshot
of the "Check design" tool pane indicating a problem. The problem
includes links to solve the issue, and descriptive text which explains what the
user needs to do.
10. Help and
documentation: All configuration options are accompanied by descriptive
text explaining what the option should do and how the user should decide what
to enter. The application includes a tour to help the user learn both how to
use the design tool and set up a basic entertainment computer network.
ISO 9241-210 requires potential adverse consequences for
health and safety to be identified. There are no particular adverse
consequences for the use of this tool other than those inherent with the usage
of a computer system.

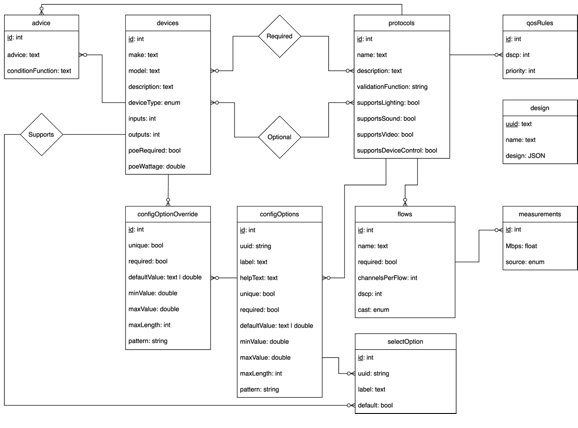

Based on the findings of the measurement activities, a
database schema was created. This schema is included in section 21.
For each protocol, we store:
·
A name and description.
·
What functionality the protocol offers (lighting control,
sound, video, and/or device control).
·
Quality-of-service rules which the protocol recommends.
·
Configuration options which the protocol makes available.
These are available in a variety of data types (text, number, select) and can
be used for protocol configuration data (e.g. deciding what sample rate an
audio device should work at) or to store metadata used for configuration
validation (e.g. how many channels of data a device is transmitting). Depending
on the option data type, various validation options are available, including
minimum and maximum value, maximum length, regular expression pattern to match,
whether the option is required or not, whether the option must be unique across
the entire design or not, and the default value for the field. Where possible,
every configuration option should have a sensible default value to guide users
towards a functional setup with minimal effort.
·
A validation function. This is a JavaScript function which
can do any computation required for protocol-specific validation which cannot
be covered by the basic input validation available on the configuration
options. The function is run for every device which uses the protocol in a
design and has access to that device’s configuration values and the
configuration of the nearest switch. For example, for Art-Net, this function
compares the number of universes being transmitted and the speed of the nearest
switch to ensure it meets the Art-Net specification.
·
Advice. It is not practical for the design tool to
validate everything which a protocol may recommend to make a network
most efficient – some items are too complex and niche, or refer to external
factors which cannot be sensibly represented in the system. In this case, the
tool can instead offer advice to the user. Each piece of advice is a text field
of information with a JavaScript function used to decide whether to give the
advice or not. This means advice can be given as soon as a protocol is used
(e.g. “disable energy-efficient Ethernet on all switches in the network”), or only
appear based on some condition (e.g. if the device is configured to send more
than 16 channels, “ensure this device is set to transmit-only mode to raise the
limit from the default 16 channels”).
·
Channel calculation. This is some JavaScript code which is
used to calculate how many channels of data a given device is sending and
receiving for a protocol. This way, each protocol can use any data it needs to
find this value, including the device’s configuration options.
·
Flows. Each protocol can describe multiple flows which it
uses (for example in Dante, its clocking data and its audio data). Within each
flow, the system stores the flow’s DSCP value, the number of channels of data a
flow of some type can transport, and a set of measurements of that flow’s
throughput (including the throughput and where that measurement came from, e.g.
device measurement or a specification document). All this data is available for
exploration in the application, but more importantly, is used to calculate the
link utilisation for each switch port, as described in section 11.3 below.
Functional requirement 6 (in section 8.3.1)
refers to the system offering plugin hooks. On considering this requirement
further, the three key areas a plugin could help with are:
1. Offering
additional validation logic for devices and protocols.
2.
Adding custom user interface elements for configuring devices and
protocols.
3. Integrating
with third-party applications and systems.
It was decided that the work required to support these three
areas would not be proportional to the benefit users would get from it, and so
the requirement adjusted. The first area, additional validation, would instead
be implemented by storing a validation function in the database with each
protocol. This offers the same extendible functionality, but with a lower
overhead than having to include it in a ‘plugin’ as you may traditionally think
of one (and so probably be less of a burden for system administrators too). The
other two areas are moved to future work, although the system is still designed
with them in mind so this future work is possible without significant
application re-architecture.
While storing JavaScript functions in the database offers a
very high level of flexibility and customisability, it also comes with security
risks and the risk of introducing bugs in production which may be difficult to
track down. To support the latter, usage of the database-stored functions is
wrapped in appropriate error handling to minimise the reach of the problem. In
support of both points, the ability to edit the code in the database must be
restricted to trusted administrators only. A future development could be replacing
the JavaScript with a more restricted environment – perhaps a visual,
blocks-based language which would have the added benefit of making the creation
of these functions more approachable to administrators who are less familiar
with computer programming[12].

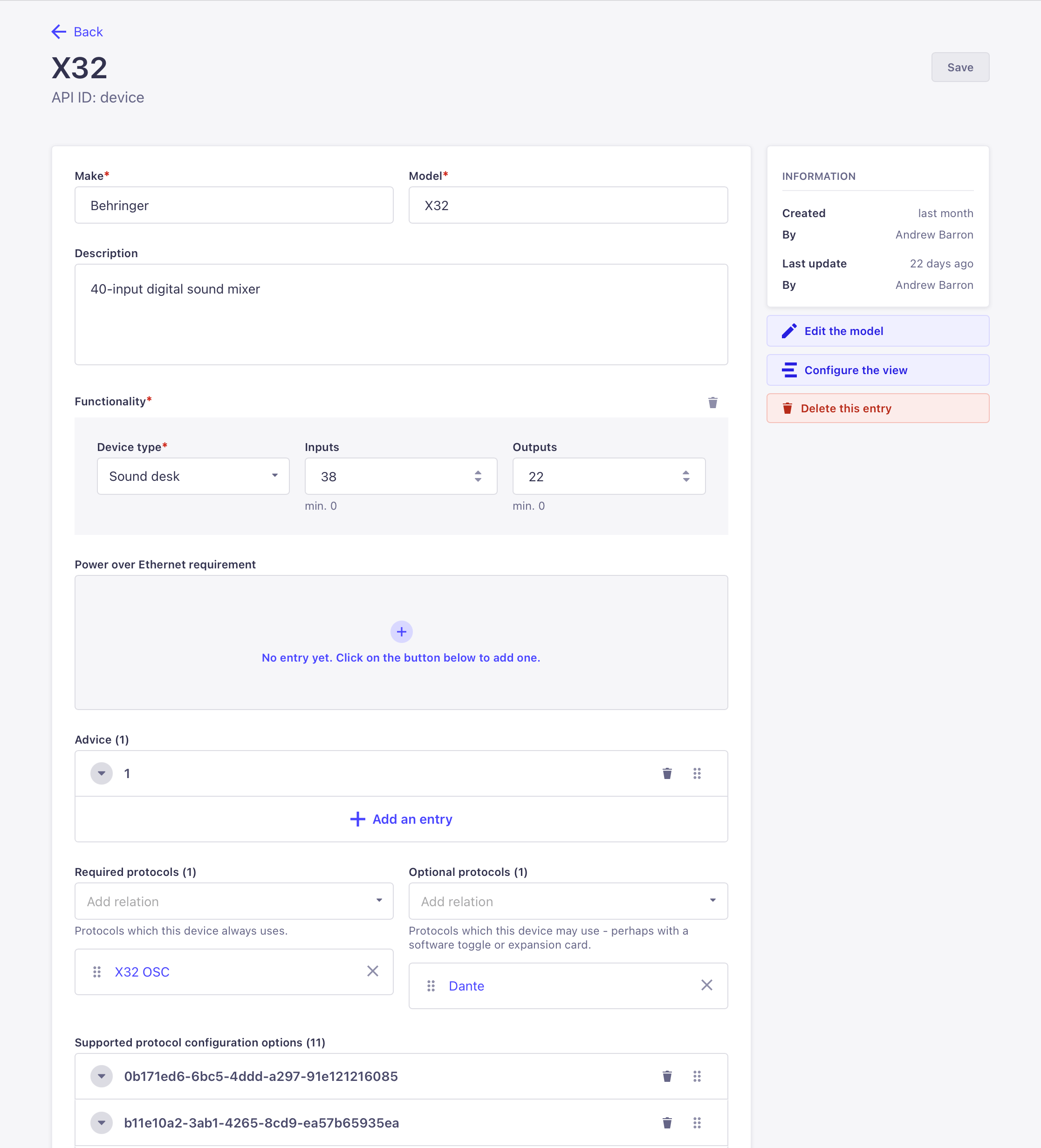

For each device, the system stores:
·
Make, model, and description.
·
A device type from a set of pre-defined categories, and
the number of inputs and outputs the device offers. This is used for filtering
to find devices and helping the wizard check that a system meets requirements.
·
Power over Ethernet information, including whether the
device can only be powered by PoE or if it is optional, and the maximum wattage
drawn. This is used to ensure appropriate switches are used and nothing is
overloaded.
·
Advice, in the same way as protocols, allowing for any
device-specific advice to be included.
·
A relationship to any protocols which the device always
uses or may optionally use. This covers devices like A168D STAGE which always
and solely communicates using Dante, X32 which may use Dante if the appropriate
expansion card is installed and otherwise uses non-networked solutions, and ETC
Ion Classic which supports both Art-Net and sACN and the user can select which
they wish to enable.
·
A record of which protocol configuration options the device
supports (for example, some devices may not support changing the sample
rate), and the ability to override the validation for any configuration option
(for example, current Dante chipsets can allow a device to receive up to 512
channels of audio[40],
but a stage box with 8 output sockets can only receive 8).
Switches are not stored in the database. Instead, users
enter the specification of their selected switches when they are working in the
design tool. This is because switch specification information is usually
readily-available – often written on the switch itself – and people are likely
to use switches they already own from a wide range of manufacturers, so a
switch database would need to be incredibly extensive to be useful.
This structure reflects the findings from the measurement
section, where it was found that a protocol acts similarly across all devices
which implement it. The data about a protocol is stored once, then linked to
any device which implements it with the ability to override some parameters to
handle any special-case devices.
The database also stores users’ designs, so they can be
shared with others and accessed on any device. We store a UUID to find the
design, a user-defined file name, and a JSON object containing all data about
the design. The format of the JSON object is defined by React Flow, described
in section 11.3. Some schools of thought do not recommend storing JSON in a
database, since it is inefficient to query the database based on values within
that JSON object. This is not relevant in this case as we treat the JSON object
like a file or blob – we only ever recall it in its entirety and it is found by
its UUID only, never the contents.
IP addresses are included as protocol-level configuration
option, rather than on a device-by-device basis. While this initially seems
unusual, it increases the flexibility of how data is represented in the system.
For example:
·
A168D STAGE supports Dante only. The device’s IP address is recorded
as part of the Dante configuration options.
·

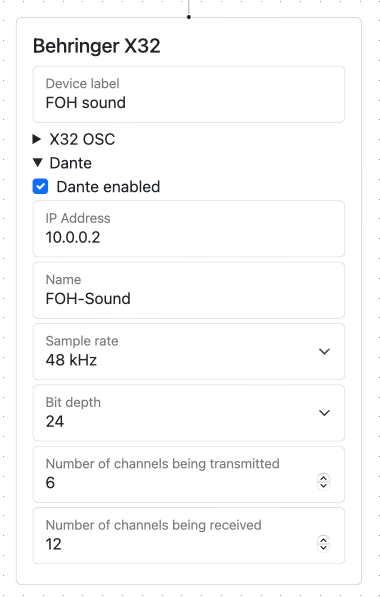

X32 has two network ports (one for remote control and one for
Dante), and each port needs its own IP address. The device is recorded as supporting
both protocols and supporting the IP address configuration option of both, which
allows a separate address to be stored under each protocol’s configuration
options.
·
ETC Ion Classic uses one IP address for remote control, Art-Net,
and sACN. The device is recorded as supporting all three protocols, but only
supporting the IP address option of its remote control protocol. This means the
device IP address is stored under the remote control configuration, and the
option is not available under Art-Net or sACN.
Initially, it was planned that users would be able to submit
information to the database directly from the user interface. This would allow
maximum flexibility, since if a technician had access to a device the system
didn’t know about, they would simply add it. This feature was scrapped for three
reasons:
·
Getting the data is hard. After carrying out the measurement
phase of this project, it was decided that a user unfamiliar with networks
would struggle to do the task independently, and there is limited scope for
this software-only development to help: the tool could theoretically carry out
packet capture and analysis, but the user would still need to be instructed on
setting up a managed switch with port mirroring, create appropriate testing
scenarios which would vary depending on the devices, and work out how many
channels go into each flow.
·
A publicly-editable resource like this would require moderation, which
the project in its current form does not have capacity to do.
·
Creating a data input user interface which meets the requirements
of being easy to use, supporting a moderation flow, and fully integrated into
the main application was time-consuming and made little progress towards the
main project objectives.
Tesler’s Law[11]
states that every application has an inherent amount of complexity that cannot
be removed or hidden. In this case, end-user device data management is just too
inherently complex and would probably scare users not familiar with networking,
like persona Fiona (Figure 16). So, we take this complexity out of the user
interface and place it onto the tool’s administration team. Looking at
Nielsen’s heuristic of consistency and standards, technicians are unlikely to
be surprised by this design decision. In lighting, console manufacturers
maintain a database of lighting fixtures which they update periodically so
their consoles know how to control different devices. If you are using a
lighting fixture which your console doesn’t support, you contact the
manufacturer and ask them to create a profile[41–43].
Doing the same for devices in the network design tool is therefore consistent
with similar processes elsewhere in the industry.

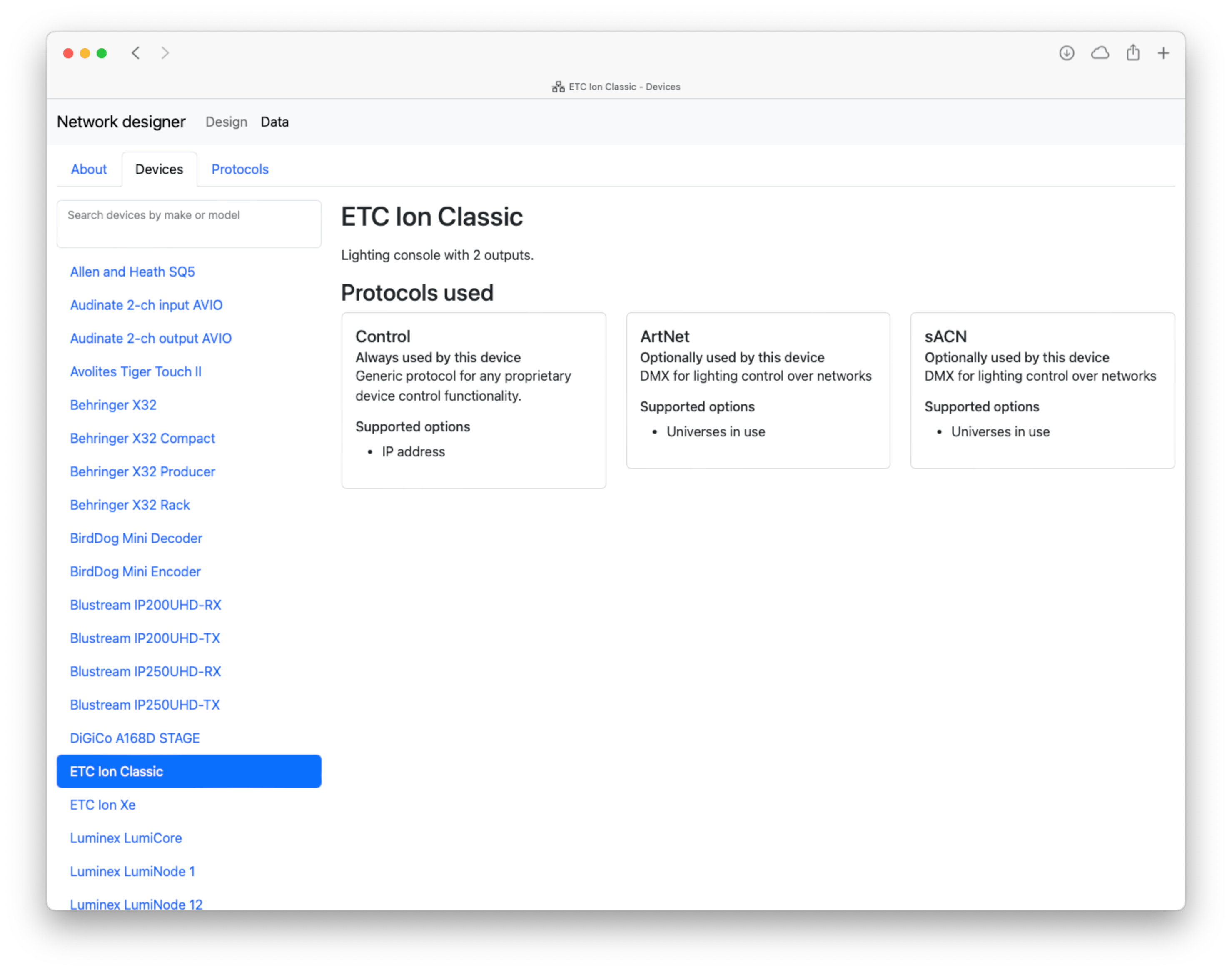

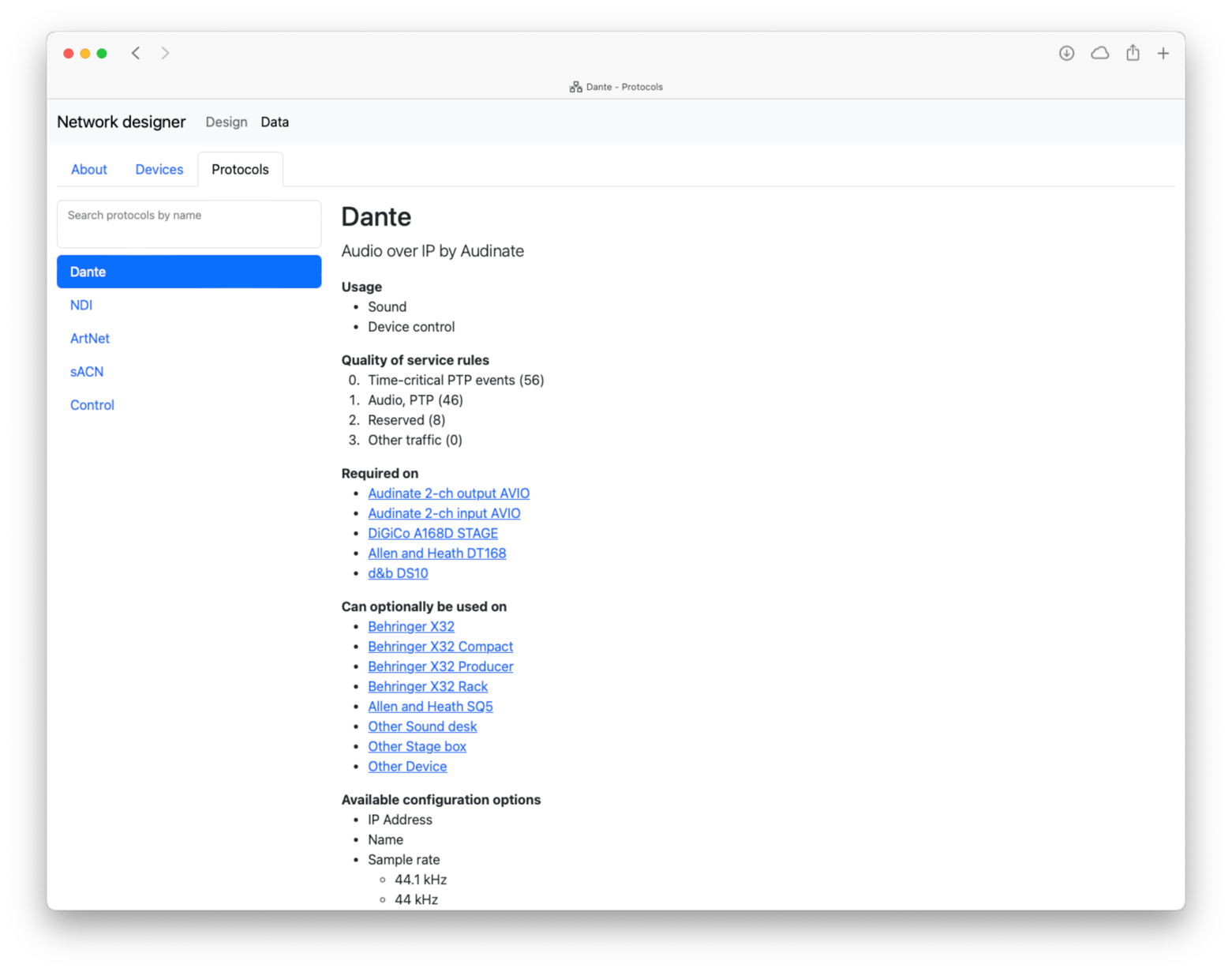

The user interface still includes a way for users to browse
the database, both in the context of making a design and generally. The UI is
shared between the two browsing interfaces, keeping a familiar and consistent
experience across the application (Nielsen 4).
The application homepage (Figure 33) acts as a landing page
and has information targeted both to new and returning users. The most
prominent options are for creating something new, starting from a blank canvas,
using the design wizard, or starting an onboarding tour of the application.
Secondarily, a list of all recently opened files is shown, followed by links to
explore device and protocol data.

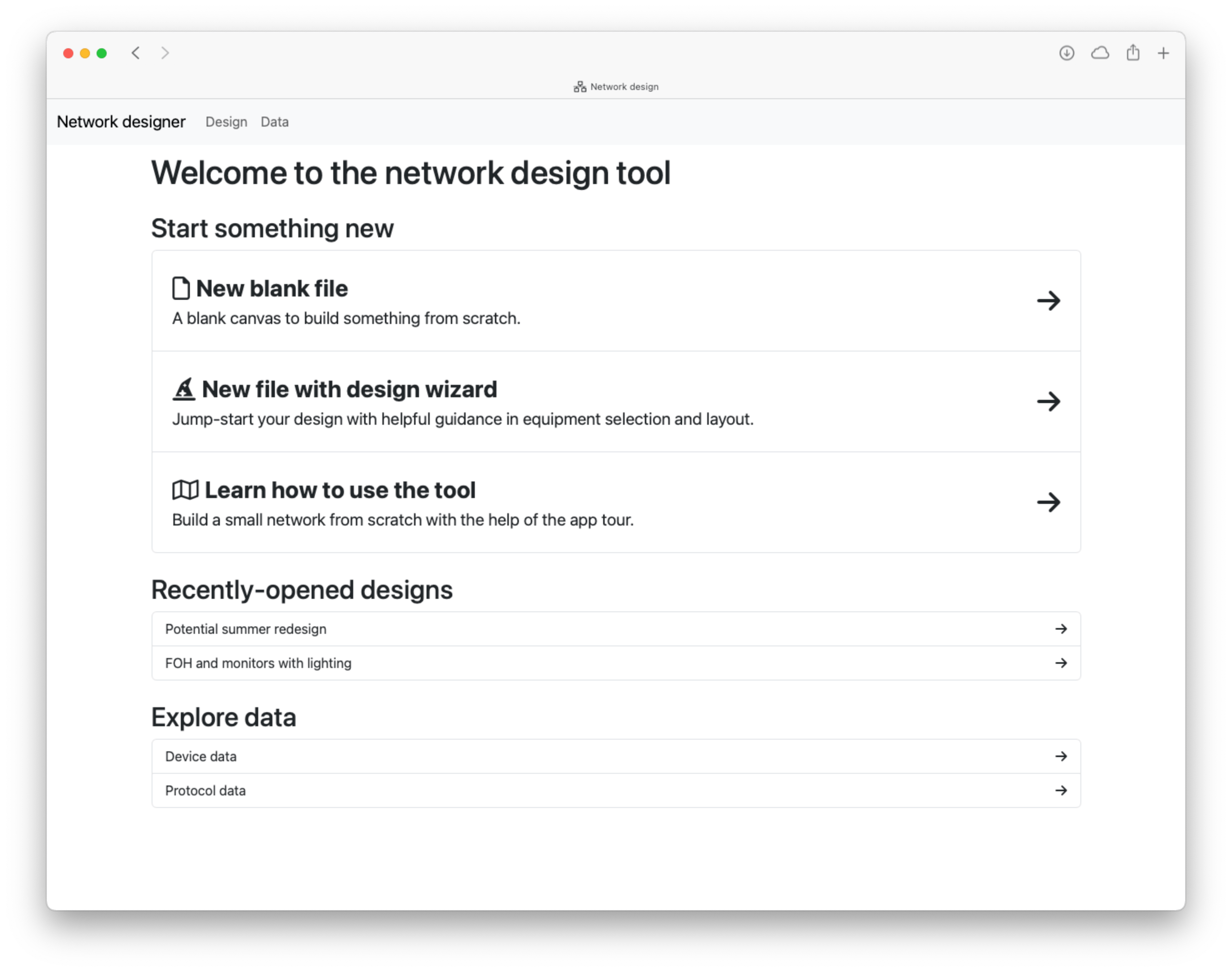

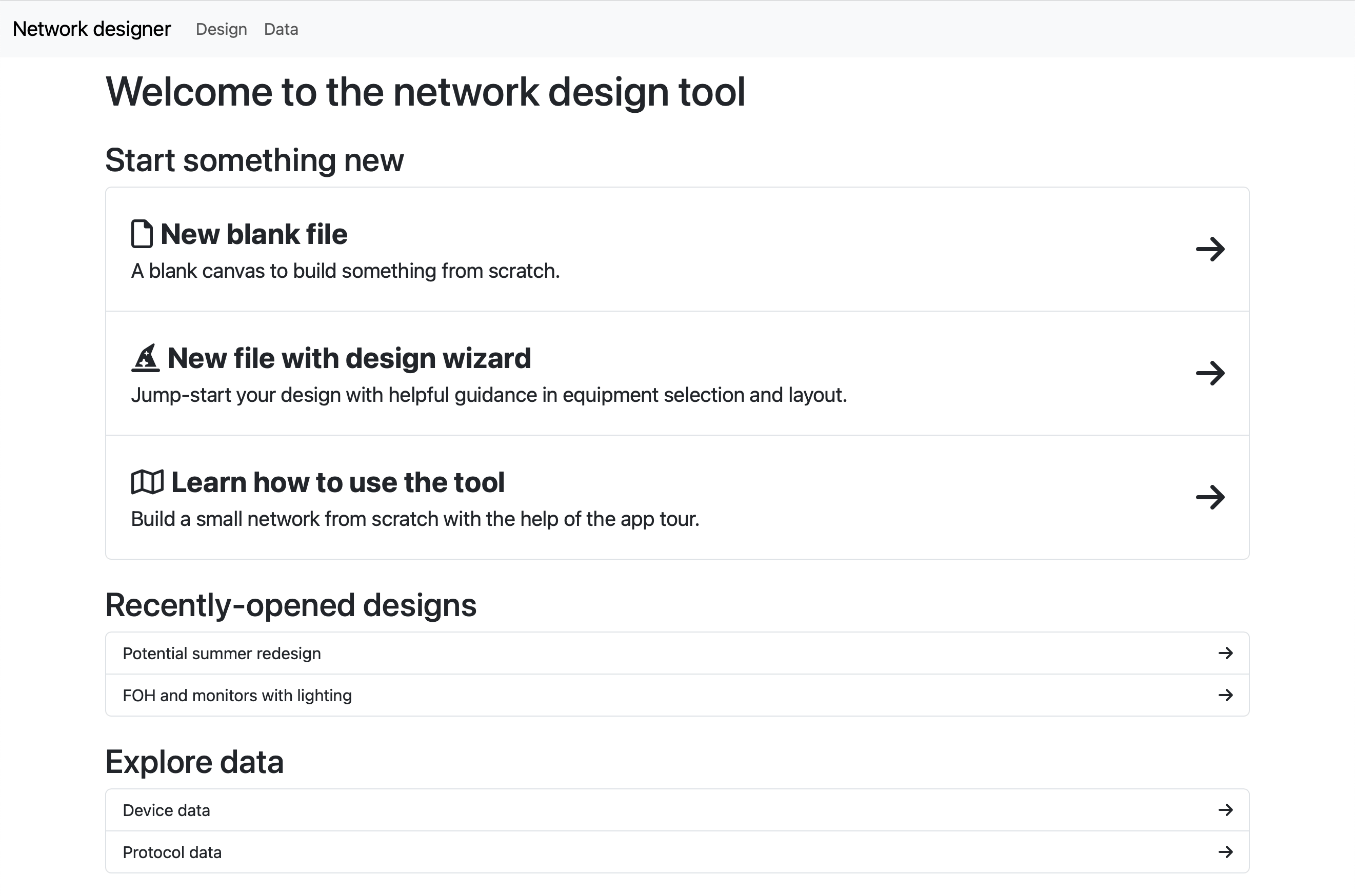

Figure 33: Application
homepage, with large buttons to start new things, open recent files, or start
browsing the database.
This prominent navigation makes it easy for users to find
what they are looking to do, and the inclusion of descriptive text for the
different ways users can start something new helps users with varying
experience find the best way to begin.

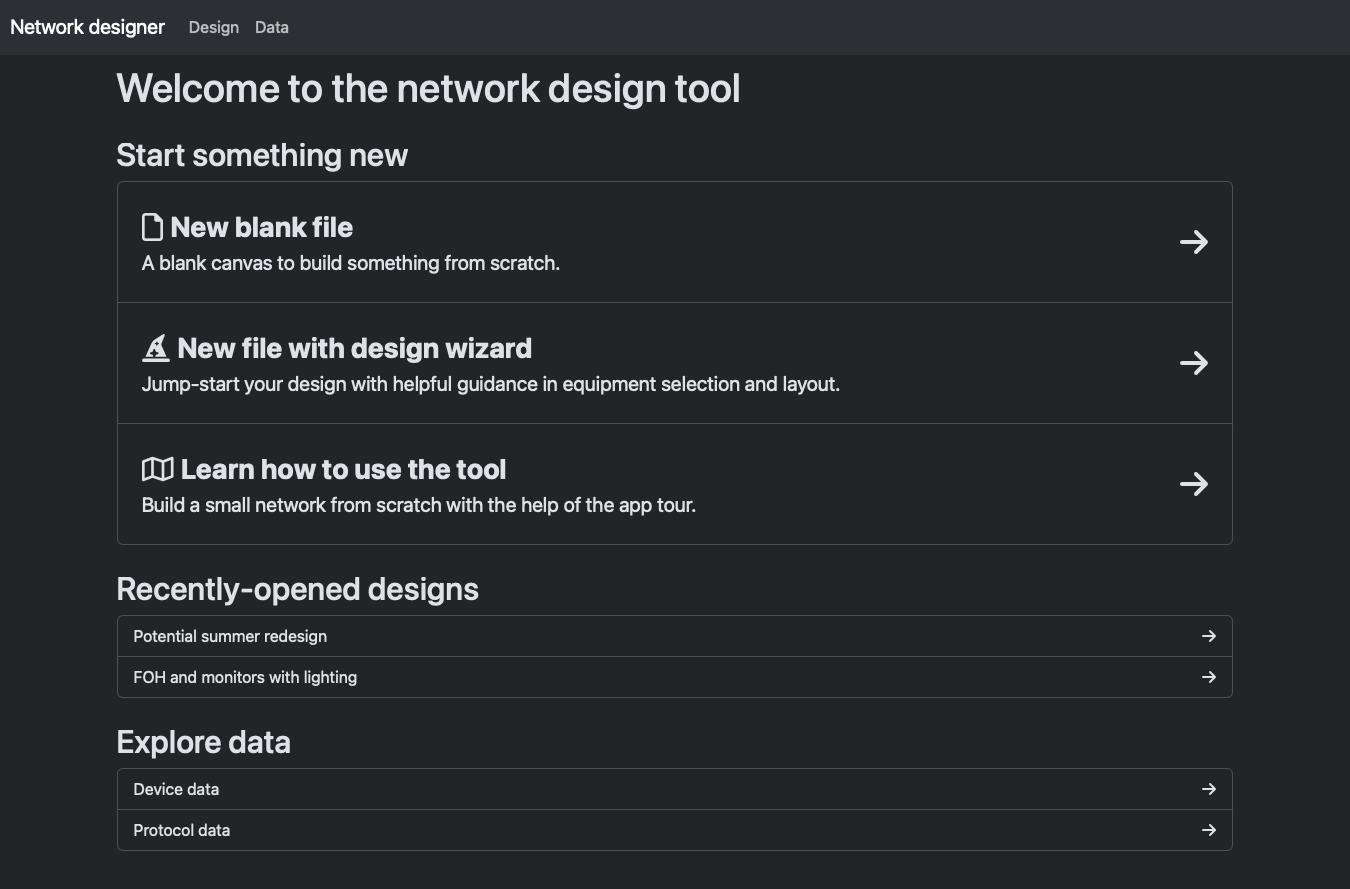

Figure 34: Application homepage
in dark mode.
The whole application is available in dark mode (Figure 34) and switches automatically based on the user’s operating system settings.
While ‘dark mode’ may be seen as a gimmick sometimes, it is often a popular
feature among users, and in this case has a functional benefit: this software will
likely be operated in dark theatres and dimly-lit backstage areas, so dark mode
will make it easier to read the screen and prevent someone’s display lighting
up the room during a show or rehearsal.
The requirements survey discovered people prefer a hands-on
approach, so the main design app is based around a map of the network, showing
all devices, their settings, and connections between each other (Figure 35). Using a map for design is supported by Nielsen’s second heuristic, matching
the system to the real world, since technicians can position devices anywhere
on the canvas and mirror how the system will be physically deployed. This map
appears in a primary workspace area on the left, with a tool pane on the right.
Figure 35: A small network
design in the tool. The map on the left shows the devices and switches in the
system, their settings, and connections. The tool pane on the right is
currently showing the different ways data can be presented instead of the map.
A set of seven user tasks and relevant sub-tasks were
identified, and these map to the tabs of the tool pane:
1. Views: See
the design in various formats.
a. Explore
the default map layout.
b. Modify
device and switch settings.
c. Move
devices around the map.
d. Connect
devices and switches together.
e. Get a
report of the necessary quality of service rules.
f. Get
a report of IP addresses in use.
g. Get a
report for each device and switch showing all the relevant configuration and
specification information.
h. Print any
report for distribution to a crew.
2. Add
device: Find and add hardware to the design.
a. Browse
information about specific devices and their features.
b. Filter
devices the tool knows about by category, inputs, outputs, to find devices
which meet the technician’s needs.
c. Add
devices to the design.
3. Add
switch: Specify and add switches to the design.
a. Provide
the details of a switch the user owns and add it to the system. The system asks
the user to enter the specification of a switch they have because this data
tends to be readily available – often written on the switch itself. This way,
the system supports any switch the user owns instead of a limited set the
system knows about.
4. Check
design: Perform automated validation of the design.
a. Run
checks: find devices and switches which are not connected to the network,
validate configuration settings, run custom protocol validation functions, check
throughput of each switch port, check PoE requirements are met and switches are
not over budget.
b. Learn how
to fix any problems which are found.
c. Quickly
identify where in the system the problem is (link to the exact option or node
with a problem).
5. Advice: Get
advice on how best to deploy the system, helping to reduce the impact of
potential problems which the system can’t check automatically.
6. IP
addressing: Configure addressing settings for the system.
a. Set the
network address range, or reset to a sensible default if the user doesn’t know
how to pick their own. Any valid address range is permitted, including
publicly-routable ones despite entertainment networks not usually being
connected to the Internet. This is because some protocols ignore the standard
link-local and private network ranges and pick their own, for example Art-Net[3]
describes a procedure to generate an address in the 2.0.0.0/8 subnet based on
device MAC address.
b. Auto-assign
addresses to all devices in the network.
7. Open and
save: File management.
a. Save
designs to the cloud.
b. Open other
designs.
c. Share
designs with other people.
Following Nielsen’s tenth heuristic, all options in tool
panes have support information inline (Figure 36). Depending on the option,
this information can range from a simple line explaining what the options mean,
telling the user where they would find the information they need, or
recommending a default option to choose if the user isn’t sure what to do.

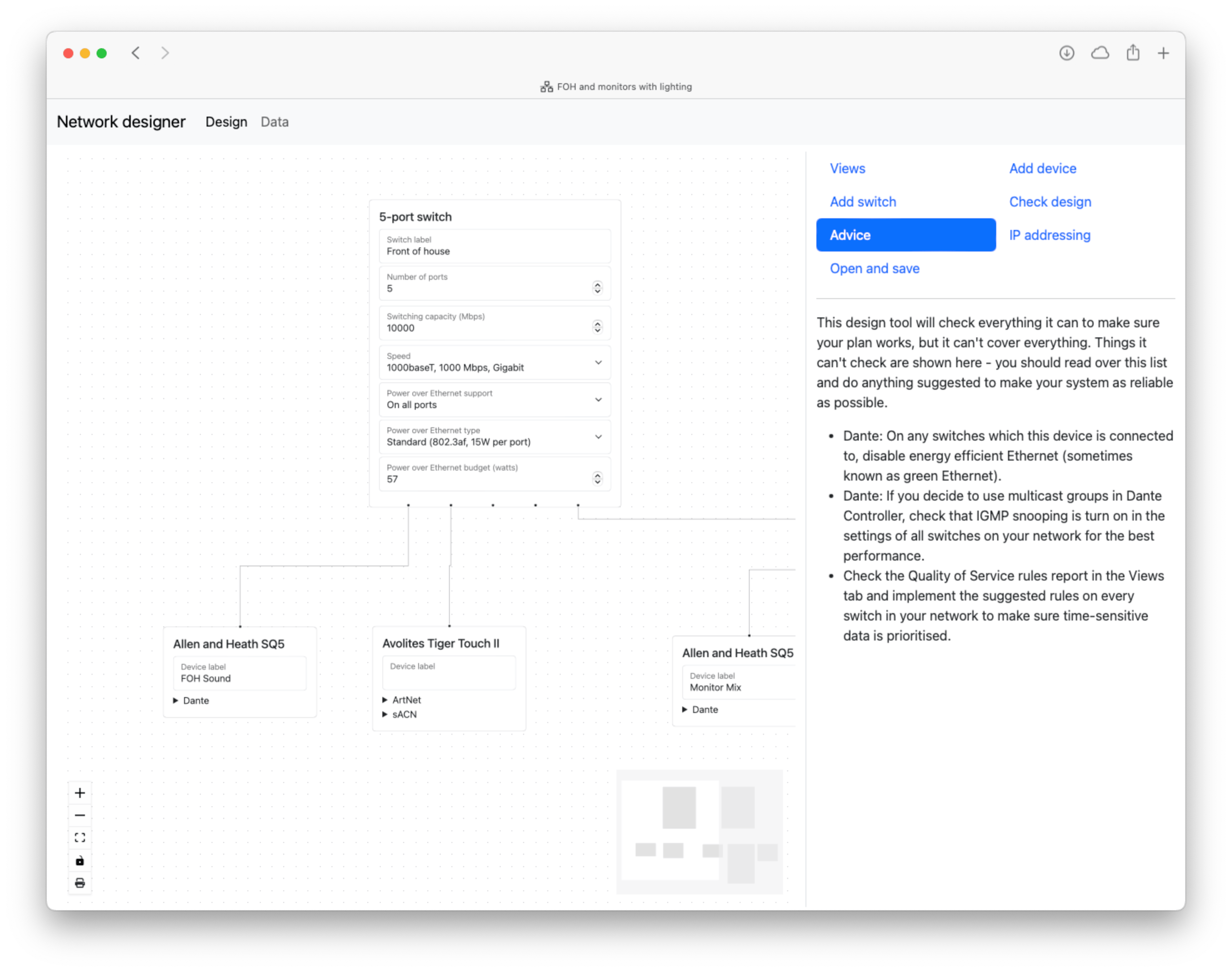

The “Check design” and “Advice” panes follow Nielsen’s ninth
heuristic, helping users diagnose and recover from errors (Figure
37). All error messages are written using the simplest language possible, and
where possible include a hint as to how the problem can be fixed. There is also
a link which takes the user directly to the device, switch, or configuration
option which needs to be changed, minimising the time they spend hunting around

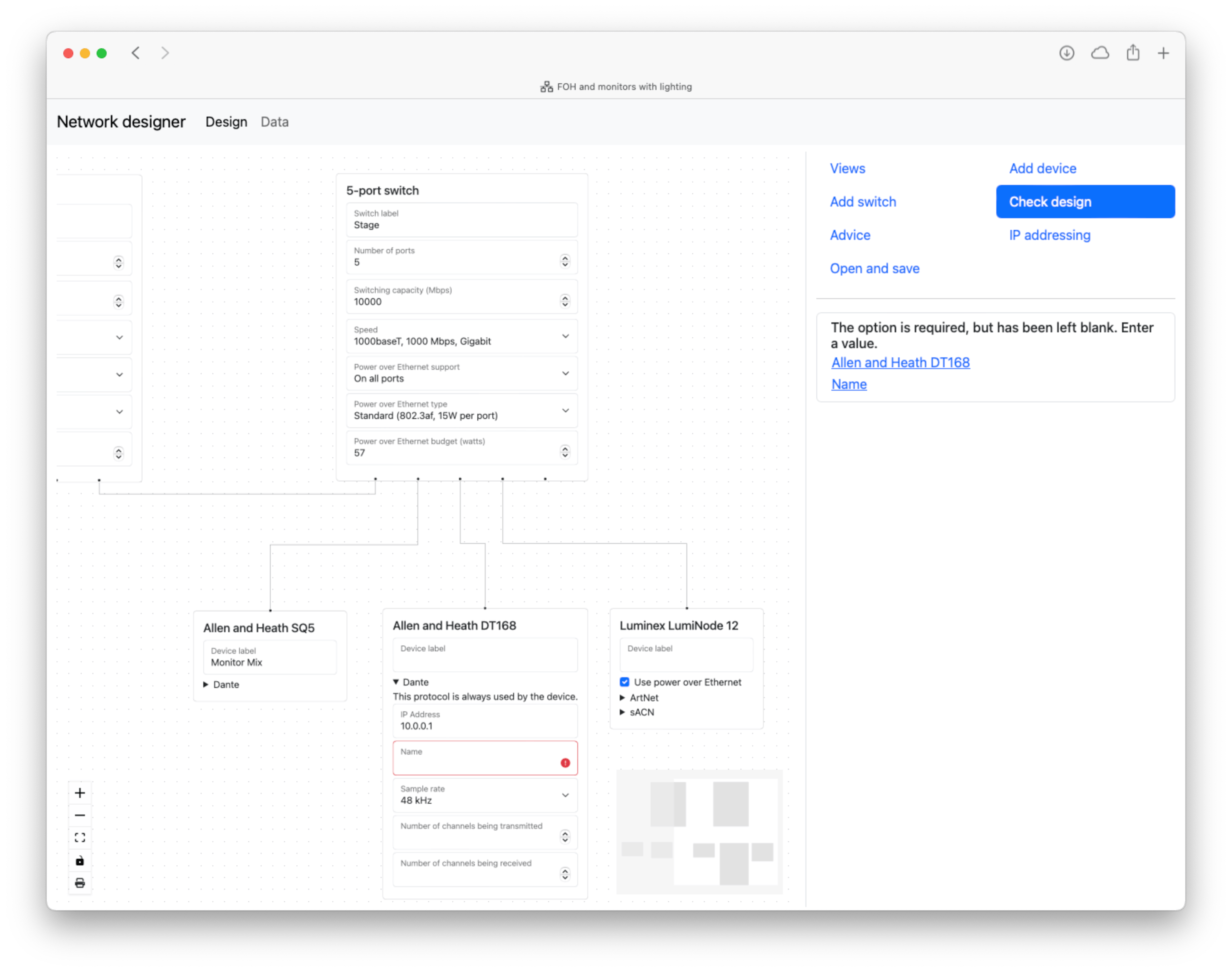

the map. Some types of errors are also indicated directly on the input element,
with a red outline supported by a warning icon.

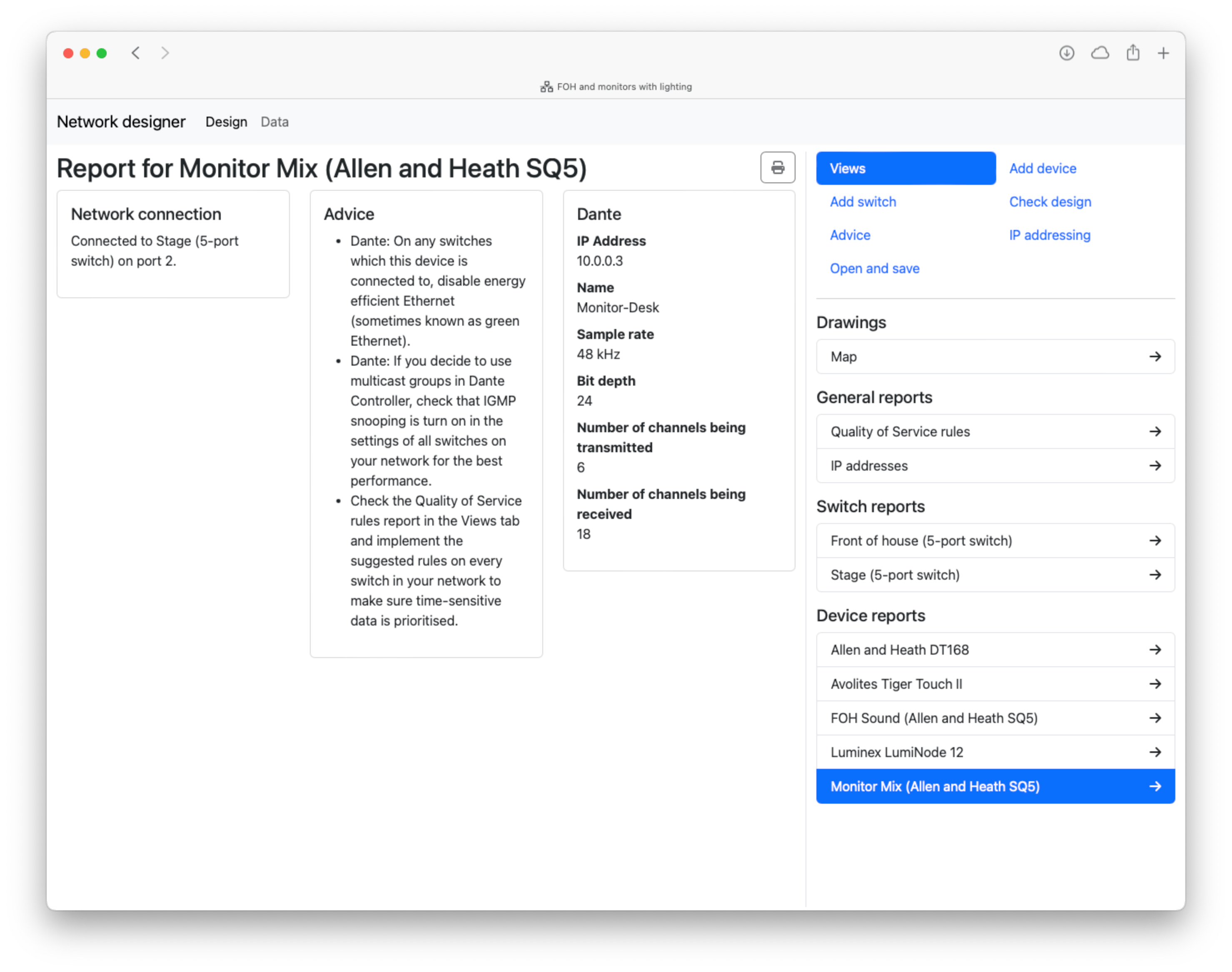

The set of reports was selected so that each report
generated corresponds to one task in the real world. This makes it easy to
communicate a design to a crew, since each setup task corresponds to a single
sheet of paper – this feature is particularly desired by the persona Fiona (Figure 16). On each report, a Print button is included to make it obvious that
this action is supported. Reports have print styles which remove all
interactive features, app navigation, etc, leaving printed documents
uncluttered and easy to read.

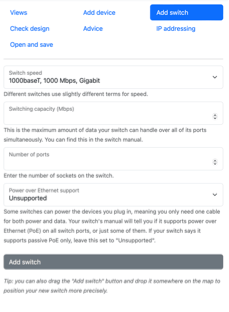

Figure 36: Partial screenshot
of the "Add switch" tool pane. There is descriptive text next to
every option, supporting users who might not be familiar with switch
terminology.

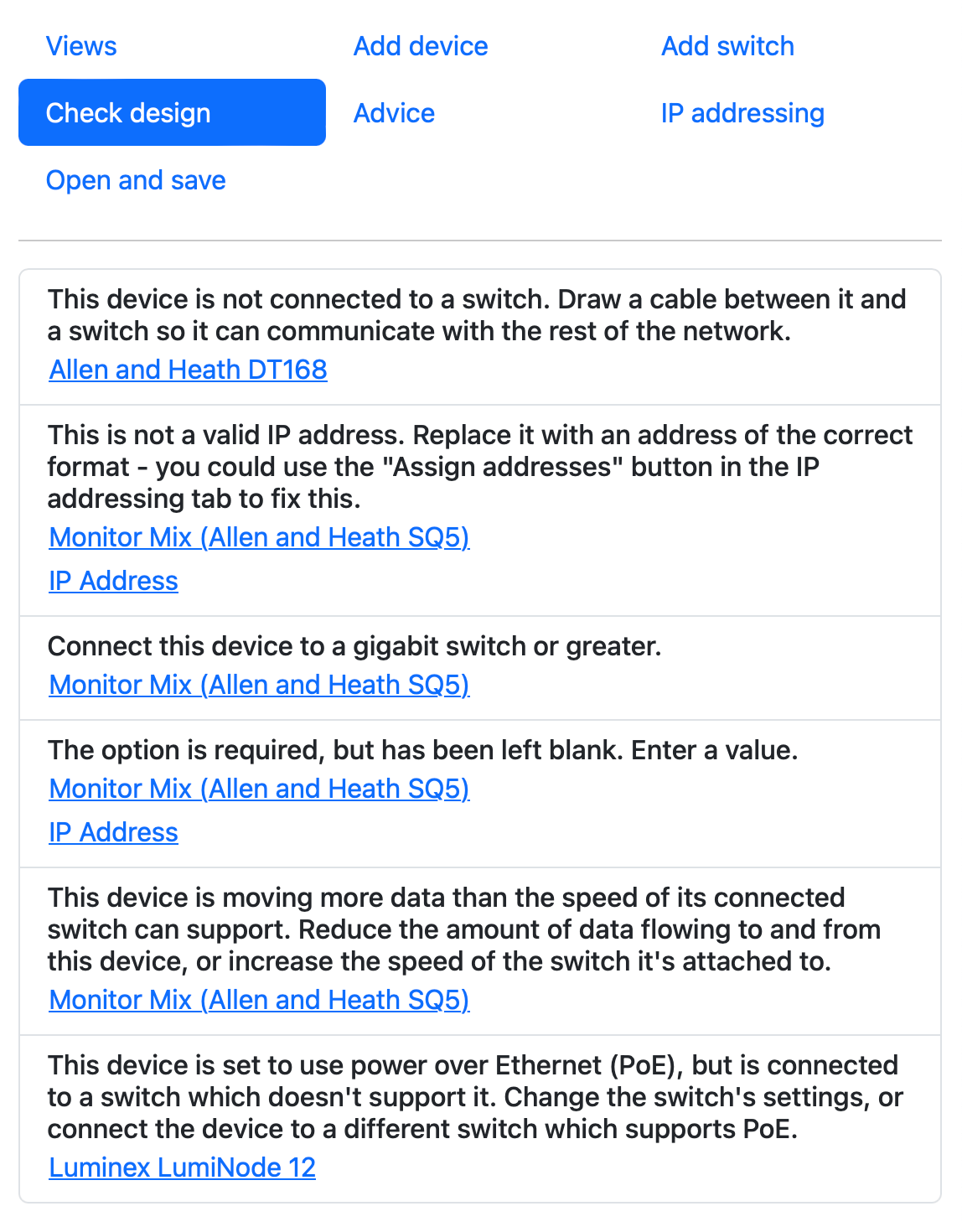

Figure 37: Partial screenshot
of the "Check design" tool pane. The pane indicates any issues with
the design which the system can detect, including links to the problem and help
to fix it.
Technicians are introduced to the application by an optional
tour. It is optional because users who have experience in other design software
or networks (like Lachlan, Figure 15) may prefer to just get started and work
it out independently, and forcing them through a tour would not be a good user
experience (nor would it likely be necessary).
The tour is written to be an introduction to both the tool
and the principles of building a small entertainment network. The user is
guided through all the tool panes in the application and given instructions on
how to use them to build a valid converged network sharing devices from
multiple departments.
There is a balance to be found here. A new application user
with great networking knowledge (like the persona Lachlan) may find it annoying
that the tour wants them to build a specific network, but a user with low
networking knowledge (like Evan, Figure 18) would probably appreciate the
guiding hand. To work towards this balance, the tour suggests what a user may
want to include in their network, but does not enforce it. Users can stray from
the instructions whenever they want and to any degree they want, but can
re-join the tour at any time without losing their work by clicking a pulsing
icon which appears on the interface element which the tour covers next.
Each tour step is presented in a popup box and the relevant
user interface element is spotlighted, with the rest of the page shaded. Some
steps proceed automatically when the user carries out the action (Figure 38), some are progressed by the user when they are ready by pressing “Next” (Figure 39). The content of the tour is in section 19.

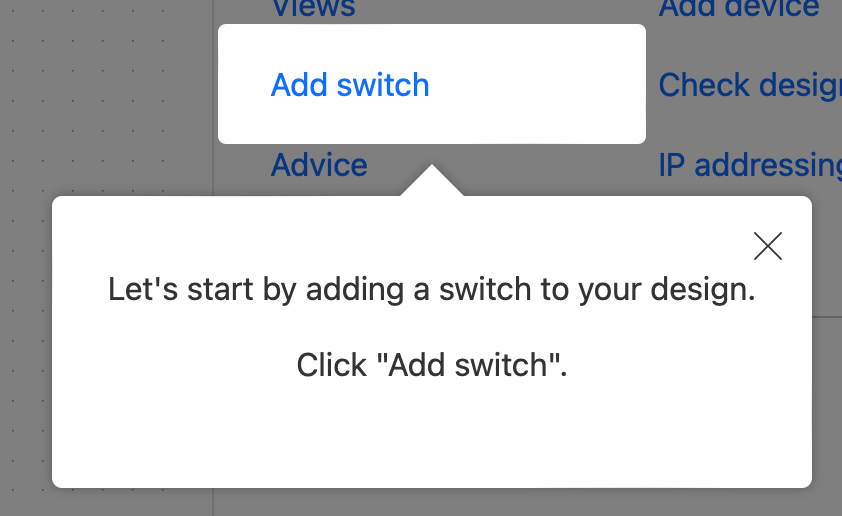

Figure 38:
A tour step highlighting a specific button which progresses when that button is
pressed.

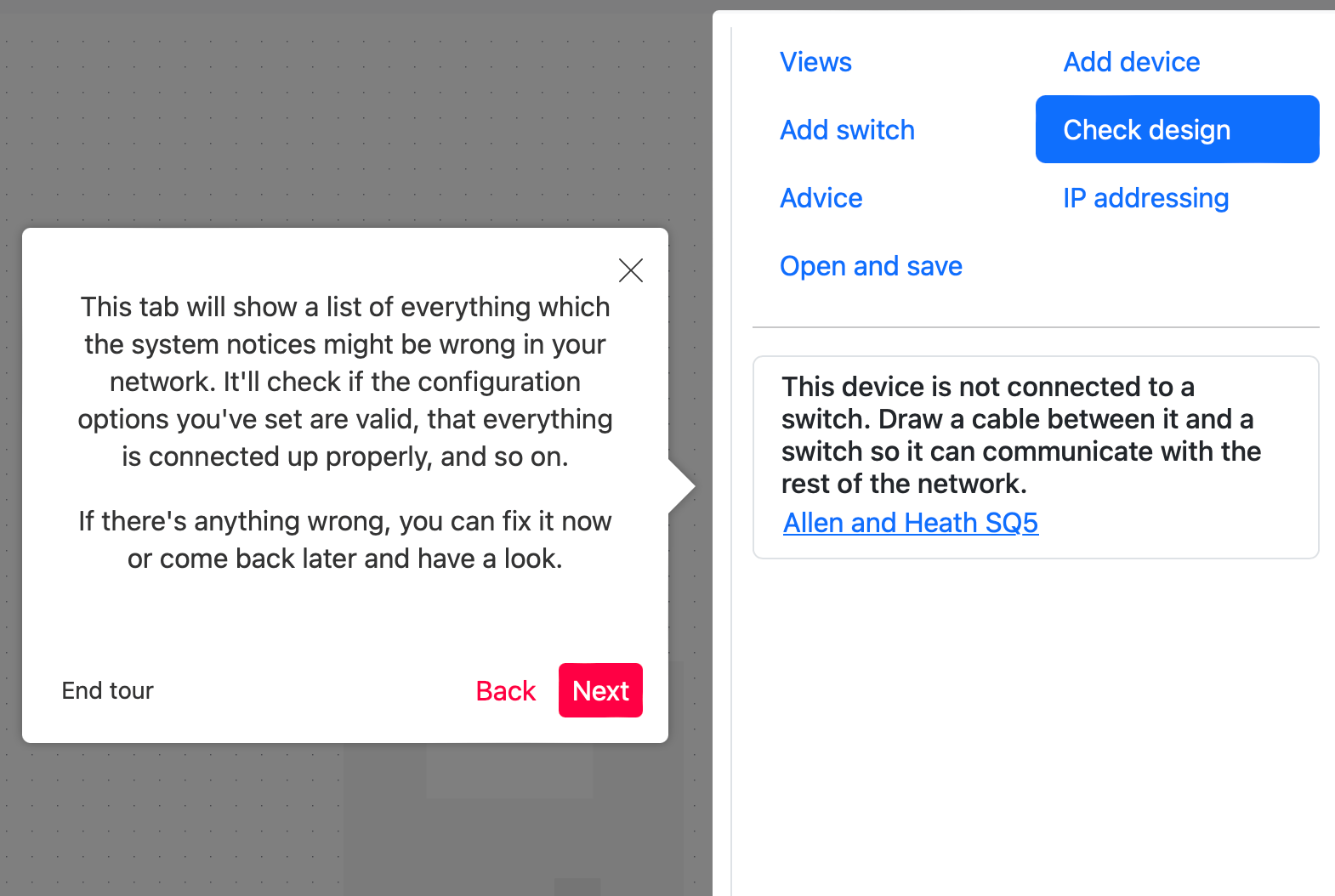

Figure 39: A tour step
highlighting the tool pane which progresses when the user selects
"Next".
At the end of the tour, users are invited to continue
working on the system they started (so users who deviated from the prescribed
tour can keep working without data loss), or start a new project from blank or
using the design wizard. This caters to the needs of any user type who has
followed through the tour, and nudges people towards continued application
exploration in the wizard.
The design wizard offers more ‘handholding’ for users
initially setting up their network. It is a guided process breaking the large
task of “design and specify a system” into smaller chunks:
1. “How many
locations do you need?”
This question starts the user off by thinking about where they need inputs and
outputs into their system, and thus where they will eventually need devices and
switches to be located.
2. “Give each
location a name.”
This name helps users remember which location is which, and will eventually be
used as switch labels.
3. “What do
you need in each location?”
The technician now specifies how many consoles, inputs, and outputs they need
in each location. This is a natural question to ask because all of this
information will be available from other plans which will have been prepared
for a show: for example, the necessary number of lighting universes will be
specified on lighting patch plans, and the number of sound inputs will be
included on band specifications.
4. “Which
protocols do you want to use?”
This step is the first time the wizard directly addresses a networking concept.
The user needs to select their preferred protocol for lighting, sound, and
video data transfer. This question is at a high enough level though that a user
should be able to pick a name they are familiar, because they will probably
know what at least some of the equipment they already own can support.
5. “Pick your
kit.” (Figure 40)
A tab is presented for each location. In each location’s tab, a set of meters
at the top indicate how much of the IO requirement the user specified has been
satisfied by the equipment they have selected. The user adds devices to the
location using the same user interface as the main design wizard (supporting
Nielsen 4), but with a new filtering option to only show devices which support
the protocols the user specified they want to use. Once a location’s
requirements are met, the meters show as full and the tab label is ticked.
6. The wizard
builds the network.
The wizard starts by creating an appropriately sized switch for each location,
meeting the requirements for power over Ethernet and so on. It specifies a
switch with enough ports for the location, rounded up to the common sizes for
switches (5-port, 8-port, 24-port, or 48-port). It then adds all the devices
needed in each location and connects them to the location’s switch, enabling
required protocols if they are optional and assigning an IP address to everything.
Finally, it reports what it has done to the user, and takes them to the “Check
design” tool pane which will indicate any fields which the wizard wasn’t able
to complete independently – such as filling in any mandatory protocol
configuration options which don’t have a default value.
Figure 40: In the design
wizard, users pick equipment to meet their requirements. There are two
locations in the tabs at the top: front of house is satisfied (indicated by the
tick), and stage is still missing parts (indicated by the yellow warning). Exactly
what is missing in a given location is indicated by the meters.
Each step of the wizard is presented on its own screen with
lots of descriptive text and help, making each stage as manageable and
understandable as possible. When selecting equipment for a location, the requirements
the user listed and how well the equipment they have specified meets those
requirements stays on screen at all times, so users remember their target and
what they’re working towards.
All stages of the wizard have a back button which will show
the contents of the previous step, so the user doesn’t lose progress if they need
to go back. There is also a Cancel option to stop the wizard and return home.
Although the user is asked to select which protocols they want to use and this
is used to filter the devices shown to them, they can disable the filter and
add any devices they like during the wizard, or ignore the requirements they
specified and build whatever they like. These options fulfil Nielsen 3, user
freedom and control.
Design files are stored in a cloud database, referenced by a
UUID. This method was chosen to simplify sharing: a link to the page is all
anyone needs to start collaborating on designs. The lack of account system both
reduces the barrier to entry for new users and invited collaborators and makes
it easy to view designs on shared PCs which are often installed in venues –
this would be particularly valuable for a persona like Evan, who is not
regularly in the theatre but may need to refer to design documentation in the
course of his work. Simultaneously though, the fact any user with the link can
edit the design is a downside of this approach. However, UUIDs are difficult to
guess, so it is unlikely that someone would guess the link to a design, and
users who have had the link shared with them are unlikely to make malicious
edits, since they can probably sabotage an event anyway in much easier and more
effective ways.
One of the non-functional requirements of the system is that
it is web-based. This requirement is borne out of the need for a cross-platform
and collaborative solution, which can be run on any machine so files can be
shared with colleagues easily. The web-based requirement and the rich ecosystem
of libraries available is what informed the decision to use JavaScript for the
implementation, with TypeScript used to improve the type-safety of the system
making the system more resilient than if it were in JavaScript alone.
The first library which was chosen was React Flow[44].
React Flow is a React component which allows for the creation of a node-based
UI. Since the
network map is a key user interface element, finding a library which offered a
reliable and customisable way to build the map was the priority when picking
the technologies to build the tool atop. React Flow is well-supported, used by
a variety of major software development companies, and has a good library of documentation
and examples, indicating it supported all the features needed and would be
reliable.
React Flow recommends the use of Zustand[45]
for state management, so Zustand was used in this project. Zustand makes it
easy for any component in the application to access the current state of the
flow (and thus of the user’s network design), making it easier to componentise
behaviour and reduce the amount of manual data passing which needs to happen
between parts of the app.
Since React Flow was selected, the wider application
framework needed to be based around React[46].

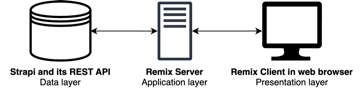

Remix[47]
is a React framework which adds a more prescriptive application structure over
the React foundations. Remix was selected because its nested routes and strong
data management features work well with the application design. It sits across
the application and presentation layers of the software architecture, as it
includes both a client and server component (Figure 41), and in the name of
improved performance and optimisation it can spread its computation across both
layers. For this reason, again, we will review the implementation of both of
these layers together. Each tool in the design tool pane is its own route, and
therefore manages all its own state and data loading independently, while still
appearing as one coherent application to the user. React components are used to
separate user interface elements and their associated logic into sensible
composable units, and these components could provide a foundation for user
interface plugins in future work.
Figure 41: Three-tier software
architecture annotated with the key technology used at each layer.
For user interface elements, Bootstrap[14]
was used. Bootstrap is a well-used and well-tested framework, so by using its
components and following its guidance, fulfilling Nielsen’s fourth heuristic
becomes easier and we make good progress towards a simple, understandable, and
accessible user interface.
The database is managed by Strapi[48].
Originally, Prisma ORM[49]
was used, but as described in section 10.2, this was replaced with Strapi
mid-way through the project. Strapi is highly-customisable so could easily
handle the intricacies of our data model, but most importantly it includes
user-friendly data management facilities as standard. This lifted a huge
development burden off the project, allowing us to focus on features which
support the core stakeholders of technicians trying to build networks, rather
than administrative teams managing the application database.
The first version of the database implementation used Prisma
ORM. Prisma specifies a JSON-like schema language and uses this to build a SQL
database, automatically managing schema updates and database upgrades as the
project progresses. From this schema, it generates a client including functions
for CRUD operations and type signatures for all data which the application can
use to interact with the database in a type-safe way.
During this first version, the data exploration interface
included functionality to create and edit devices and protocols, but as
described in section 10.4 above, this added a lot of extra development work.
The data model is reasonably complex, for example with how protocols may have any
number of configuration options each with differing types, so the editor user
interface was becoming equally complex, before even considering access
management and moderating submissions. The way that the Prisma client generated
type signatures was also not always entirely intuitive, leading to occasional
subtle errors with understanding the type of data returned from queries. As none
of this work supports the core project objectives, Prisma was removed.
Strapi was brought in to replace Prisma. Strapi is a content
management system at its core, but is incredibly flexible. Like Prisma, the
developer specifies a schema in a defined system (a web interface this time as
opposed to a text file), and Strapi builds an appropriate SQL database, then
manages updates and upgrades over the project lifecycle. Strapi has its own
administration panel for managing the content of the database – removing the
need for device and protocol editing to be part of the core application – and
also provides a REST API for CRUD operations on the data. The core application
can therefore query Strapi using an API key which gives it read-only permission
for all device and application data, and also the ability to write saved design
information back to the database.
Manually, type signatures for Strapi’s REST API responses
have been written and included in the core application codebase, which allows
for type safety to be achieved and in a more reliable and understandable way
than Prisma allowed.
In terms of deployment, Strapi offers flexibility as it can
be backed by SQLite, MySQL, or PostgreSQL by changing an environment variable.
The REST API offered also presents an opportunity for future
work, where the device and protocol information could be exposed as a public
API and support other projects and systems in the industry.
11.3
Frontend: application and presentation layers
React Flow allows you to specify any React component as a
node or an edge in its diagram and stores these components in a JSON structure.
This JSON is used throughout the entire application to represent the system
design, so the system does not need to map data between the Flow UI and its own
storage and manipulation data because they are one and the same. The flow JSON
is also what is stored in the database for users to save their designs for
later.
We have two custom flow nodes in use the application: one
for devices and one for switches. Each node includes the user interface of the graph
node itself, including the name of the device and the editing facilities for
the various configuration options. In the switch node, there is an object with
the metadata about the switch (port count, PoE information, etc). The device
node has similar, but its data object has the same type as the device record in
the database with an additional options field added (which includes the
currently-set value for any available configuration options). This approach
means the device data from the database is stored inside the node in the map,
resulting in design files which are completely self-sufficient and can
theoretically be loaded without needing to request device information from the
database.
The self-contained node approach is valuable throughout the
application for always having the relevant data at hand to generate reports and
so on, but most clearly useful in the “check design” validation tool.
Validation is implemented as a function for each validation task. Most
validation functions then iterate through all the nodes and edges in the design
and perform some check using the data stored within that node. Type guard
functions are available so the validation function knows whether a given node
is a device or a switch and can perform appropriate steps. This is probably not
the most efficient implementation as one run of validation would iterate
through the nodes in the design multiple times, but it does make the validation
code clear and easy to extend with more checks over time.
The validation feature will:
·
Find nodes not on the network – that is, devices which are not
connected to switches and switches which are not connected to other switches.
This step also identifies devices which were connected to a switch, but aren’t
any more because the switch was downsized. In this case, the user can fix the
problem by connecting the device to another port, or upsizing the switch again
– meaning a typo in the number of switch ports will not result in data loss.
·
Validate configuration options – ensuring constraints like
minimum or maximum value, uniqueness, and so on are met.
·
Check specified IP addresses are both of a valid format and
within the specified network range.
·
Run protocol validation functions for any special validation
checks. As described in section 10.2, these functions are wrapped in additional
error handling in the form of try/catch blocks to minimise the impact of errors
in the function. Depending on which protocol-specific function threw and error
and how it went wrong, different actions are taken – a problem may be reported
to the user, an error could be logged to the browser console, or the program
may continue using some default data and log the error to console.
·
Calculate the transmission throughput of each device by finding
the number of data channels in use for each protocol and using the protocol
flow and measurement data to calculate the expected throughput. This value
checks that the switch port speed can handle the transmission expected and that
the switch’s overall switching capacity is not overloaded.
·
Check the power over Ethernet requirements for each device,
ensuring the switch can deliver enough power over a single port for the device
and that the switch is not over its power budget across all ports.
·
At the time of drawing connections between devices, the system
checks that connections are only from device-to-device, device-to-switch, or
switch-to-device, but not device-to-device. Device-to-device connections are
appropriate in some contexts, but trivial to implement and restrict the number
of nodes on the network to two, so it is very unlikely a user planning a
network in the tool would want a device-to-device connection.
These validation steps identify a range of common
misconfigurations, including some subtle ones which a new networking user may
not foresee until it is too late. A future development could be to expand these
features to cover even more potential problems, perhaps by more thoroughly
modelling data flow across the entire network and taking into account how
unicast, multicast, and broadcast traffic moves across the network in different
ways. From this, as well as pointing out misconfigurations, the system could
offer intelligent suggestions on configuring IGMP snooping and other, more
advanced network management features.
Following Remix’s philosophy of “use the platform”, the
application relies on standard browser technologies as far as possible to avoid
re-inventing the wheel and ensure the user feels at home with a familiar user
interface (related to Nielsen 4). Some examples include that many of the
validation of configuration options use the HTML form validation API; the ID of
the currently-open file is included in the page URL so sharing the current page
with others to send them a design ‘just works’; and the in-app “share design” button
launches the browser or OS’ sharing pane. Dedicated print styles are included
for all sections of the frontend (including the data explore area which doesn’t
have any in-app print buttons), since printed paperwork is such a common way of
sharing information on events – by including these as standard print style
sheets, users get well-formatted print documents whether they use the in-app
buttons or their browser’s print functionality.
Devices and switches can be added to the design by dragging
and dropping them to the exact location on the map where they are desired, or a
fallback “Add” button is available. The “Add” button places the new device in
the centre of the current viewport so they don’t get lost somewhere else on the
map, and it is easy to move the device to exactly where you want it in the
design. The centre point which nodes are added has some randomness, to prevent
nodes being placed directly on top of each other and the technician losing
them.
Images of the implemented application are included in
section 20.
To begin, we review the requirements laid out at the start
of the project (section 8) and perform an initial, high-level description of
how well each requirement has been met. These descriptions are then expanded
throughout this section.
These are outlined fully in section 8.1.
·
Database construction: The database has been designed and
implemented. The dataset can be added to and updated through an administrator
interface (Figure 42), and accessed via a REST API which opens an opportunity
for future interoperability.
·
Design tool: The tool has been created backed by the
database and can validate a range of features (tested in section 22.2).
·
Accessibility of information: A user evaluation was
carried out, and the overall sentiment from the testers was positive. These
results are described in section 12.2.
Figure 42: Editing a device in
the database administrator interface.
These are described fully in section 8.1.
·
Extendibility: The dataset of device and protocol
information can be added to via a web interface, although this ability was
restricted to system administrators due to complexities around collecting data.
A variety of future validation conditions and requirements can be described
inside the database without needing to update the application. The database is
accessible via a REST API which opens more future development opportunities,
and the main codebase is componentised so can be updated easily in future. A
plugin architecture was not explored in this version of the tool, instead the
ability to store validation functions etc in the database was implemented.
·

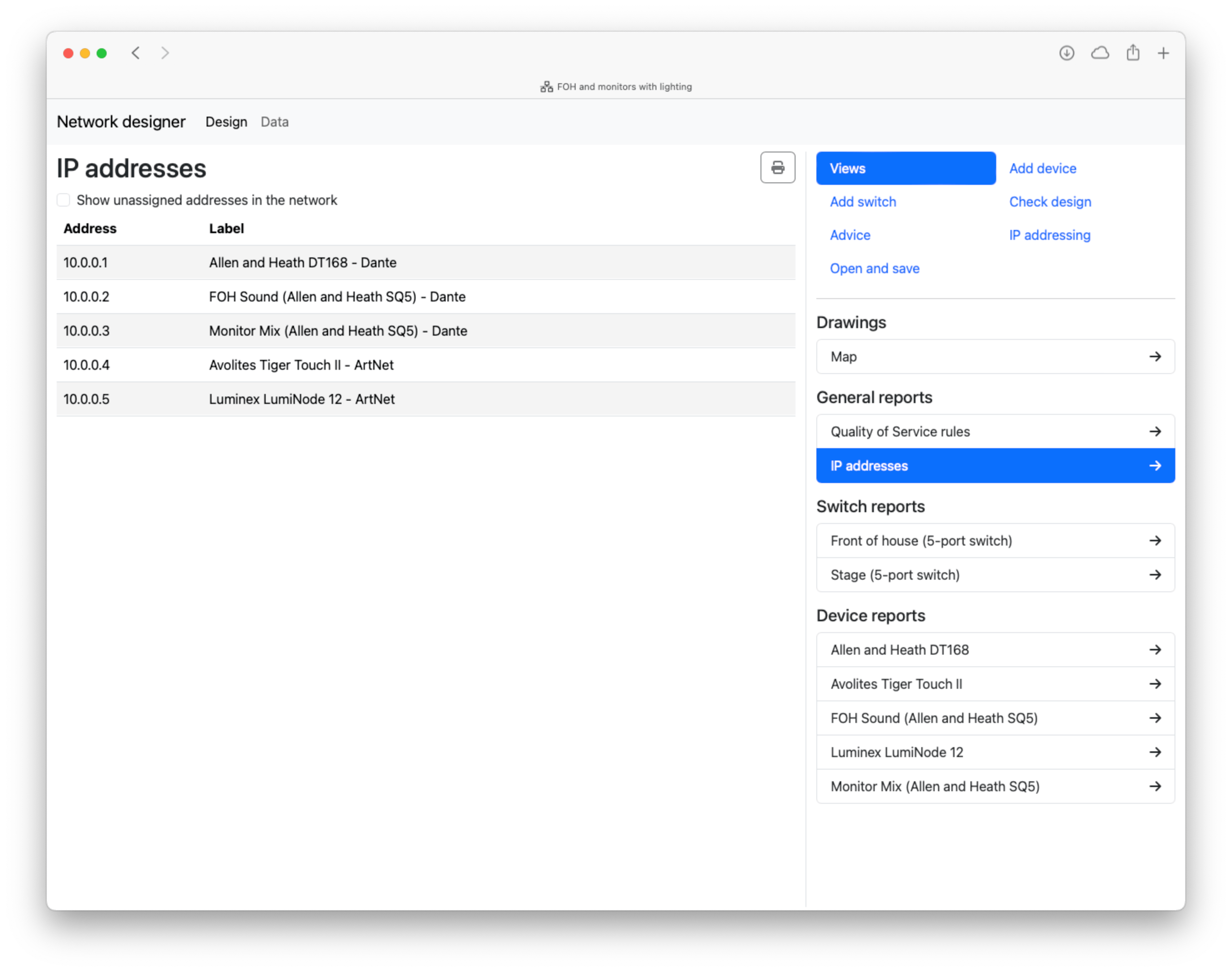

Documentation generation: The tool generates reports of
device and switch configuration, quality of service rules, IP address usage,
and can print its maps (tested in section 22.1).
·
Design wizard: Users specify where they need IO in their
system and how much, then are supported to choose devices which fit their
needs. The devices they choose are configured into a network by the system, and
the user is pointed towards any gaps they need to fill in themselves.
These are described fully in section 8.3.1.
1. Fully
met: The data import process has been implemented and the database schema
is expected to support a wide range of devices and protocols.
2.
Fully met: Users can select devices from a tool pane and drag
them into their design.
3.
Fully met: Users can draw connections between devices and
switches on the map.
4.
Partially met: The system can automatically assign valid IP
addresses to devices in the system and allows the user to customise them.
Protocol-specific identifiers may need to be completed manually by the user if
they cannot be pre-populated by a consistent value, but these are usually not
required.
5.
Fully met: The system validates the user’s design and reports any
problems, along with advice to fix them. For other things which cannot be
automatically detected, the system offers a list of advice. Future development
is still possible in this area, to check for more potential misconfigurations.
6.
Not met: This requirement was adjusted during the design stage
and thus not implemented as originally described. Plugin-like functionality in
the form of extendible validation rules has been implemented through storing
validation functions in the database, and other plugin features has been moved
to future work which focusses more on the system administrator stakeholder. The
application is written in a modular enough way that this future development
should be possible.
7.
Fully met: Printable documentation is generated by the
application.
8. Fully
met: The database of devices and protocols can be browsed from within the
application.
These are described fully in section 8.3.2.
1. Fully
met: The system is a cross-platform web application.
2. Met: Users
who participated in the survey had a range of networking experience and were
still able to use the tool (section 12.2).
3. Fully
met: Users who took part in the evaluation were able to design networks
with no guidance from outside the tool (section 12.2).
4. Met: Users’
overall sentiment and confidence level after using the tool was higher than
when they designed a network unsupported (section 12.2).
An evaluation questionnaire, included in section 1818, was distributed via the same channels as the requirements survey described
previously (section 8.4). This questionnaire was intended to assess whether
users felt more confident using the design tool than working without it, and
get some feedback to inform future development work and improvements.
The demographic of the respondents was similar to that of
the evaluation questionnaire, so we do not explore it in such detail here.
There were 5 respondents, ranging from 2-6 years of experience in the industry.
Everyone had experience with lighting with three listing it as their specialism
(the rest gave sound as their specialism). All but one respondent had
experience with sound, two mentioned it as their specialism. Two respondents
had experience with video.
60% of respondents occasionally use networks in their work
and the remainder use them all the time. 80% of respondents think they will use
networks more next year, 20% will use them the same amount. Three out of five
respondents have some responsibility over keeping an installation up to date,
and the rest operate systems specified for them.
People generally felt confident about working in their
specialism, giving a mean score of 1.6 (min 1, max 2) on the scale described in
Figure 12. As before, there was a much wider range of confidence ratings for
networking, with a mean of 0.8, median 1, min -2, max 2.
This shows that the evaluation has reached the target
audience, spanning a range of experience levels and expertise.
Respondents were asked to first design a network for a venue
in their normal way, using whatever drawings or notes they would normally make,
then do the same thing again using the design tool. After each task, they were
asked generally how they found the exercise, and how confident they were that
their solution would work. For the first question, they responded on a scale of
a very sad face to a very happy face with a neutral face in the middle, which
we map onto the -2 to +2 scale used elsewhere (Figure 12). For the second, they
used the same -2 to +2 confidence slider as they did when they reported how
confident they felt about their specialism and using networks in general.

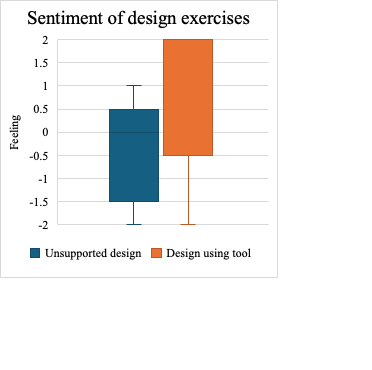

Figure 43: Respondents' overall
feeling after designing a network in their normal way, then supported by the
tool.

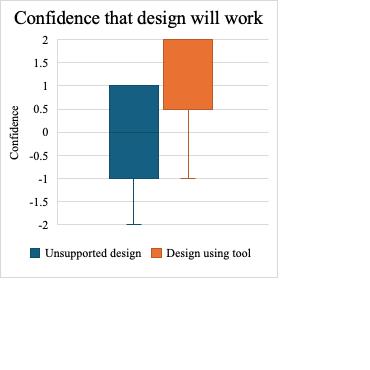

Figure 44: Respondents'
confidence that their design will work after designing in their normal way,
then supported by the tool.
In terms of overall sentiment, respondents were feeling
negative or only slightly positive after making their design without any
support (mean -0.4, median 0). After using the design tool, respondents were
more positive, although there is a spread of responses across the entire scale (mean
1, median 2) (Figure 43).
No respondent was completely confident that their design
would work in reality when working without the support of the tool, with a
spread of confidence ratings ranging from not at all confident to slightly
confident (mean 0, median 1) (Figure 44).
After using the tool, all respondents were more confident, with most feeling
completely confident their design will work and giving a +2 rating (mean 1, median
2).
These results suggest that the project has been successful
in its objective of inspiring confidence in technicians, but that there is
still further work possible to improve confidence.
The qualitative responses to the evaluation can be sorted
into four categories:
·
Fixed bugs:
o
Pressing enter in the device search box during the design wizard
would progress the wizard to the next step instead of running the search.
o
Some icons and buttons did not change colour when the application
changed from light mode to dark mode, so were not visible.
·
Unfixed bugs:
o
The application tour can cause some unexpected scrolling
behaviour. This is a bug related to how the library used to run the tour
interacts with the rest of the application, so more testing would be needed to
find exactly what this issue is and how to resolve it.
·
UI improvements: The majority of these refer to
non-functional requirement 3, where users should be able to operate the system
without separate training.
o
A user requested a print button to print maps. This already
exists, so needs to be made more obvious in the UI.
o A user
requested the ability to see devices and IP addresses together in the map and
change IP addresses more easily. Currently, this is included under device
protocol options (Figure 45). This feedback sounds like this user did not find
these options properly, so this UI could be reviewed or included more clearly
in the tour.
Figure 45: Partial screenshot
of a device node and its configuration options.
o
More zoom range on the map, so you can zoom out enough to see a
large network in its entirety.
o
Some steps of the tour do not have a back button, one user
requested this to be added.
· Feature
requests:
o
A user requested more customisability. This request would be best
informed by further user research to find exactly what users would like from
the application and new requirements generated.
o
Include a manual toggle between dark and light mode, instead of
following the operating system theme. This links to the previous new
requirement of greater customisability.
o
The application as users tested included some generic “Other”
devices (e.g. “Other Lighting Console”, “Other Sound Desk”) intended as a
solution to help users design systems including hardware which this project
didn’t have the ability to measure and add. One user requested the ability to
customise these “other” devices. Theoretically, this would not be necessary in
a final application as it would have a larger set of devices and protocols
available in the first place, but it may be worth investigating this
nonetheless so there is an ‘escape hatch’ if a technician needs to include a
device not in the system and does not have time to wait for it to be properly
added to the system by the administrators. This may result in a new functional
requirement.
o
A broader range of device types available, specifically a user
requested radio microphone receivers. This would be possible in a larger project
where more device data could be compiled.
o
One user asked for the ability to mark devices as not counting
towards a location’s requirements in the design wizard. The use case given for
this was to prevent things like the local input and output sockets on a control
console from contributing to the amount of IO in a location, since the
normally-installed console in a venue may be swapped out for a touring
company’s console so the IO available may change regularly. This is a new
functional requirement, and user testing would be required to check that this
doesn’t cause confusion.
One respondent reported that they still felt confused about
how to create a network, and would like more explanation of the different
hardware and the likely IO requirements in different locations. It is difficult
to decide the best way for this to be included in the application: this need
may best be met by a more comprehensive version of the tour, integration with
other design tools to explore IO requirements and hardware options, or perhaps
was a consequence of the open-ended nature of the exercise presented as part of
the questionnaire.
Overall, users seemed generally happy with the system and
the evaluation has given some good guidance for future
user research focuses and development activities. The fact users had a range of
feature requests suggests they could envisage using this tool again in future,
so it is filling a current gap in the market.
Following the ISO 9241-210 standard, human-centred design
requires an iterative approach informed by user feedback. From the requirements
elicitation, design, and user evaluation processes carried out in this project,
some suggestions of future work for the next iteration of this project include:
·
A project focussing on the requirements of device manufacturers,
protocol-designing organisations, and potential system administrators of this
application, to get a clearer picture of their requirements from a tool like
this.
·
Adding a plugin system, so different devices and protocols can
create custom UI elements for configuring their devices and protocols.
·
Improving the user experience on mobile devices, so it is easier
to reference the tool in the field. This would involve prototyping different
ways to manipulate the potentially-large network map on a small screen and
getting feedback from users.
·
Measuring more protocols and devices, expanding the dataset to
support more equipment.
·
Exposing the database API publicly, encouraging its use by
projects with similar goals to ours. If there is commercial interest, access to
this API could be monetised.
·
Further user involvement though more detailed and targeted
questionnaires and focus groups. Now that one round of user requirement
elicitation and evaluation have happened, the project has a clearer idea of
what users may want. More interaction with stakeholders will help to focus
these ideas further by clarifying open questions and prioritising different
features.
This project met its objectives, following the principles of
ISO 9241-210 to develop a tool to design networks in entertainment venues. By
measuring real devices and reviewing protocol specifications, a database to
store useful information about networked entertainment technologies was created
and populated, with avenues to expand the dataset with more information in
future. Through two rounds of interaction with real stakeholders, a requirement
specification was drawn up, the system designed and implemented, then assessed
against the project requirements. Users reported feeling more positive about
network design after using the tool and offered helpful feedback. The feedback
and evaluation can inform future work to develop this project further, continuing
to make computer networks and their benefits available to more people in the entertainment
industry.
[1] Allen
& Heath. SQ MixPad. Allen & Heath. Retrieved February 5, 2024
from https://www.allen-heath.com/hardware/sq/sq-mixpad/
[2] Ariel Ortiz Ramirez. 2000. Three-Tier
Architecture. Linux Journal 2000, 75es (July 2000), 7-es.
[3] Artistic Licence. 2023. Art-Net 4
Specification.
[4] Audinate. 2018. Dante Audio System Application
Diagrams.
[5] Avolites. Tiger Touch II. Avolites.
Retrieved April 18, 2024 from
https://www.avolites.com/product/the-tiger-touch-ii/
[6] Richard Cabot. High-resolution multi-channel
audio interconnection (HRMAI).
[7] Richard C Cabot. Audio applications of networks
- High-performance streaming audio-over-IP interoperability.
[8] ESTA. 2018. ANSI E1.31 — 2018 Entertainment
Technology Lightweight streaming protocol for transport of DMX512 using ACN.
[9] Jennifer L. Ward. 2010. Persona Development and
Use, or, How to Make Imaginary People Work for You. October 2010. . Retrieved
April 17, 2024 from
https://digital.lib.washington.edu/researchworks/bitstream/handle/1773/19303/personasPaper-2010LAC-ward.pdf?sequence=1&isAllowed=y
[10] John Huntington. 2007. Control Systems for
Live Entertainment.
[11] Jon Yablonski. 2020. Laws of UX: Using
Psychology to Design Better Products & Services. O’Reilly.
[12] Mohammad Amin Kuhail, Shahbano Farooq, Rawad
Hammad, and Mohammed Bahja. 2021. Characterizing Visual Programming Approaches
for End-User Developers: A Systematic Review. IEEE Access 9, (2021),
14181–14202. https://doi.org/10.1109/ACCESS.2021.3051043
[13] Magnolia International Ltd. Midas | Product |
M32C. Retrieved February 5, 2024 from
https://www.midasconsoles.com/product.html?modelCode=P0BM8
[14] Mark Otto, Jacob Thornton, and Bootstrap
contributors. Bootstrap. Retrieved April 23, 2024 from
https://getbootstrap.com/
[15] Jakob Nielsen. 1994. Enhancing the explanatory
power of usability heuristics. In Proceedings of the SIGCHI conference on
Human factors in computing systems celebrating interdependence - CHI ’94,
1994. ACM Press, Boston, Massachusetts, United States, 152–158.
https://doi.org/10.1145/191666.191729
[16] Rick Kreifeldt. AVB for Professional A/V Use.
AVnu Alliance.
[17] Wayne Howell. 2009. Rock Solid Ethernet
(2nd ed.). Entertainment Technology Press.
[18] 2018. American National Standard ANSI E1.11 –
2008 (R2018) Entertainment Technology—USITT DMX512-A Asynchronous Serial
Digital Data Transmission Standard for Controlling Lighting Equipment and
Accessories. Retrieved January 28, 2024 from
https://tsp.esta.org/tsp/documents/docs/ANSI-ESTA_E1-11_2008R2018.pdf
[19] 2018. DiGiCo Opens Up the SD Range with Generic
OSC control. DiGiCo. Retrieved February 5, 2024 from
https://digico.biz/digico-opens-up-the-sd-range-with-generic-osc-control/
[20] 2020. So you’re adding Dante to your network?
[21] 2021. OSC index. Retrieved February 5, 2024 from
https://opensoundcontrol.stanford.edu/index.html
[22] 2023. The Big Freelancer Survey 2023.
Freelancers Make Theatre Work.
[23] 2023. NDI 5.6 White Paper 2023. Vizrt NDI
AB. Retrieved February 2, 2024 from
https://ndi.video/wp-content/uploads/2023/09/NDI-5.6-White-Paper-2023.pdf
[24] Meet Dante. Dante. Retrieved February 10,
2024 from https://www.getdante.com/meet-dante/
[25] Why MIDI Matters. The MIDI Association.
Retrieved February 5, 2024 from https://midi.org/midi-articles/why-midi-matters
[26] Dante Certification Program | Audinate | Dante
Pro AV Networking. Retrieved January 29, 2024 from
https://www.audinate.com/learning/training-certification/dante-certification-program
[27] Cisco Modeling Labs. Cisco. Retrieved
February 4, 2024 from
https://www.cisco.com/c/en/us/products/cloud-systems-management/modeling-labs/index.html
[28] GigaCore switches - Luminex. Retrieved February
4, 2024 from https://www.luminex.be/products/gigacore/
[29] Araneo - AV network topology viewer. Luminex.
Retrieved February 4, 2024 from
https://www.luminex.be/products/software/araneo/
[30] Entertainment & Lighting - Design Software |
Vectorworks Spotlight. Retrieved April 28, 2024 from
https://www.vectorworks.net/en-GB/spotlight
[31] Ergonomics of human-system interaction -
Human-centred design for interactive systems.
[32] Ion Features. Electronic Theatre Controls.
Retrieved April 18, 2024 from
https://www.etcconnect.com/Products/Legacy/Console/Eos-Family/Ion/Features.aspx
[33] Behringer | Product | X32. Behringer.
Retrieved April 18, 2024 from
https://www.behringer.com/behringer/product?modelCode=0603-ACE
[34] Behringer | Product | X-DANTE. Behringer.
Retrieved April 18, 2024 from
https://www.behringer.com/behringer/product?modelCode=0606-ABX
[35] Dante A168D STAGE. DiGiCo. Retrieved
April 18, 2024 from https://digico.biz/4rea4_components/a168d-stage-copy/
[36] Audinate - Dante AVIO 2-Channel Analog Input. Dante.
Retrieved April 18, 2024 from
https://www.getdante.com/product/audinate-dante-avio-2-channel-analog-input/
[37] Avenue & Arena - Resolume. Resolume.
Retrieved April 18, 2024 from https://resolume.com/software/avenue_arena
[38] NDI HX Camera: Turn your phone into a live video
source. NDI. Retrieved April 18, 2024 from
https://ndi.video/tools/ndi-hx-camera/
[39] Wireshark. Retrieved April 16, 2024 from
https://www.wireshark.org
[40] How to Implement Dante for Audio. Dante.
Retrieved April 20, 2024 from
https://www.getdante.com/products/solutions-for-manufacturers/dante-for-audio/
[41] Fixture Library Hub. Retrieved April 20, 2024
from https://fixture-library-hub.etcconnect.com/help
[42] Avolites Personality Library. Retrieved April
20, 2024 from https://personalities.avolites.com/?mainPage=Downloads.asp&
[43] ChamSys MagicQ Downloads. ChamSys.
Retrieved April 20, 2024 from
https://chamsyslighting.com/pages/magicq-downloads
[44] Node-Based UIs in React – React Flow. Retrieved
April 23, 2024 from https://reactflow.dev/
[45] Zustand. Retrieved April 28, 2024 from
https://zustand-demo.pmnd.rs/
[46] React. Retrieved April 23, 2024 from
https://react.dev/
[47] Remix - Build Better Websites. Retrieved April
23, 2024 from https://remix.run
[48] Strapi - Open source Node.js Headless CMS 🚀. Retrieved April 23,
2024 from https://strapi.io/
[49] Prisma | Simplify working and interacting with
databases. Prisma. Retrieved April 23, 2024 from https://www.prisma.io
1. How
long have you been working in the entertainment industry in a technical role?
a. [Answer
by slider from 0-40 years.]
2. Which
technical areas do you have experience in? Select as many as you like.
a. Lighting
b. Sound
c. Video
d. Other [free
text]
3. Which
technical department would you say is your specialism?
a. Lighting
b. Sound
c. Video
d. Other [free
text]
e. I don't
have a specialism
4. Please
rate your confidence in each of these areas.
[using a slider from -2 to +2, where -2 is labelled “Not confident, I would
need lots of help to do tasks in this area”, 0 is labelled “No experience or
not sure”, and +2 is labelled “Very confident, I could do most tasks in this
area independently and help others too”]
a. [The
specialism selected in question 4, or “General technical crew work” if not
answered or no specialism indicated]
b. Setting up
and using computer networks in your work
5. How
regularly do you use computer networks in your work?
a. Never
b. Occasionally
(e.g. to remote control a console or connect one lighting console to one node),
but I mostly rely on analogue and point to point-solutions like multicores,
AES50, SLink, SDI, etc
c. All the
time, computer networks are a core part of the system design where I work
d. Other [free
text]
6. Do you
think your use of computer networks will change over the next year?
a. I think
I'll use networks less
b. I think
I'll use networks about the same amount
c. I think
I'll use networks more
d. Other [free
text]
7. How much
choice and control do you have over the equipment you use in your work?
a. The
systems I use are specified by someone else, I just operate them
b. I have
some responsibility over keeping an installation up-to-date and modifying its
design
c. I'm
regularly designing and setting up systems from scratch (designing
installations, touring)
d. Other [free
text]
8. To
increase your confidence using computer networks at work, what activities would
you be likely to do? You can select as many options as you like or add your
own.
a. Attend
training courses
b. Read
reference material (books, etc)
c. Use design
tools
d. Practice
and try to learn on the job
e. Other [free
text]
9. What
features would you like from a network design tool intended for entertainment
venues?
a. Access to
a database of information about protocols and devices
b. Options to
experiment with and test different setups
c. Ways to
learn about new topics and concepts
d. Reassurance
that plans I have made will work in reality
e. Other [free
text]
1. To confirm
you're eligible to participate in this questionnaire, please select the
appropriate statement from the options. [required]
a. I am 18
years old or older and work or volunteer in the entertainment industry
b. I am
younger than 18 years old and/or do not work nor volunteer in the entertainment
industry [leads to termination of survey with no response recorded]
2. How long
have you been working in the entertainment industry in a technical role?
a. [Answer
by slider from 0-40 years.]
3. Which
technical areas do you have experience in? Select as many as you like.
a. Lighting
b. Sound
c. Video
d. Other [free
text]
4. Which
technical department would you say is your specialism?
a. Lighting
b. Sound
c. Video
d. Other [free
text]
e. I don't
have a specialism
5. Please
rate your confidence in each of these areas.
[using a slider from -2 to +2, where -2 is labelled “Not confident, I would
need lots of help to do tasks in this area”, 0 is labelled “No experience or
not sure”, and +2 is labelled “Very confident, I could do most tasks in this
area independently and help others too”]
a. [The
specialism selected in question 4, or “General technical crew work” if not
answered or no specialism indicated]
b. Setting up
and using computer networks in your work
6. How
regularly do you use computer networks in your work?
a. Never
b. Occasionally
(e.g. to remote control a console or connect one lighting console to one node),
but I mostly rely on analogue and point to point-solutions like multicores,
AES50, SLink, SDI, etc
c. All the
time, computer networks are a core part of the system design where I work
d. Other [free
text]
7. Do you
think your use of computer networks will change over the next year?
a. I think
I'll use networks less
b. I think
I'll use networks about the same amount
c. I think
I'll use networks more
d. Other [free
text]
8. How much choice
and control do you have over the equipment you use in your work?
a. The
systems I use are specified by someone else, I just operate them
b. I have
some responsibility over keeping an installation up-to-date and modifying its
design
c. I'm
regularly designing and setting up systems from scratch (designing
installations, touring)
d. Other [free
text]
9. Please
take some time to think through a network you might set up in your work. Feel
free to note your ideas down on paper and do any drawings or plans you'd
normally do while setting up a network, you won't need to submit them.
Include control consoles from different departments, lighting nodes, stage
boxes, and any other digital equipment you're familiar with. Think about cable
runs, addresses, and how devices will communicate.
How did you find that exercise?
a. [Answer
by smiley face from very sad to very happy.]
10. How confident are you that
your solution will work?
a. [Answer
using a slider from -2 to +2, where -2 is labelled “I didn't finish or I know
my solution won't work”, 0 is labelled “It might work, but I'm not sure”, and
+2 is labelled “My solution will definitely work”]
11. Now, try copying your system
design from the previous step into our design tool. Open the tool
in a new tab so you can come back to this questionnaire when you're finished.
If you didn't finish a design in the last step, feel free to start something
new now.
What device did you use the tool on?
a. Desktop
computer
b. Laptop
c. Tablet
d. Mobile
phone
e. Other [free
text]
12. Which web browser did you
use the tool on?
a. Chrome
b. Firefox
c. Safari
d. Edge
e. Other [free
text]
13. How did you find that
exercise?
a. [Answer
by smiley face from very sad to very happy.]
14. How confident are you that
your solution will work?
a. [Answer
using a slider from -2 to +2, where -2 is labelled “I didn't finish or I know
my solution won't work”, 0 is labelled “It might work, but I'm not sure”, and
+2 is labelled “My solution will definitely work”]
15. Did you have any problems
using the tool?
a. [Free
text]
16. Is there anything missing
from the tool that you think would make the task easier?
a. [Free
text]
17. Do you have any other
feedback about the tool, in general or compared to the previous design
exercise?
a. [Free
text]
|
Tour dialogue
|
Highlighted UI element
|
Progress by pressing
|
|
Welcome to the tour! This will guide you through the main
features of the app as we build a small network together.
|
None
|
Next
|
|
Let's start by adding a switch to your design.
Click "Add switch".
|
“Add switch” tool button
|
Add switch
|
|
To make a switch, enter the details of a real switch you
have, or type in the following example values:
Switch speed
1000baseT, 1000 Mbps, Gigabit
Switching capacity
10000
Number of ports
5
Power over Ethernet support
Unsupported
Press "Add switch" twice to create two
switches, then press "Next" to continue.
|
Tool pane
|
Next
|
|
In the network map on the left, the switches we've just
made have appeared. You can edit any of the settings you chose when you made
the switch using the options in the box.
You can click and drag anything on the map to move it
around.
Try labelling each switch so you know which is which as we
move through the tour - perhaps name one "Stage" and one
"Front of house".
Press "Next" when you're ready to continue.
|
Network map
|
Next
|
|
We'll add some devices next.
Click "Add device"
|
“Add device” tool button
|
Add device
|
|
This panel shows you all the devices the system knows
about. You can search and filter at the top, or scroll to browse.
Pick some devices to add to your network by pressing + or
dragging the item onto the map. Include some devices you'd use at front of
house and some you'd use on stage. Here's some ideas:
- A sound desk, like Behringer X32.
- A lighting desk, like ETC Ion Classic.
- An sACN/ArtNet node, like Luminex Luminode 12.
- A stage box, like DiGiCo A168D.
Once you've added all the devices you want, press
"Next" to continue.
|
Tool pane
|
Next
|
|
Drag the devices you've made around in the map so you can
see everything. You can also add some labels if you like.
Any network protocols supported by a device are presented
in a dropdown on the device. You can open any of these dropdowns to configure
the protocol.
|
Network map
|
Next
|
|
These dots are ports, used to connect devices and switches
together.
|
A row of dots at the bottom of one of the switch nodes
|
Next
|
|
Use your mouse to draw a cable between the ports on each
device and a port on one of the switches.
Connect all the devices at front of house to the front of
house switch, and all the devices on stage to the stage switch.
Then, connect the two switches together.
|
Network map
|
Next
|
|
Every device in our network is identified by an address,
known as an IP address. We could manually give every device an address, but
the tool can do it for us instead.
Press "IP Addressing".
|
“IP addressing” tool button
|
IP addressing
|
|
Press "Assign addresses" to assign an address to
every device in the network.
|
“Assign addresses” section of the tool pane
|
Assign addresses
|
|
The "Check design" tab lets you check your work.
Press the tab to open it.
|
“Check design” tool button
|
Check design
|
|
This tab will show a list of everything which the system
notices might be wrong in your network. It'll check if the configuration
options you've set are valid, that everything is connected up properly, and
so on.
If there's anything wrong, you can fix it now or come back
later and have a look.
|
Tool pane
|
Next
|
|
The "Advice" tab is another helper to ensure
your design works as well as possible. Press the tab to open it.
|
“Advice” tool button
|
Advice
|
|
This tool can't check everything about your design. The
Advice tab includes pointers towards anything you should check manually, or
any extra steps you should do when setting up your network.
|
Tool pane
|
Next
|
|
When it comes time to install your network, the
"Views" tab comes in handy. Press the tab to open it.
|
“Views” tool button
|
Views
|
|
These reports can be printed out and include information
about what is plugged into every switch, and the configuration you plan to do
on each device.
|
Tool pane
|
Next
|
|
Finally, the "Open and save" tab is where you
can manage your designs and share them with others. Press the tab to open it.
|
“Open and save” button
|
Open and save
|
|
Here, you can save your work, open other designs you've
made, and share your work with others.
|
Tool pane
|
Next
|
|
And that's the end of the tour. You can re-do it any time
you like from the homepage.
Press "Done" to continue experimenting with the
network we started here, or [start a new blank file], or [jump-start
a design with the design wizard].
|
None
|
Finish
|
This section includes some screenshots of representative
sections of the application, showing some screens which otherwise may not have
been included in the main body of the report.
Figure 46: Application homepage. There are two
recently-opened files available.
Figure 47: Application tour. The user is being guided to
configure a switch.
Figure 48: After creating a design, the technician is using
the "Check design" tool pane to find potential problems. A missing
configuration option is being indicated in the pane and on the input itself.
Figure 49: The Advice tool pane is giving some suggestions
on the most efficient way to configure the network.
Figure 50: The IP address report displays the address of
every device in the system in one convenient reference list. This can be
printed with the button at the top.
Figure 51: The device report includes information about
where to connect the device, setup advice, and the necessary protocol
configuration options. This can be printed with the button at the top.
Figure 52: The final step of the design wizard, where the
user is selecting which devices they would like in each location. In this
screenshot, the stage is complete and they are working on front of house. They
have filtered the list of available devices to find things which meet their
sound requirements..
Figure 53: In the data browser, information about ETC Ion
Classic is being displayed. The same layout is used in the design area when the
"info" button is pressed on a device.
Figure 54: In the data viewer, information about a protocol
is being displayed.
This is a logical schema for the database. The physical
schema you would see in the MySQL database itself will vary from this, as
Strapi generates a schema based on this higher-level specification and takes
advantage of components for repeating fields, etc. This is also where some
non-standard data types like ‘enum’ come from.
Similarly, under the ‘configOptions’ relation, there are
many fields. Under Strapi, the exact fields available will change depending on
whether the option type is set to text, number, select (dropdown), or IP
address, so only validation options which make sense for the given type are
available. Only if the option type is ‘select’ will the ability to create a
relationship with ‘selectOption’ records become available.
Figure 55: Entity-relationship diagram for the database.
These tests are informed by the project objects and
requirements, as described in section 12.1.
In the tables below, “FR” stands for functional requirement.
The numbers map to those used in section 8.3.1.
|
ID
|
FR
|
Description
|
Expected output
|
Actual output
|
Status
|
|
1.
|
1
|
Create a new device in
the administration interface.
|
The device appears in the
Explore Devices section of the main application.
|
As expected.
|
Pass
|
|
2.
|
1
|
Create a new protocol in
the administration interface.
|
The protocol appears in
the Explore Protocols section of the main application.
|
As expected.
|
Pass
|
|
3.
|
1
|
Edit an existing device
in the administration interface.
|
The changes are reflected
in the Explore Devices section of the main application.
|
As expected.
|
Pass
|
|
4.
|
1
|
Edit an existing protocol
in the administration interface.
|
The changes are reflected
in the Explore Protocols section of the main application.
|
As expected.
|
Pass
|
|
5.
|
1
|
Delete a device in the
administration interface.
|
The device disappears
from the Explore Devices section of the main application.
|
As expected.
|
Pass
|
|
6.
|
1
|
Delete a protocol in the
administration interface.
|
The protocol disappears
from the Explore Protocols section of the main application.
|
As expected.
|
Pass
|
|
7.
|
2
|
In a new design file,
drag and drop a device from the tool pane into the map area.
|
The device appears on the
map where the cursor is released.
|
As expected.
|
Pass
|
|
8.
|
2
|
In a new design file,
press the plus button on a device in the tool pane.
|
The device appears on the
map, roughly in the middle of the viewport.
|
As expected.
|
Pass
|
|
9.
|
2
|
In a new design file,
configure a switch as --
Speed: Gigabit
Switching capacity: 10000
Number of ports: 5
PoE support: Unsupported
Then add to the design with the “Add switch” button.
|
The switch appears
roughly in the centre of the design with the same settings configured.
|
As expected.
|
Pass
|
|
10.
|
2
|
As test 9, with config --
PoE support: On some ports
PoE type: PoE+
PoE budget: 42
PoE ports: 1, 2, 3
|
The PoE type, budget, and
ports options appear during configuration. When adding the switch, it appears
on the map configured appropriately.
|
As expected.
|
Pass
|
|
11.
|
2
|
As test 9, with config --
PoE support: On all ports
PoE type: Standard
PoE budget: 75
|
The PoE type, and budget
options appear during configuration. When adding the switch, it appears on
the map configured appropriately.
|
As expected.
|
Pass
|
|
12.
|
2
|
As test 9, with config --
Number of ports: 1
|
The add switch button
rejects the number of ports.
|
As expected.
|
Pass
|
|
13.
|
2
|
As test 9, with config --
Switching capacity: [blank]
|
The add switch button
rejects the blank switching capacity.
|
As expected.
|
Pass
|
|
14.
|
2
|
As test 9, with config –
Number of ports:
[blank]
|
The add switch button
rejects the blank number of ports.
|
As expected.
|
Pass
|
|
15.
|
3
|
Create two switches
configured as test 9 and add any four devices as test 7. Connect the two
switches together by drawing a line between a port on one to a port on the
other.
|
The line appears and the
switches connect.
|
As expected.
|
Pass
|
|
16.
|
3
|
Configure some devices
and switches as test 15. Connect two devices to one switch and two to the
other.
|
All four connections
appear on the map and the devices connect to the switches.
|
As expected.
|
Pass
|
|
17.
|
3
|
Configure some devices
and switches as test 15. Connect one device to another device.
|
The line does not appear.
|
As expected.
|
Pass
|
|
18.
|
4
|
Configure some devices
and switches, including connections between them, as tests 15 and 16. Ensure
each device has a protocol enabled which includes an IP address option. From
the IP addressing tool pane, press ‘Assign addresses’.
|
Each device is assigned
an IP address in the range specified in the IP addressing pane.
|
As expected.
|
Pass
|
|
19.
|
7
|
Configure some devices,
switches, and addresses as test 18. Include a device which uses a protocol
which has QoS rules. Press the Print button on the map.
|
The browser print
dialogue opens and displays the entire system map without application
toolbars.
|
As expected.
|
Pass
|
|
20.
|
7
|
Configure some devices,
switches, and addresses as test 19. Select “Quality of Service rules” from
the Views tool pane.
|
A report of the quality
of service rules from the protocols included on the map appears. When
pressing the Print button, the browser print dialogue opens and displays
report without application toolbars.
|
As expected.
|
Pass
|
|
21.
|
7
|
Configure some devices,
switches, and addresses as test 19. Select “IP addresses” from the Views tool
pane.
|
A report of the IP
addresses in use appears. Toggling the “Show unassigned addresses in the
network” checkbox hides and shows unassigned addresses. When pressing the
Print button, the browser print dialogue opens and displays report without
application toolbars.
|
As expected.
|
Pass
|
|
22.
|
7
|
Configure some devices,
switches, and addresses as test 19. Select a switch report from the Views
tool pane.
|
A report listing what is connected
to each switch port is displayed. When pressing the Print button, the browser
print dialogue opens and displays report without application toolbars.
|
As expected.
|
Pass
|
|
23.
|
7
|
Configure some devices,
switches, and addresses as test 19. Select a device report from the Views
tool pane.
|
A report including the
switch port the device is connected to, any relevant advice, and the
configuration options for all supported protocols is displayed. When pressing
the Print button, the browser print dialogue opens and displays report
without application toolbars.
|
As expected.
|
Pass
|
|
24.
|
8
|
In the Data tab, under
Devices, enter a search term into the box.
|
Items in the list of
devices are filtered down to only those which match the text entered.
|
As expected.
|
Pass
|
|
25.
|
8
|
In the Data tab, under
Protocols, enter a search term into the box.
|
Items in the list of
protocols are filtered down to only those which match the text entered.
|
As expected.
|
Pass
|
|
26.
|
8
|
In the Data tab, under
Devices, select a device.
|
In the pane on the right,
all data about that device is displayed and matches the content in the
database administrator interface.
|
As expected.
|
Pass
|
|
27.
|
8
|
In the Data tab, under
Protocols, select a device.
|
In the pane on the right,
all data about that protocol is displayed and matches the content in the
database administrator interface.
|
As expected.
|
Pass
|
This section refers to FR4
and FR5. In each case, a dummy device with a dummy protocol is added to the
application, then configured to be in the state described in the test
description.
|
ID
|
Description
|
Expected output
|
Actual output
|
Status
|
|
1.
|
Device is not connected
to any switches.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
2.
|
Switch is not connected
to another switch; there is one switch in the design.
|
No error flagged.
|
As expected.
|
Pass
|
|
3.
|
Switch is not connected
to another switch; there are 2 or more switches in the design.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
4.
|
Custom validation
function indicated a problem.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
5.
|
String option is too
long.
|
No further text can be entered
in the box.
|
As expected.
|
Pass
|
|
6.
|
String option does not
match pattern
|
Error flagged in “Check
design” tool pane and inline on the input.
|
As expected.
|
Pass
|
|
7.
|
Required string option
left blank.
|
Error flagged in “Check
design” tool pane and inline on the input.
|
As expected.
|
Pass
|
|
8.
|
String option not
globally unique.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
9.
|
Number option too small.
|
Error flagged in “Check
design” tool pane and inline on the input.
|
As expected.
|
Pass
|
|
10.
|
Number option too big.
|
Error flagged in “Check
design” tool pane and inline on the input.
|
As expected.
|
Pass
|
|
11.
|
Required number option
left blank.
|
Error flagged in “Check
design” tool pane and inline on the input.
|
As expected.
|
Pass
|
|
12.
|
IP address invalid format.
|
Error flagged in “Check
design” tool pane and inline on the input.
|
As expected.
|
Pass
|
|
13.
|
IP address outside
subnet.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
14.
|
IP address not globally
unique.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
15.
|
Too much data for switch
port based on switch speed.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
16.
|
Switching capacity at
greater than 75%.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
17.
|
Switching capacity
overloaded.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
18.
|
Device needs PoE,
connected to non-PoE switch.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
19.
|
Device needs PoE,
connected to PoE switch but a port which doesn’t support PoE.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
20.
|
Device needs PoE,
connected to PoE switch.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
21.
|
Device needs PoE,
connected to PoE port on partial-PoE switch.
|
No error flagged.
|
As expected.
|
Pass
|
|
22.
|
Device needs more PoE
than switch supports.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
|
23.
|
Switch delivering more
power than PoE budget allows.
|
Error flagged in “Check
design” tool pane.
|
As expected.
|
Pass
|
The below table is an annex from the ISO 9241 standard
document used to check conformance with the standard. According to section 9 of
the standard, conformance is achieved by “a) satisfying all the requirements;
b) identifying applicable recommendations; c) explaining why particular
recommendations are not applicable; d) stating whether or not the applicable
recommendations have been followed”. These four steps are encapsulated in this
table.
Columns “Clause/subclause” and “Requirement or
recommendation” are taken directly from the standard. The “Applicability” and “Conformance”
columns have been completed with information about this project.
23.1
Table B.10[31] —
Checklist for assessing applicability and conformity with
ISO 9241-210:2019
|
Clause/
subclause
|
Requirement or recommendation
|
Applicability
|
Conformance
|
|
Yes/No
|
Reason not
applicable
|
Yes
|
No
|
Comments
|
|
5
|
Principles of human-centred design
|
|
5.1
|
Whatever the design
process and allocation of responsibilities and roles adopted, a human-centred
approach should follow the principles listed
[in 5.1].
|
Yes
|
|
✓
|
|
The principles align with the project objectives.
|
|
5.2
|
Products, systems and
services should be designed to take account of the people who will use them
as well as other stakeholder groups including those who can be affected (directly
or indirectly) by their use.
|
Yes
|
|
✓
|
|
Using personal industry experience and formal
questionnaires the stakeholders have been consulted.
|
|
5.2
|
All relevant user and
stakeholder groups should be identified. [see also 7.2.2 a)]
|
Yes
|
|
✓
|
|
|
|
5.3
|
User involvement
should be active.
|
No
|
The project timescale is too short and pool of available
users too small for constant involvement, but users can be consulted for
requirements and evaluation of the project.
|
|
|
|
|
5.3
|
The users who are
involved should have capabilities, characteristics and experience that
reflect the range of users for whom the system is being designed. [see also 7.2.2
b)]
|
Yes
|
|
✓
|
|
Recruited from relevant departments and affiliates of the
University.
|
|
5.4
|
User-centred
evaluation should take place as part of the final acceptance of the product
to confirm that requirements have been met.
|
Yes
|
|
✓
|
|
|
|
5.5
|
Iteration should be
used to progressively eliminate uncertainty during the development of
interactive systems.
|
No
|
See 5.3, although an iterative design process is used.
|
|
|
|
|
5.6
|
The user's experience
of previous or other systems and issues such as branding and advertising
should also be considered.
|
Yes
|
|
✓
|
|
|
|
5.6
|
Users' strengths,
limitations, preferences and expectations should be taken into account when
specifying which activities are carried out by the users and which functions
are carried out by the technology.
|
Yes
|
|
✓
|
|
|
|
5.6
|
Representative users
should generally be involved in decisions related to the allocation of
function.
|
No
|
Project timescale limits level of stakeholder involvement
|
|
|
|
|
5.6
|
The human activities
resulting from the allocation of function should form a set of tasks that is meaningful
as a whole to the user.
|
Yes
|
|
✓
|
|
|
|
5.7
|
Human-centred design
teams do not have to be large but the team should be sufficiently diverse to
collaborate over design and implementation trade-off decisions at appropriate
times.
|
No
|
This is an individual
project.
|
✓
|
|
Knowledge from a
diverse offering of Computer Science modules was used throughout the project
and supported by industry experience, along with input from users and the
project supervisors.
|
|
6
|
Planning
human-centred design
|
|
6.1
|
Human-centred
design shall be planned and integrated into all phases of the product life cycle.
|
Yes
|
|
✓
|
|
Primary objective of the
project.
|
|
6.2
|
Those responsible for planning the project shall consider
the relative importance of human factors/ergonomics in the project by
evaluating:
|
|
6.2
a)
|
how
usability relates to the purpose and use of the product, system or service
|
Yes
|
|
✓
|
|
|
|
6.2
b)
|
the
levels of the various types of risk that can result from poor usability
|
Yes
|
|
✓
|
|
|
|
6.2
c)
|
the
nature of the development environment
|
Yes
|
|
✓
|
|
|
|
6.3
|
The
planning of human-centred design shall include:
|
|
6.3
a)
|
identifying
appropriate methods and resources for the activities described in Clause 7
|
Yes
|
|
✓
|
|
|
|
6.3
b)
|
defining
procedures for integrating these activities and their outputs with other
system development activities
|
Yes
|
|
✓
|
|
|
|
6.3
c)
|
identifying
the individuals and the organization(s) responsible for the human-centred
design activities and the range of skills and viewpoints they provide
|
Yes
|
|
✓
|
|
Individual project so author
solely responsible.
|
|
6.3
d)
|
developing
effective procedures for establishing feedback and communication on
human-centred design activities as they affect other design activities and “trade-offs”,
and methods for documenting outputs from these activities
|
Yes
|
|
✓
|
|
Individual project so
communication limited, but progress reported regularly to supervisor and
recorded for inclusion in this report.
|
|
6.3
e)
|
agreeing
on appropriate milestones for human-centred activities that are integrated
into the overall design and development process
|
Yes
|
|
✓
|
|
Release of user evaluation
questionnaires was included in project timeline.
|
|
6.3
f)
|
agreeing
on suitable timescales to allow iteration, use of feedback and possible
design changes to be incorporated into the project schedule
|
Yes
|
|
|
✓
|
External deadline limits the
ability to incorporate user evaluation into the artefact, but evaluation can
be used to inform future work.
|
|
6.4
|
The
plan for human-centred design shall form part of the overall system
development project plan.
|
Yes
|
|
✓
|
|
|
|
6.4
|
To ensure that it is followed
through and implemented effectively, the plan for human-centred design should
be subject to the same project disciplines (e.g. responsibilities, change
control) as other key activities.
|
Yes
|
|
✓
|
|
|
|
6.5
|
Project planning shall
allocate time and resources to the human-centred activities.
|
Yes
|
|
✓
|
|
|
|
6.5
|
[The plan] shall
include time for iteration and the incorporation of user feedback, and for
evaluating whether the design solution satisfies the user requirements.
|
Yes
|
|
|
✓
|
External deadline limits the ability to incorporate user
evaluation into the artefact, but evaluation can be used to inform future
work.
|
|
6.5
|
Additional time should
be allocated to communication among design team participants and to
reconciling potential conflicts and trade-offs that involve human–system
issues.
|
No
|
External deadline imposed restricting available time.
|
|
|
|
|
6.5
|
Human-centred design
activities should start at the earliest stage of the project.
|
Yes
|
|
✓
|
|
|
|
6.5
|
The human-centred
design aspects of the project plan should be reviewed throughout the life of
the project.
|
Yes
|
|
✓
|
|
|
|
7
|
Human-centred
design activities
|
|
7.1
|
There are four linked human-centred design activities
that shall take place during the design of any interactive system:
|
|
7.1 a)
|
Understanding and
specifying the context of use
|
Yes
|
|
✓
|
|
|
|
7.1 b)
|
Specifying the user
requirements
|
Yes
|
|
✓
|
|
|
|
7.1 c)
|
Producing design
solutions
|
Yes
|
|
✓
|
|
|
|
7.1 d)
|
Evaluating the design
|
Yes
|
|
✓
|
|
|
|
7.1
|
Human-centred design
activities should be incorporated in the organization’s design approach(es)
for projects.
|
Yes
|
|
✓
|
|
|
|
7.2.2
|
The context of use
description shall include the following:
|
Yes
|
|
|
|
|
|
7.2.2 a)
|
Relevant groups shall
be identified and their relationship with the proposed development described
in terms of key goals and constraints.
|
Yes
|
|
✓
|
|
|
|
7.2.2 b)
|
Relevant
characteristics of the users shall be identified.
|
Yes
|
|
✓
|
|
|
|
7.2.2 b)
|
If necessary, the characteristics
of different types of users should be defined.
|
Yes
|
|
✓
|
|
|
|
7.2.2 b)
|
In order to achieve
accessibility, products, systems and services should be designed to be used
by people with the widest range of capabilities in intended user populations.
|
Yes
|
|
✓
|
|
This has not been fully tested.
|
|
7.2.2 c)
|
The characteristics of
tasks that can influence usability and accessibility shall be described.
|
Yes
|
|
✓
|
|
|
|
7.2.2 c)
|
Any potential adverse
consequences for health and safety should be identified.
|
Yes
|
|
✓
|
|
|
|
7.2.2 c)
|
If there is a risk
that the task can be completed incorrectly, this should be identified.
|
Yes
|
|
✓
|
|
|
|
7.2.2 c)
|
Tasks should not be
described solely in terms of the functions or features provided by a product
or system.
|
Yes
|
|
✓
|
|
|
|
7.2.2 d)
|
The technical
environment, including the hardware, software and materials, shall be
identified.
|
Yes
|
|
✓
|
|
Included in
non-functional requirements.
|
|
7.2.2 d)
|
The relevant
characteristics of the physical, social , organizational and cultural
environment shall be described.
|
Yes
|
|
✓
|
|
Included in personas.
|
|
7.2.3
|
The context of use of
the system should be described in sufficient detail to support the requirements,
design and evaluation activities.
|
Yes
|
|
✓
|
|
|
|
7.2.4
|
The intended context
of use should be specified as part of the user requirements specification to
clearly identify the conditions under which the requirements apply.
|
Yes
|
|
✓
|
|
|
|
7.3.1
|
Identifying user needs
and specifying the functional and other requirements for the product or
system shall be extended to create an explicit statement of user requirements
in relation to the intended context of use and the business objectives of the
system.
|
Yes
|
|
✓
|
|
|
|
7.3.1
|
If it is known that
the proposed interactive system will affect organizational practice, the
development process should involve organizational stakeholders in the design
process with the aim of optimizing both the organizational and technical
systems.
|
No
|
Not relevant.
|
|
|
|
|
7.3.2
|
User and other
stakeholder needs should be identified, taking account of the context of use.
|
Yes
|
|
✓
|
|
Requirements survey.
|
|
7.3.2
|
User and other
stakeholder needs should include that which users need to achieve (rather
than how to achieve it) and any constraints imposed by the context of use.
|
Yes
|
|
✓
|
|
|
|
7.3.3
|
The specification of user requirements shall include:
|
|
7.3.3 a)
|
the intended context
of use
|
Yes
|
|
✓
|
|
|
|
7.3.3 b)
|
requirements derived
from user needs and the context of use
|
Yes
|
|
✓
|
|
|
|
7.3.3 c)
|
requirements arising
from relevant ergonomics and user interface knowledge, standards and
guidelines
|
Yes
|
|
✓
|
|
Nielsen’s heuristics.
|
|
7.3.3 d)
|
usability requirements
and objectives including measurable usability performance and satisfaction
criteria in specific contexts of use
|
Yes
|
|
|
|
Partial conformance:
Users will self-rate their confidence and happiness working with the tool
compared to not, but ability to measure usability performance limited by
timescale.
|
|
7.3.3 e)
|
requirements derived
from organizational requirements that directly affect the user
|
No
|
Not relevant.
|
|
|
|
|
7.3.4
|
Potential conflicts
between user requirements should be resolved.
|
Yes
|
|
✓
|
|
|
|
7.3.4
|
The rationales, the
factors and the weighting of human–system issues for use in any trade-offs
should be documented so that they can be understood in the future.
|
Yes
|
|
✓
|
|
|
|
7.3.5
|
The user requirements specification should be:
|
|
7.3.5 a)
|
stated in terms that
permit subsequent testing
|
Yes
|
|
✓
|
|
|
|
7.3.5 b)
|
verified by the
relevant stakeholders
|
No
|
Project timescale limits level of stakeholder
involvement.
|
|
|
|
|
7.3.5 c)
|
internally consistent
|
Yes
|
|
✓
|
|
|
|
7.3.5 d)
|
updated as necessary
during the life of the project
|
Yes
|
|
✓
|
|
|
|
7.4.1
|
Producing design solutions should include the following
sub-activities:
|
|
7.4.1 a)
|
designing user tasks,
user-system interaction and user interface to meet the user requirements,
taking into consideration the overall user experience
|
Yes
|
|
✓
|
|
As described in
report.
|
|
7.4.1 b)
|
making the design
solutions more concrete
|
Yes
|
|
✓
|
|
Through prototyping.
|
|
7.4.1 c)
|
altering the design
solutions in response to user-centred evaluation and feedback
|
No
|
Project timescale limits level of stakeholder
involvement, although recommendations made in evaluation.
|
|
|
|
|
7.4.1 d)
|
communicating the
design solutions to those responsible for their implementation
|
No
|
Not relevant: individual project.
|
|
|
|
|
7.4.2.1
|
The following principles (taken
from ISO 9241-110) should be taken into account when designing interactive
systems:
|
|
7.4.2.1 a)
|
suitability for the
task
|
Yes
|
|
✓
|
|
|
|
7.4.2.1 b)
|
self-descriptiveness
|
Yes
|
|
✓
|
|
|
|
7.4.2.1 c)
|
conformity with user expectations
|
Yes
|
|
✓
|
|
|
|
7.4.2.1 d)
|
suitability for
learning
|
Yes
|
|
✓
|
|
|
|
7.4.2.1 e)
|
controllability
|
Yes
|
|
✓
|
|
|
|
7.4.2.1 f)
|
error tolerance
|
Yes
|
|
✓
|
|
|
|
7.4.2.1 g)
|
suitability for
individualization
|
Yes
|
|
✓
|
|
|
|
7.4.2.2
|
Designing the interaction should include:
|
|
7.4.2.2 a)
|
making high-level
decisions
|
Yes
|
|
✓
|
|
|
|
7.4.2.2 b)
|
identifying tasks and
sub-tasks
|
Yes
|
|
✓
|
|
|
|
7.4.2.2 c)
|
allocating tasks and
sub-tasks to user and other parts of system
|
Yes
|
|
✓
|
|
|
|
7.4.2.2 d)
|
identifying the
interaction objects required for the completion of the tasks
|
Yes
|
|
✓
|
|
|
|
7.4.2.2 e)
|
identifying
appropriate dialogue techniques
|
Yes
|
|
✓
|
|
|
|
7.4.2.2 f)
|
designing the sequence
and timing (dynamics) of the interaction
|
Yes
|
|
✓
|
|
|
|
7.4.2.2 g)
|
designing the
information architecture of the user interface of an interactive system to
allow efficient access to interaction objects
|
Yes
|
|
✓
|
|
|
|
7.4.2.3
|
Ergonomics and user
interface knowledge, standards and guidelines should be used to inform the
design of both hardware and software of the user interface.
|
Yes
|
|
✓
|
|
|
|
7.4.3
|
The level of detail
and realism [of prototypes] should be appropriate to the issues that need to
be investigated.
|
Yes
|
|
✓
|
|
|
|
7.4.4
|
Feedback from
evaluation should be used to improve and refine the system.
|
No
|
Project timescale limits level of stakeholder
involvement, although recommendations made in evaluation.
|
|
|
|
|
7.4.4
|
The costs and benefits
of proposed changes should be evaluated and used to inform decisions about
what will be modified.
|
Yes
|
|
✓
|
|
|
|
7.4.5
|
There should be some
sustained channel of communication between those responsible for
human-centred design and other members of the project team.
|
No
|
Not relevant:
individual project.
|
|
|
|
|
7.4.5
|
When design solutions
are communicated, they should be accompanied by an explanation and
justification of the design decisions, especially where trade-offs are
necessary
|
Yes
|
|
✓
|
|
|
|
7.4.5
|
The communication [of
details of the design] should take account of the constraints imposed by the
project and the project team's knowledge and understanding about ergonomics
and user interface design.
|
Yes
|
|
✓
|
|
|
|
7.5.1
|
User-centred
evaluation (evaluation based on the user's perspective) is a required
activity in human-centred design.
|
Yes
|
|
✓
|
|
|
|
7.5.1
|
Even at the earliest
stages in the project, design concepts should be evaluated to obtain a better
understanding of user needs.
|
Yes
|
|
✓
|
|
|
|
7.5.1
|
If user-based testing
is not practical or cost-effective at a particular stage of a project, design
solutions should be evaluated in other ways.
|
Yes
|
|
✓
|
|
Tightly-coupled design
and implementation allowing prototypes to be tested by the developer using
industry knowledge.
|
|
7.5.2
|
User-centred evaluation should involve:
|
|
7.5.2 a)
|
allocating resources
both for obtaining early feedback to improve the product, and later for determining
if requirements have been satisfied
|
No
|
Project timescale
limits level of stakeholder involvement, although recommendations made in
evaluation.
|
|
|
|
|
7.5.2 b)
|
planning the
user-centred evaluation so that it fits the project schedule
|
Yes
|
User evaluation
included in project evaluation but not implemented due to limitation of
schedule.
|
✓
|
|
|
|
7.5.2 c)
|
carrying out
sufficiently comprehensive testing to give meaningful results for the system
as a whole
|
Yes
|
|
✓
|
|
|
|
7.5.2 d)
|
analysing the results,
prioritizing issues and proposing solutions
|
Yes
|
|
✓
|
|
|
|
7.5.2 e)
|
communicating the
solutions appropriately so that they can be used effectively by the design
team
|
Yes
|
|
✓
|
|
|
|
7.5.3
|
To obtain valid
results, the evaluation should be carried out by experienced evaluators.
|
Yes
|
Evaluation guided by
experienced project supervisor.
|
✓
|
|
|
|
7.5.3
|
To obtain valid
results, the evaluation should use appropriate methods.
|
Yes
|
|
✓
|
|
|
|
7.5.3
|
The extent of the
latter (summative) evaluation should depend on the extent of the risks
associated with not meeting requirements.
|
Yes
|
|
✓
|
|
|
|
7.5.4
|
When prototypes are
being tested, users should carry out tasks using the prototype rather than
just be shown demonstrations or a preview of the design.
|
Yes
|
|
✓
|
|
Users asked to build a
system of their own accord.
|
|
7.5.6
|
A human-centred design
process should include long-term monitoring of the use of the product, system
or service.
|
No
|
Project is short-term.
|
|
|
|
|
7.5.6
|
Criteria and
measurements [for long-term monitoring] should be sensitive enough to
identify system failure, or system problems, as early as possible.
|
No
|
Project is short-term.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
